waterproof push button switch 12v momentary

Short Description:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary type

Send email to us Send email to us

Product Detail

Product Tags

Specification:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO

Head shape: High head Hole size: 16mm

Product Name	Push button switch
Model	YL16C-A10G
Mounting Hole	16mm
Operation Type	Momentary
Switch Combination	1NO
Head Type	High head
Terminal type	Terminal
Enclosure Material	Brass nickel
Delivery Days	3-7 days after payment received
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C
Wire Connector / Wire soldering	Acceptable and with fast shipping
Accessories	Nut, Rubber ,Waterproof O-ring

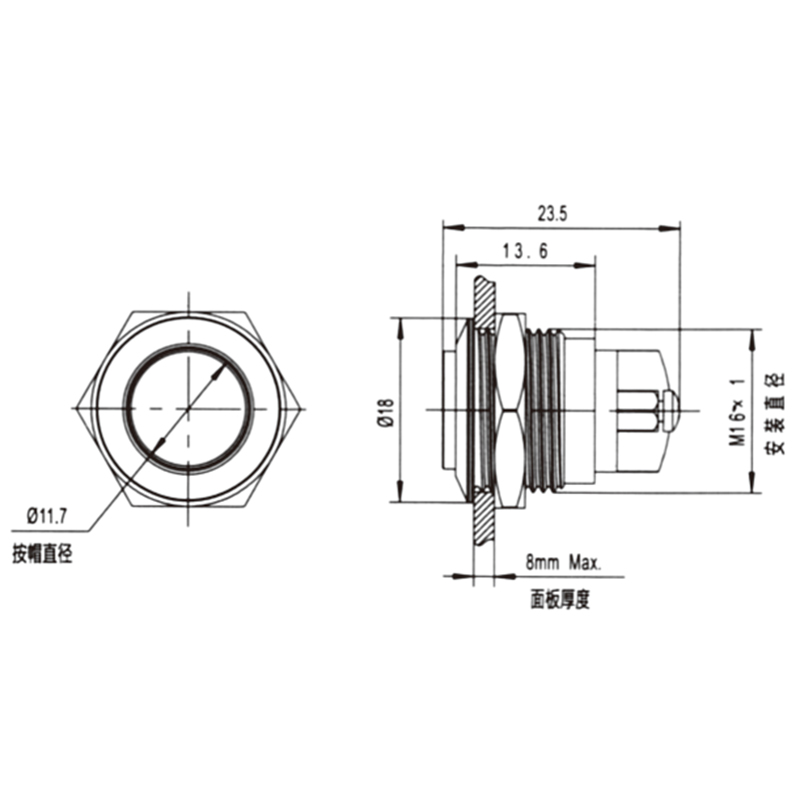

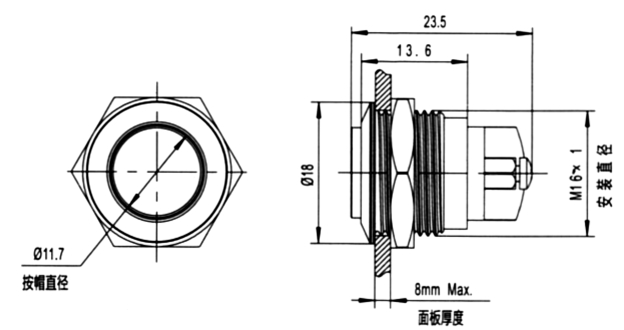

Drawing

Product introduction: Metal push button switches with IP-rated sealing are ideal for use in harsh industrial environments and outdoor enclosures, providing reliability in extreme conditions.

Application : Harsh Environments: These switches are commonly used in manufacturing plants, chemical processing facilities, and outdoor control systems where resistance to moisture, chemicals, and physical shock is critical to reliable operation.
