waterproof automotive switch
Specification:
Product name: waterproof automotive switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-B11PEZ |
| Mounting Hole | 22mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

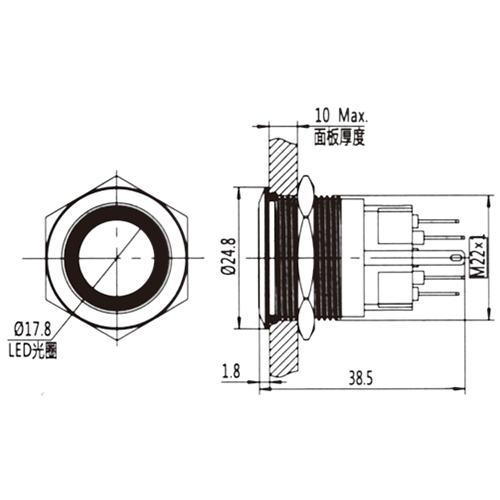

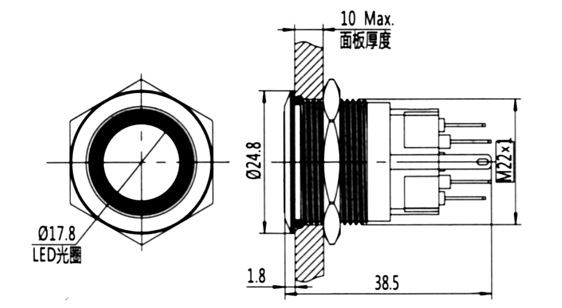

Drawing
Product features : Metal push button switches are made of high-quality metal materials and have excellent durability and service life in various industrial and commercial environments. Its rugged construction ensures reliable performance even in harsh conditions, making it suitable for equipment and machinery requiring heavy-duty control components.
Application one: Industrial Machinery Controls: Metal push button switches are commonly used in industrial machinery control panels, providing a reliable and durable interface for operators to start and stop specific equipment functions. Its rugged construction and responsive drive make it ideal for heavy machinery operations in manufacturing facilities and production lines.
