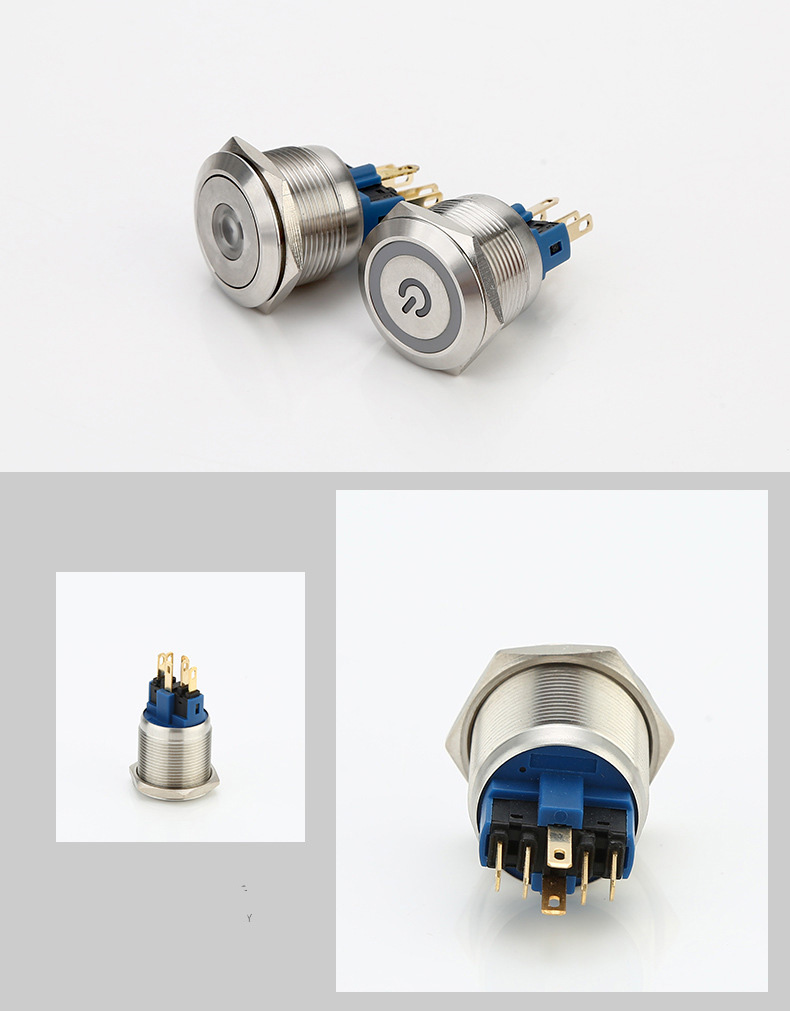

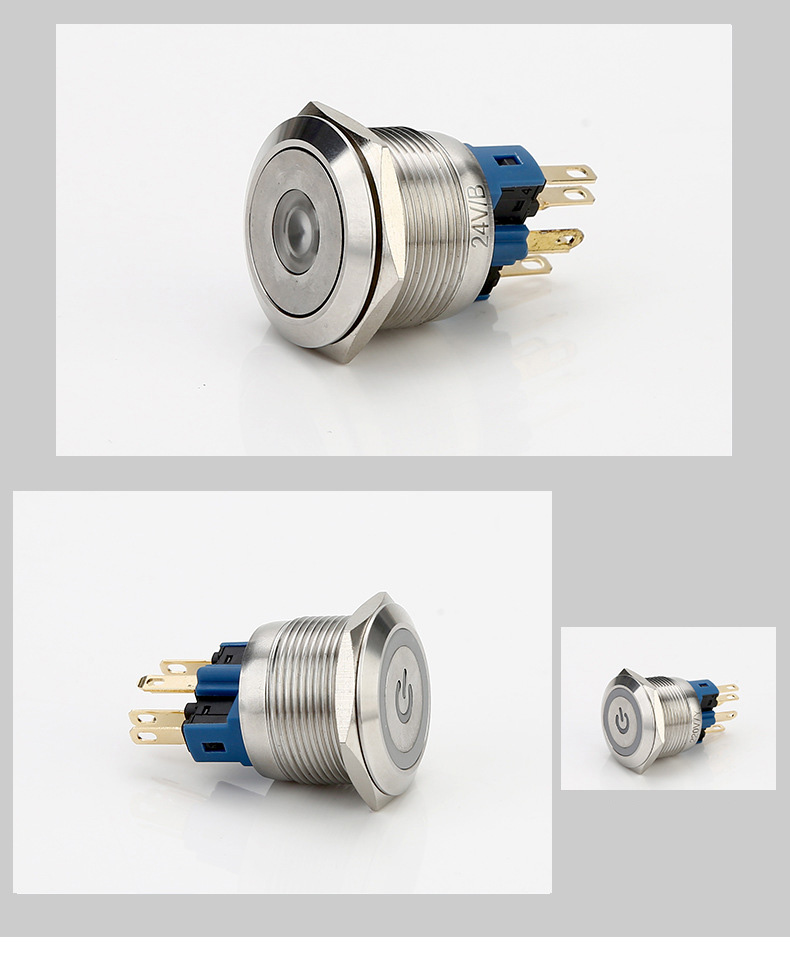

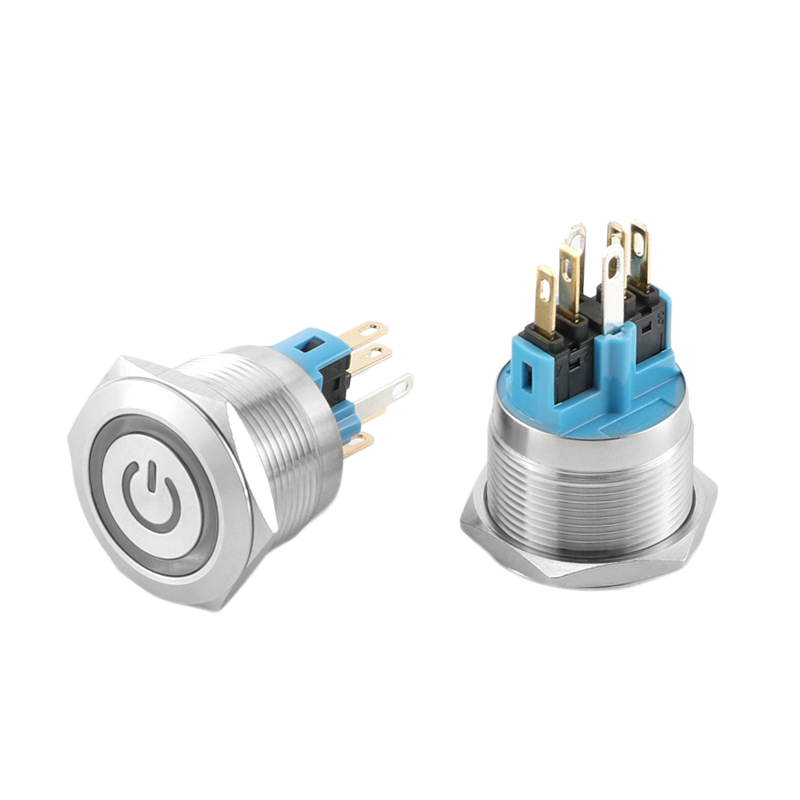

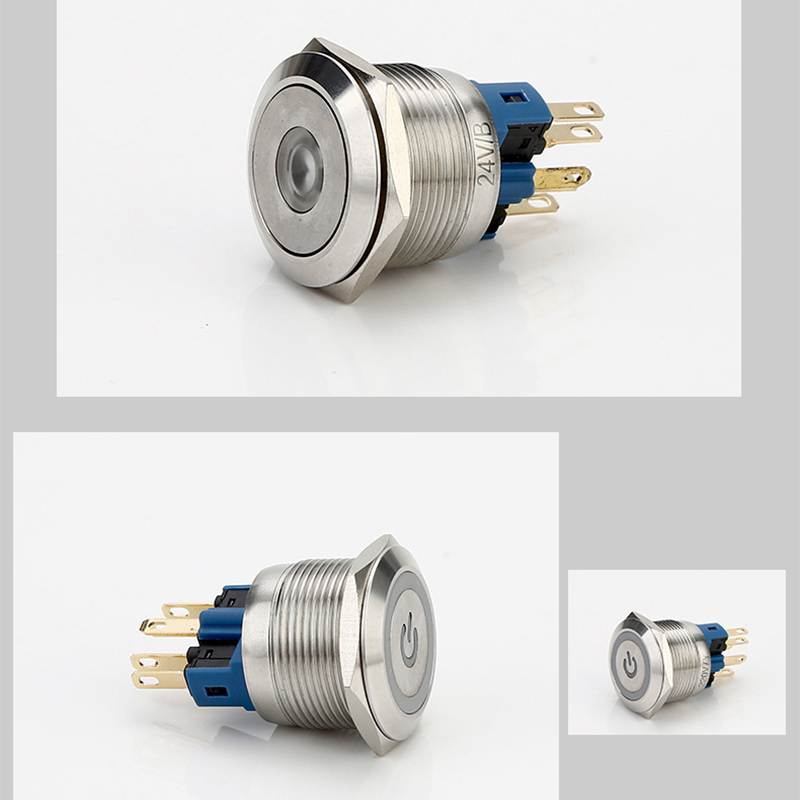

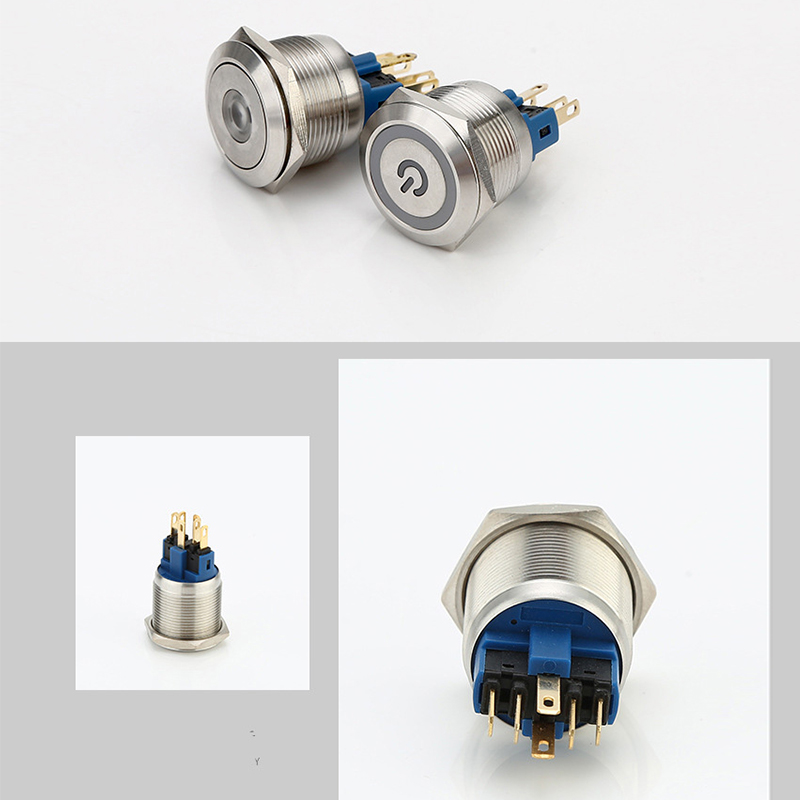

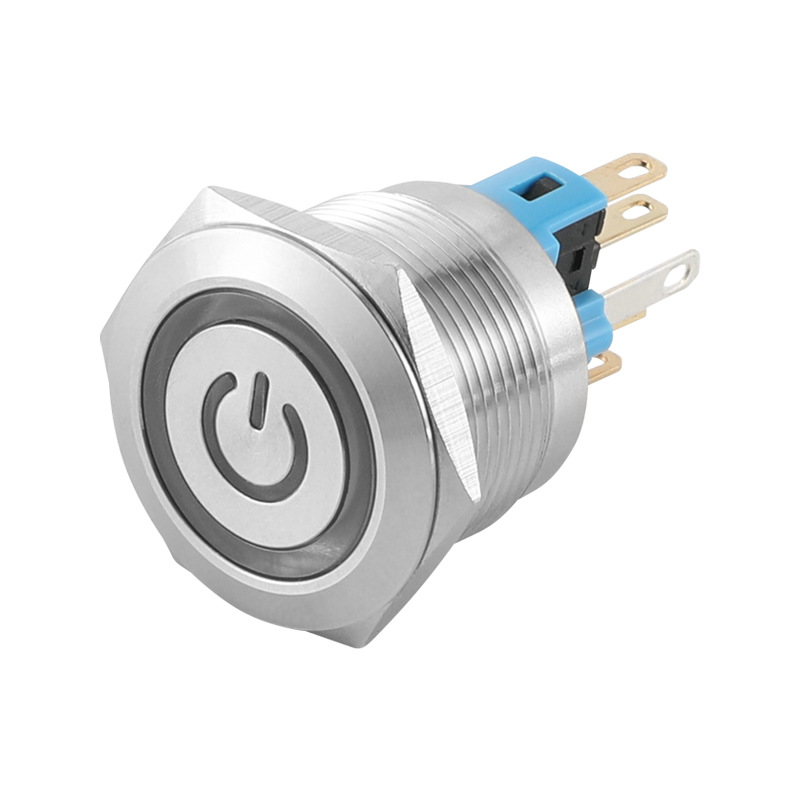

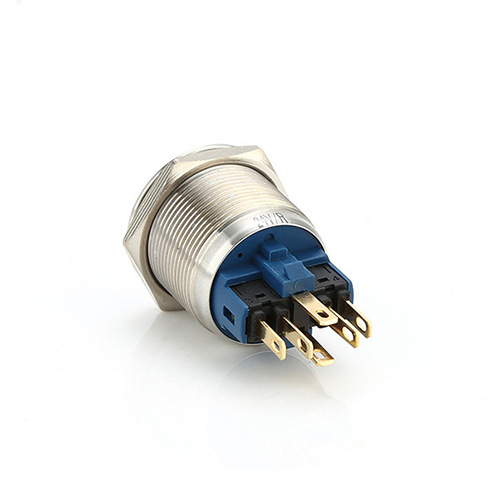

stainless steel latching push button switch

Short Description:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

Operation Type: Latching type push it-on, push again it-off Switch

Send email to us Send email to us

Product Detail

Product Tags

Specification:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: Blue White Yellow Red Green Orange

Operation Type: Latching type push it-on, push again it-off Switch

Rating: 5A/250VAC LED

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: High head Hole size: 22mm

Product Name	Push button switch
Model	YL22C-B11PCZ
Mounting Hole	22mm
Operation Type	latching
Switch Combination	1NO1NC
Head Type	High head
Terminal type	Terminal
Enclosure Material	Brass nickel
Delivery Days	3-7 days after payment received
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C
Wire Connector / Wire soldering	Acceptable and with fast shipping
Accessories	Nut, Rubber ,Waterproof O-ring

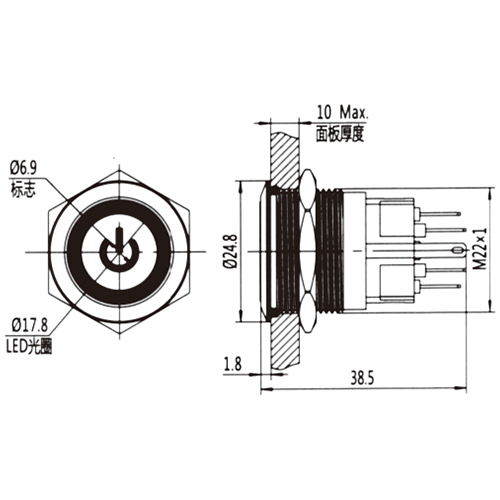

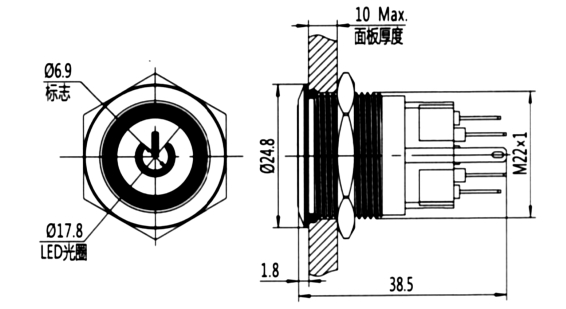

Drawing

Product introduction : This heavy-duty metal push button switch is designed to withstand high current applications, making it suitable for power distribution and industrial power control systems.

Application : Power Distribution: These switches are commonly used in power generation facilities, substations, and industrial power plants for high current switching and circuit protection
