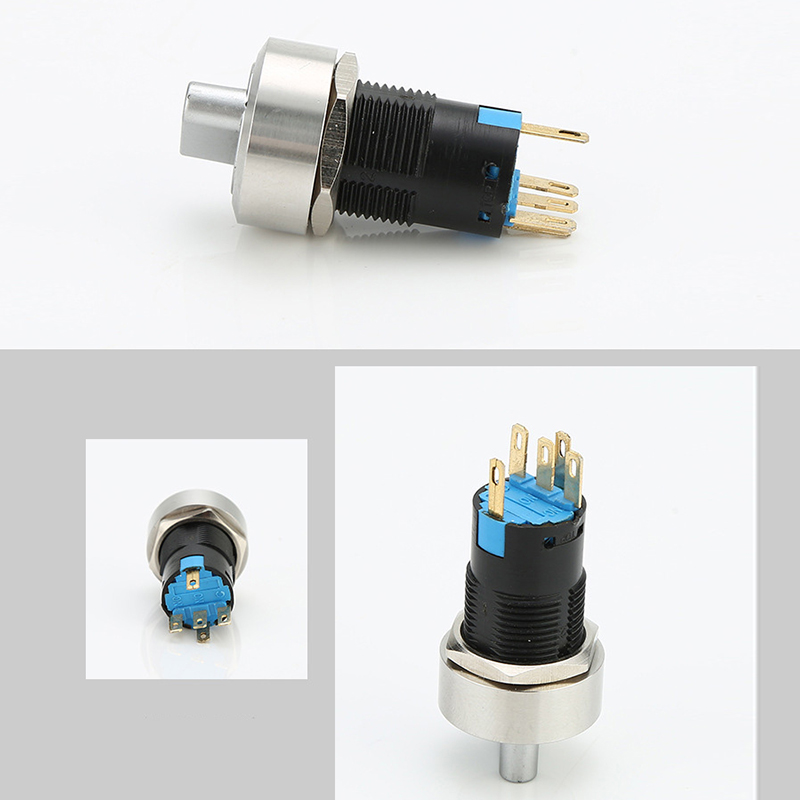

Rotary metal push button switches
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Rotary metal push button switches
Material: Brass nickel plated / Stainless steel
LED color:NO
Operation Type:Momentary latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Hight head Hole size: 19mm
| Product Name | Push button switch |

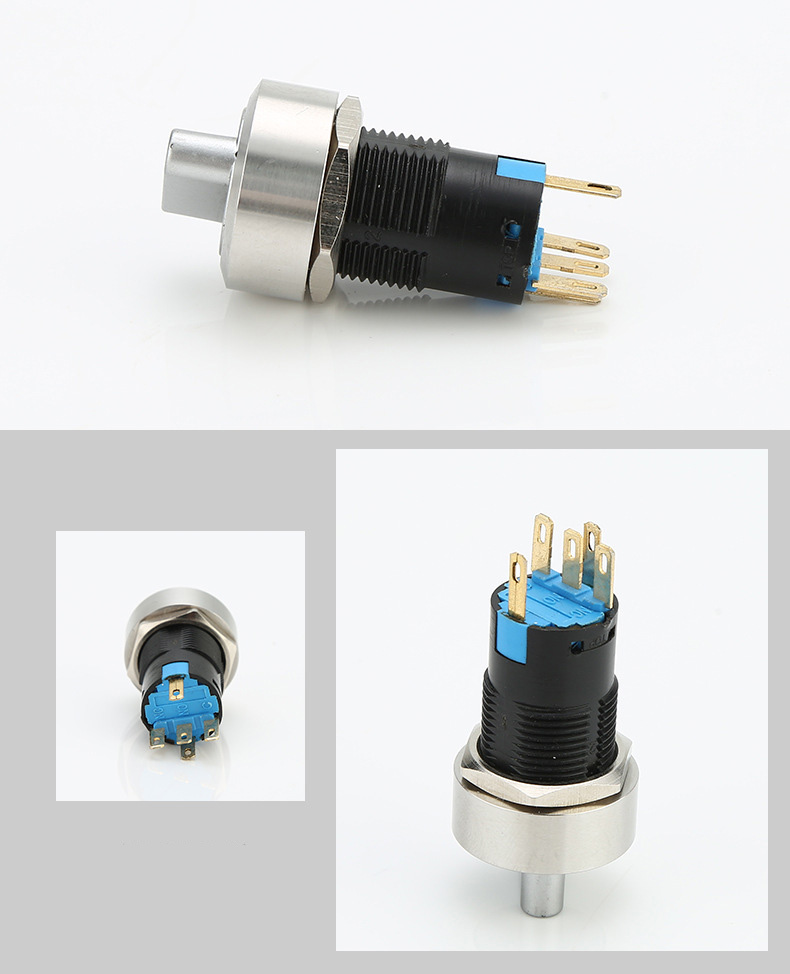

| Model | YL19C-P11XE |
| Mounting Hole | 19mm |
| Operation Type | Momentary Latching |
| Switch Combination | 1NO1NC |
| Head Type | HIGH head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

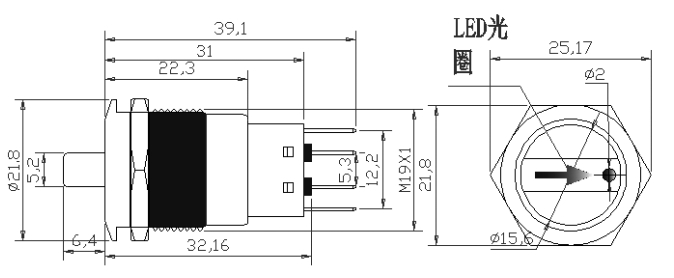

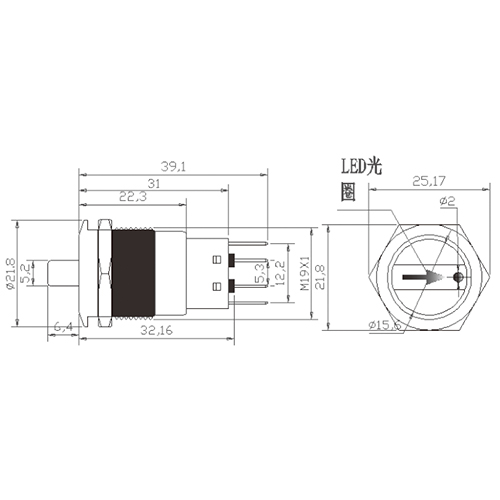

Drawing

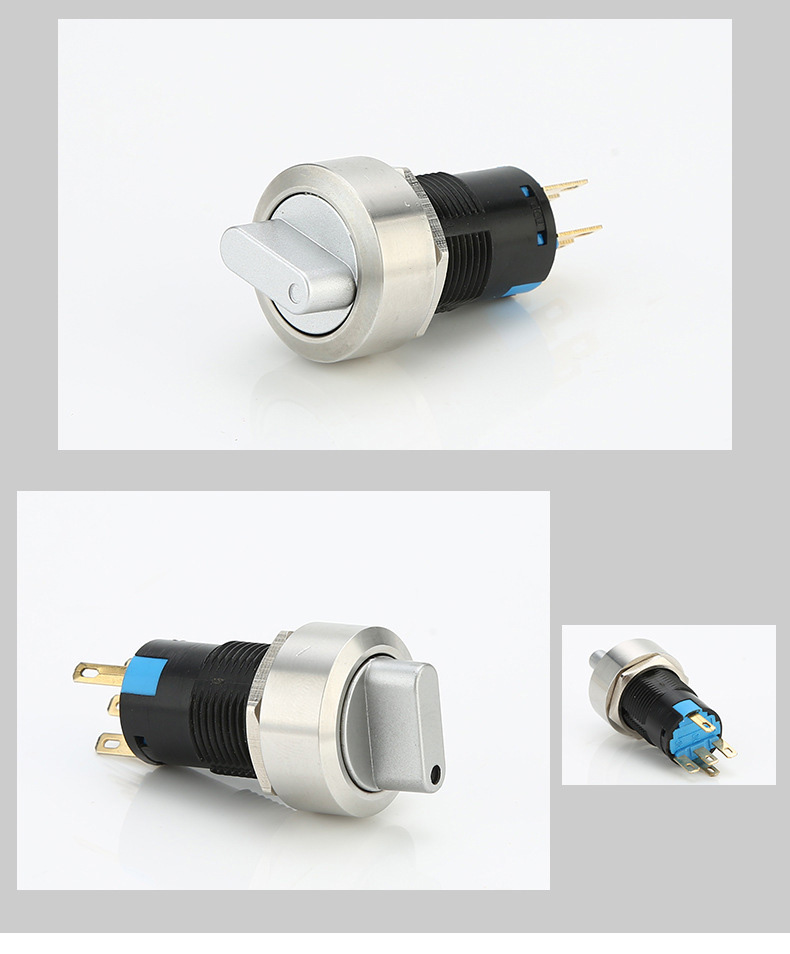

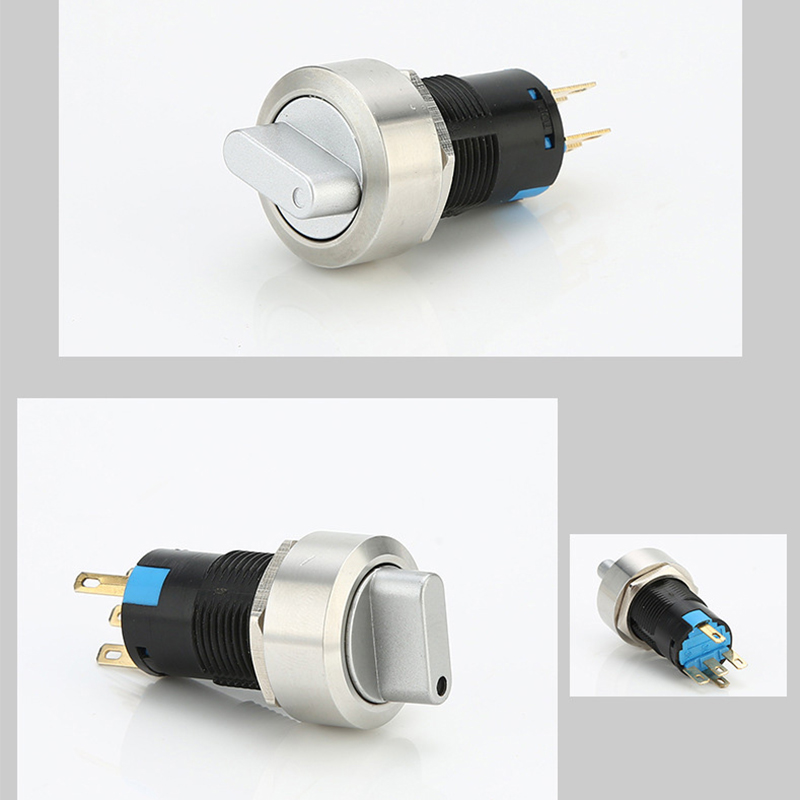

Product introduction : Rotary metal push button switches provide a rugged and reliable solution for a variety of applications. The switch features a durable metal construction and knob design that provides enhanced tactile feedback and precise control. It is ideally suited for use in industrial automation control panels, allowing operators to efficiently manage machine operations and settings with confidence.
Application : Industrial Automation Control Panels: Rotary metal pushbutton switches are often integrated into the control panels of industrial automation systems, allowing operators to interact with machinery and equipment by adjusting parameters, selecting modes, and executing specific commands with ease and precision.
