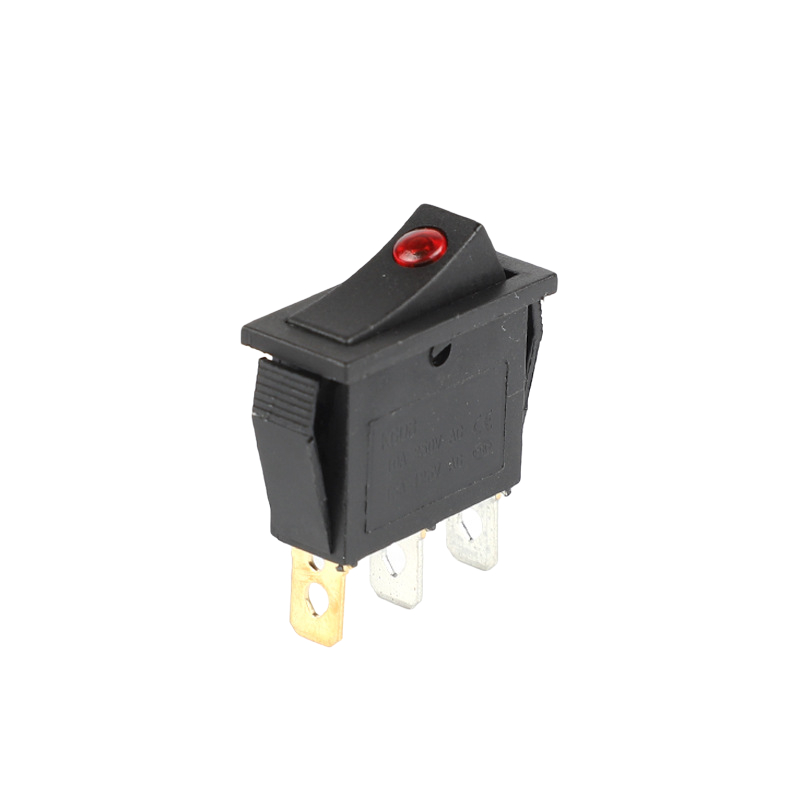

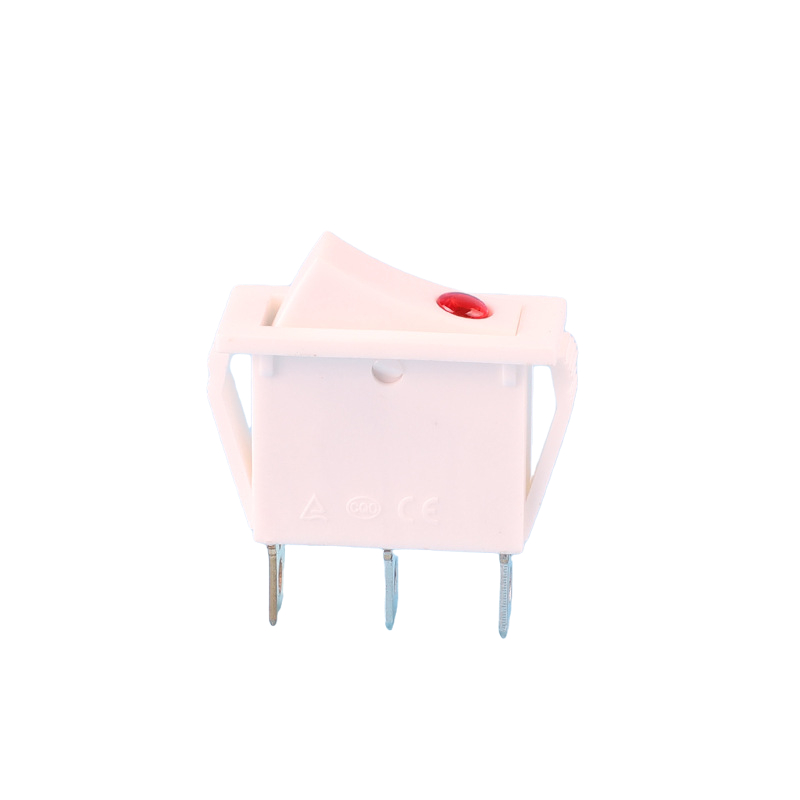

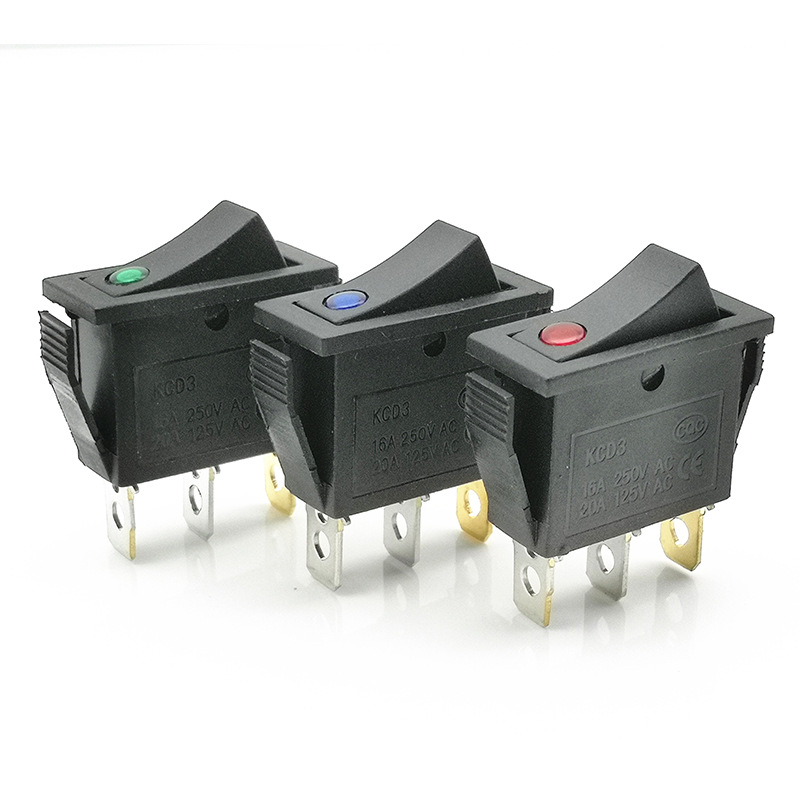

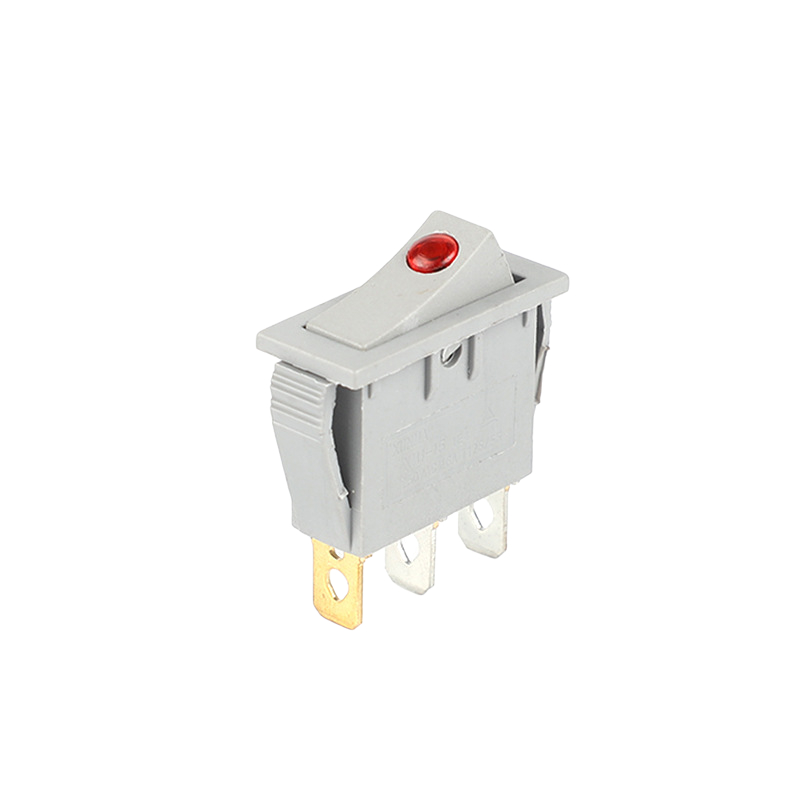

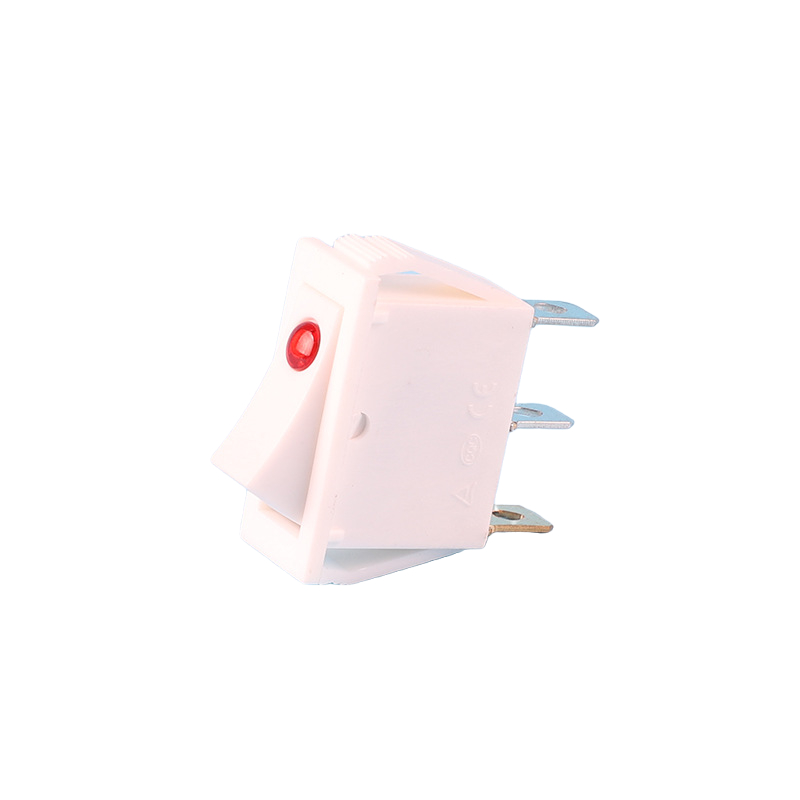

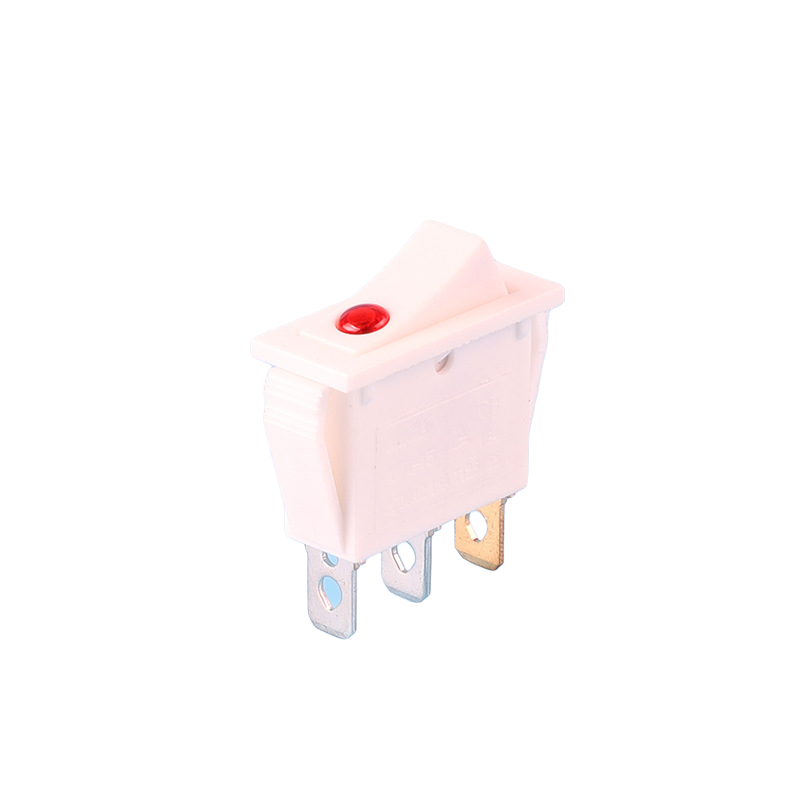

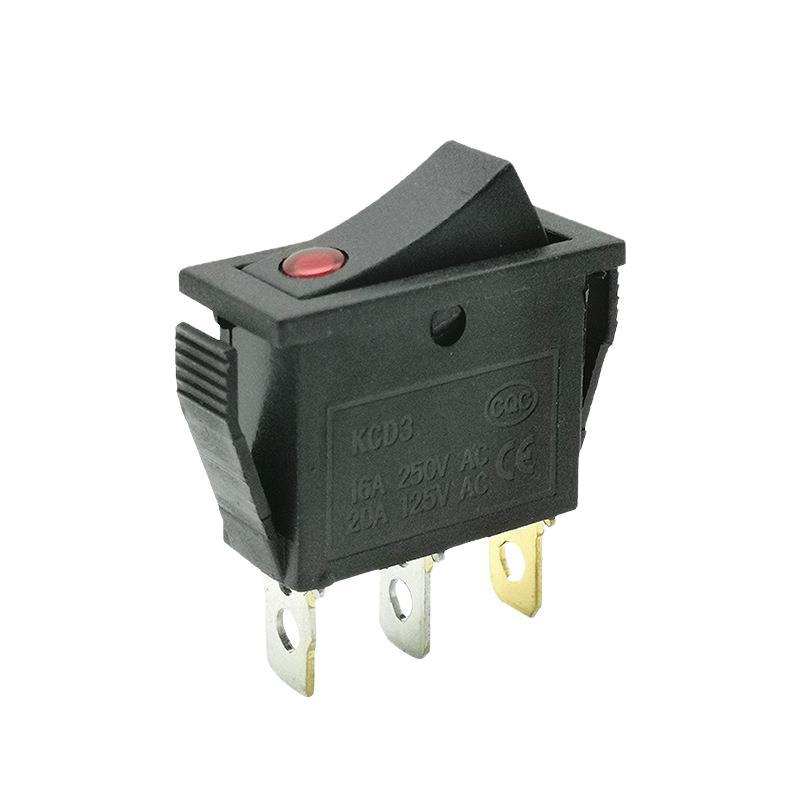

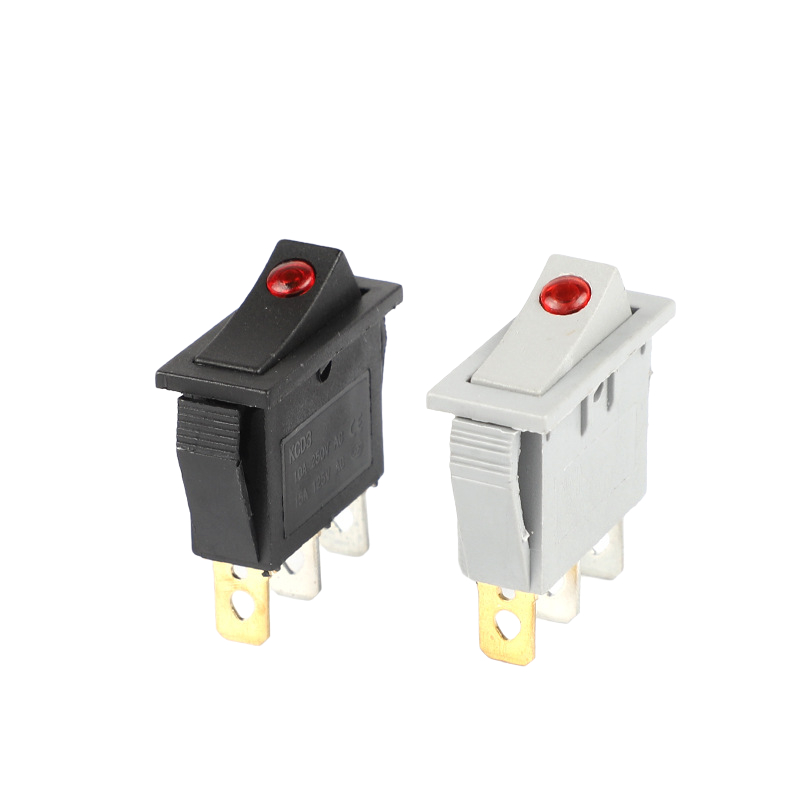

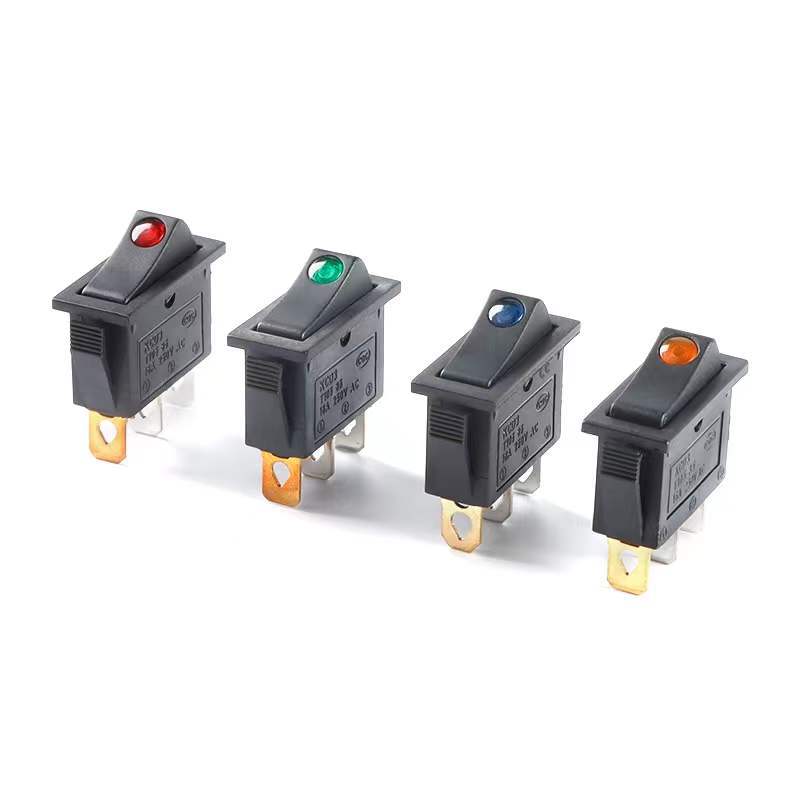

rocker switch diagram DENO LED Switch 3 pins ON-OFF Rocker Switch 12V led rocker switch with dot

Circuit:

Type of switch

SPST: 1 moving contact and 1 stationary contact. only 1 channel

SPDT: 1 moving contact and 2 static contacts, (the static contacts on both sides can be connected respectively)

Double pole single throw: 2 moving and 2 stationary contacts, with 2 channels

Double pole double throw: 2 moving contacts and 4 static contacts, there are 4 channels (2 static contacts on both sides can be connected respectively)

Introducing Our High Quality Rocker Switches: Rugged, Reliable, Durable

Application

 Rocker Switch for Power Tools

Product Description:

The rocker switch for power tools is designed to provide reliable control in demanding environments. Rated up to 15A, 120V AC, it is built with durable materials to withstand heavy use and rough conditions. Available in various sizes, colors, and with illumination options, it meets the specific requirements of different power tools.

Application:

Ideal for drills, saws, and sanders, this switch ensures easy operation and reliable performance. Its robust construction handles the vibrations and impacts typical in power tool use. Customizable features enhance usability and integration into tool designs, providing a cohesive look and improving operator convenience and safety.
