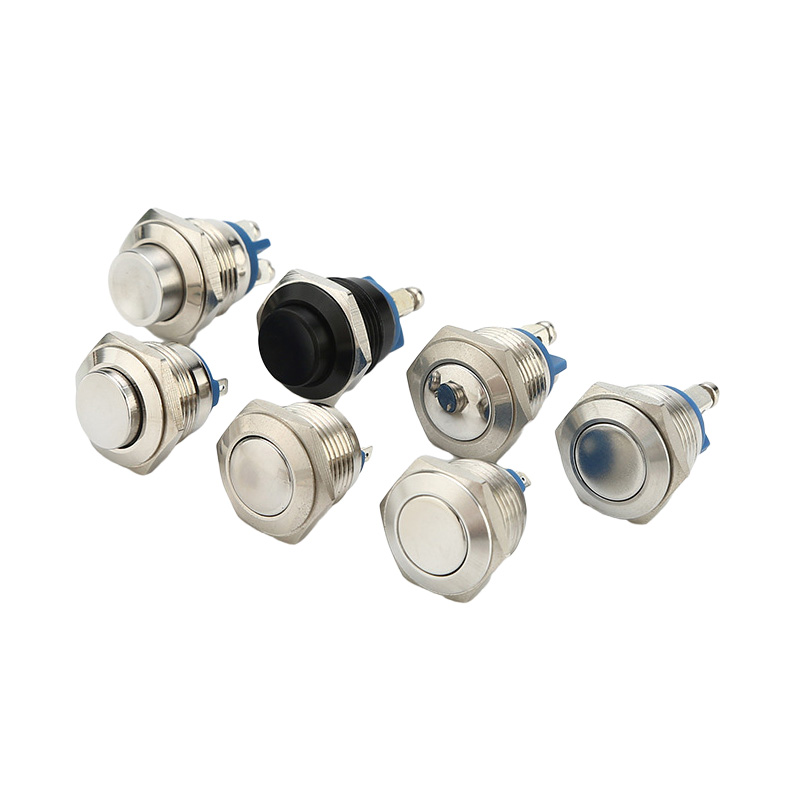

push button switch metal
Specification:

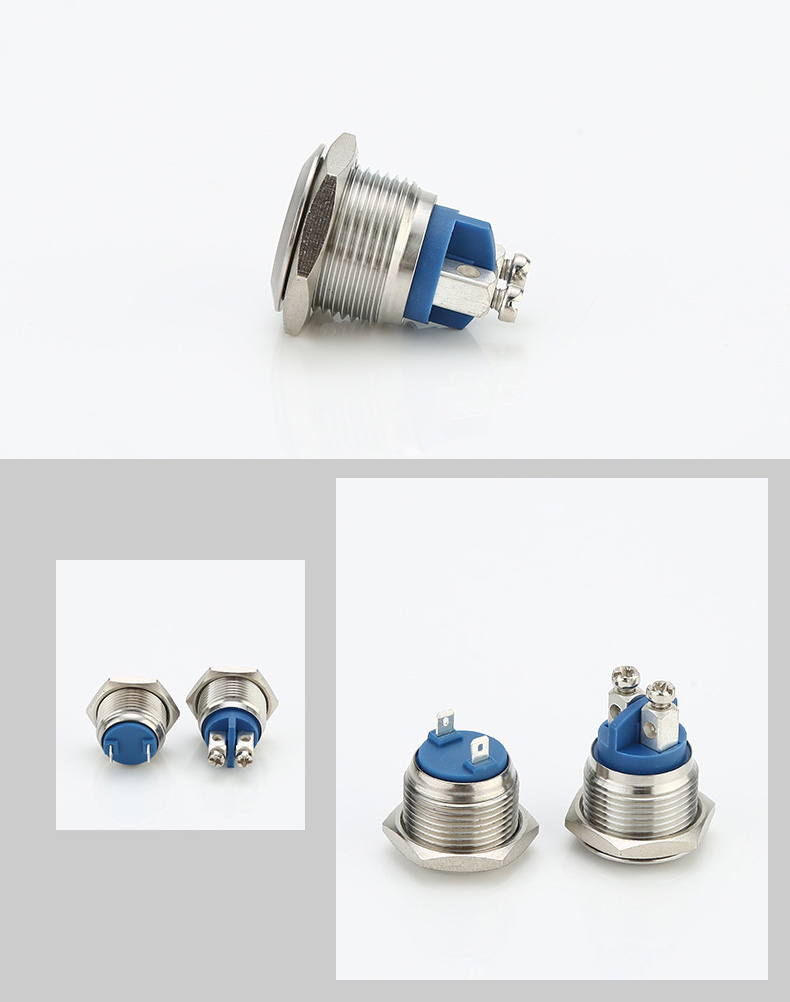

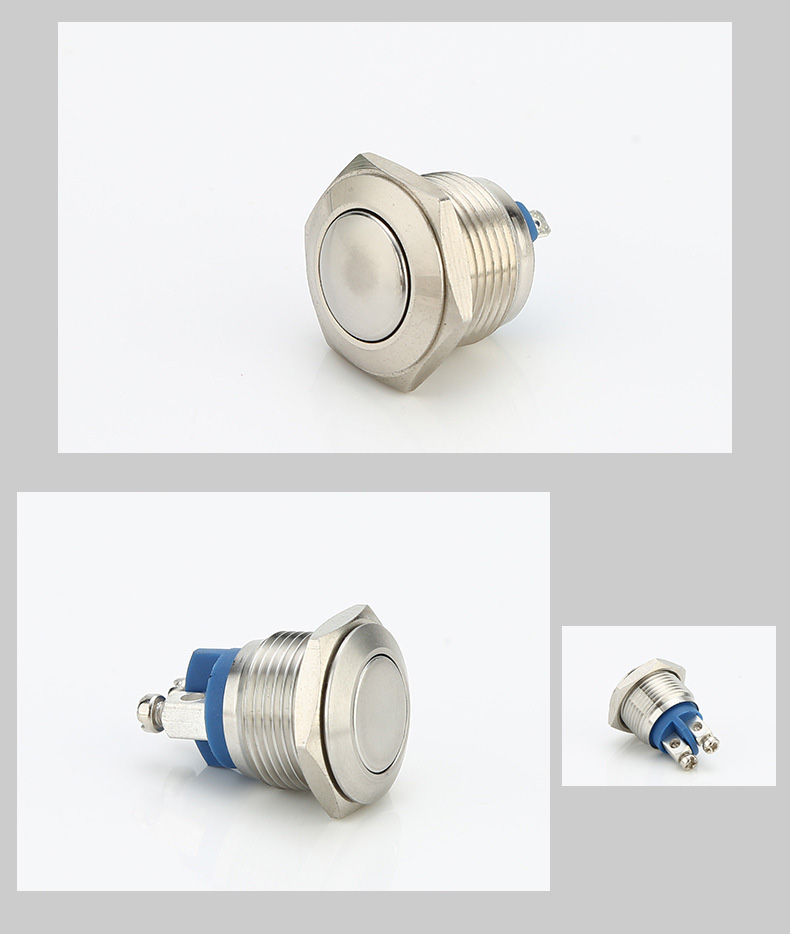

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: High head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-A10G |
| Mounting Hole | 19mm |
| Operation Type | Momentary |
| Switch Combination | 1NO |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

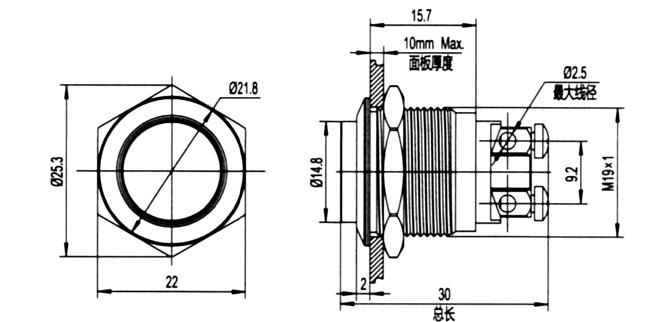

Drawing
Product introduction : Our metal push button switches with LED backlight provide excellent visibility and user feedback. They are commonly used in automotive and marine applications to provide reliable and intuitive control of vehicle instrumentation and marine navigation panels.
Application : Automotive and Marine: These switches are integrated into dashboard controls, marine steering systems and vehicle instrumentation to provide long-lasting, reliable operation in automotive and marine environments.
