Plane spherical surface with wire screw feet and welding feet two-color and three-color signal lights
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size30mm
| Product Name | Push button switch |
| Model | YL30C-XD10 |
| Mounting Hole | 30mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

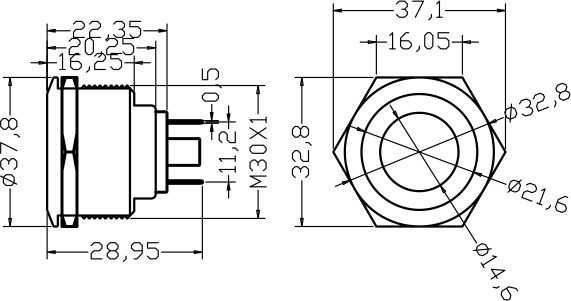

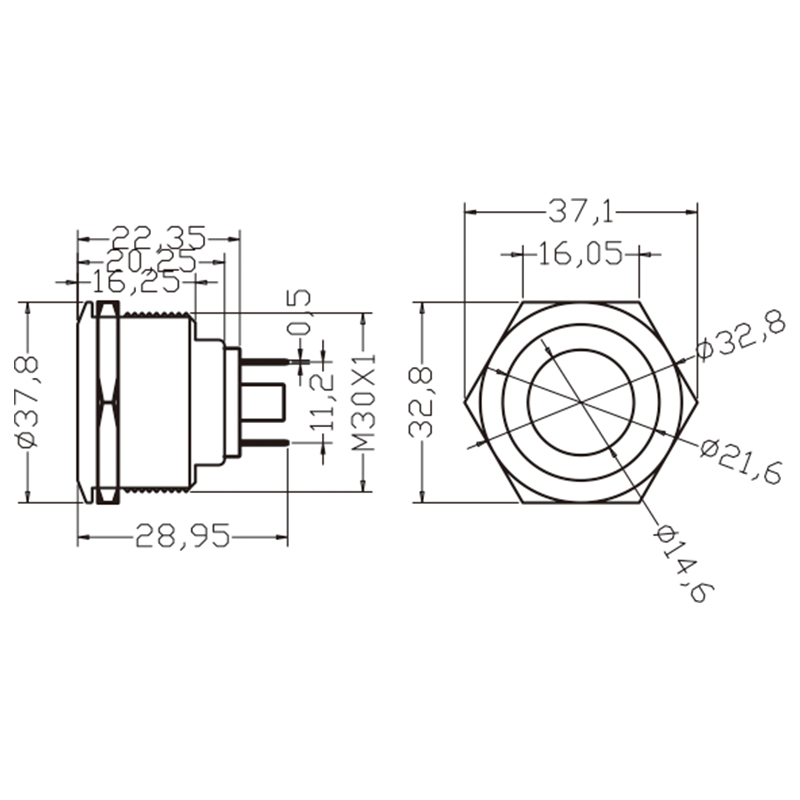

Drawing
product description: Our metal indicator lights are high-quality signaling devices designed for industrial and commercial applications. Featuring a durable metal housing, long-lasting LED technology, and customizable color options, this indicator light provides reliable visual indication in a variety of settings.
application: Machinery and Equipment: Metal indicator lights are often used in manufacturing facilities to indicate machine status, indicating whether equipment is running, idle, or requires attention. Control Panel: It is often integrated into control panels and electrical enclosures to provide clear visual feedback on different system statuses such as power availability, fault alarms and operating conditions. Automated systems: In automated processes and assembly lines, indicator lights act as visual cues for process stages, ensuring operators can easily monitor the progress and status of operations. Safety and security systems: In safety and emergency response applications, indicator lights can be used to signal alarms, warnings and safety conditions, providing important visual notification during critical situations. Automotive & Transportation: The rugged design of metal indicator lights makes them suitable for use in vehicles, signaling functions such as door open/closed status, engine alarms and system faults. Outdoor Environments: The light’s rugged construction and weather resistance make it ideal for outdoor applications such as traffic signals, outdoor machinery, and remote monitoring systems. Overall, metal indicator lights are a versatile and reliable solution that meets the visual signaling needs of a variety of industries and applications, thereby increasing safety, efficiency and operational awareness.
