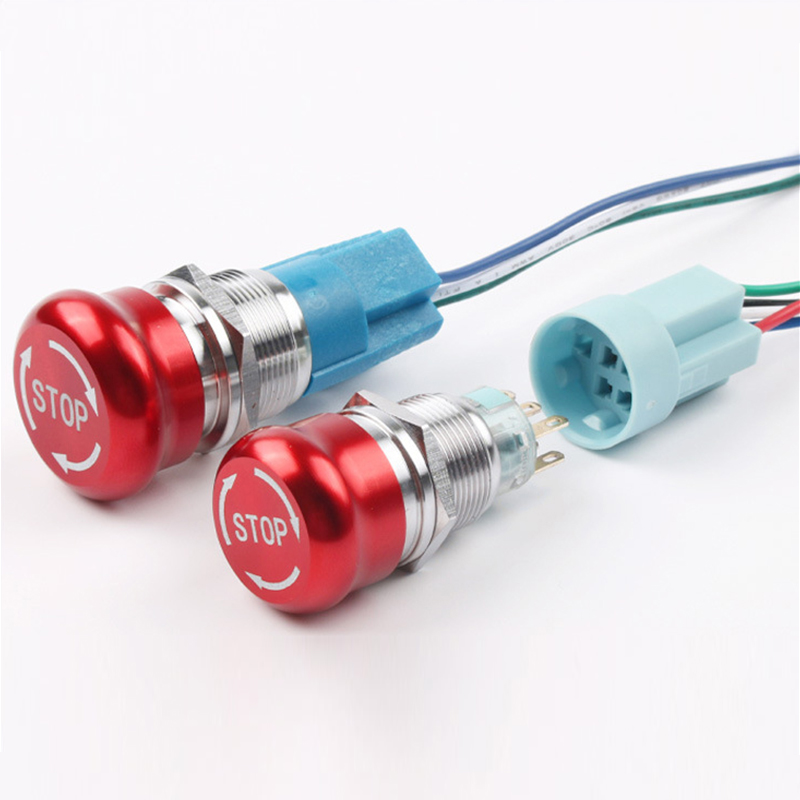

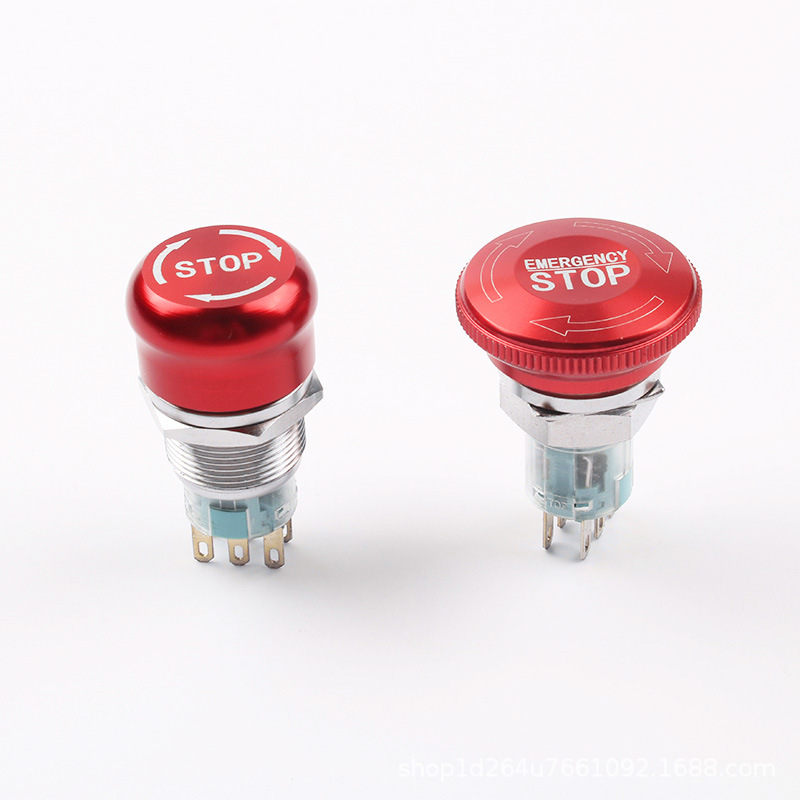

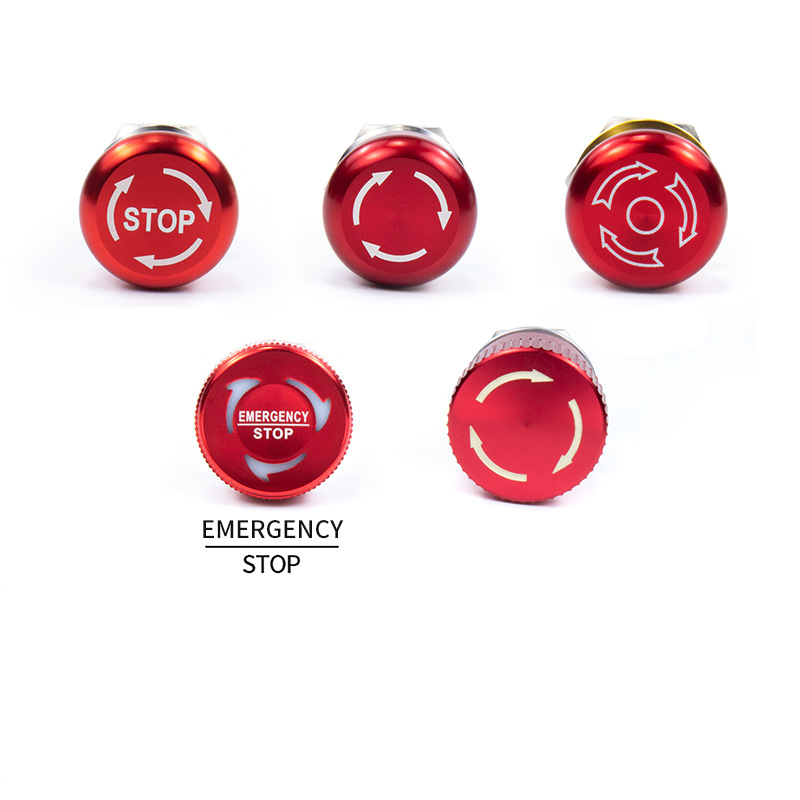

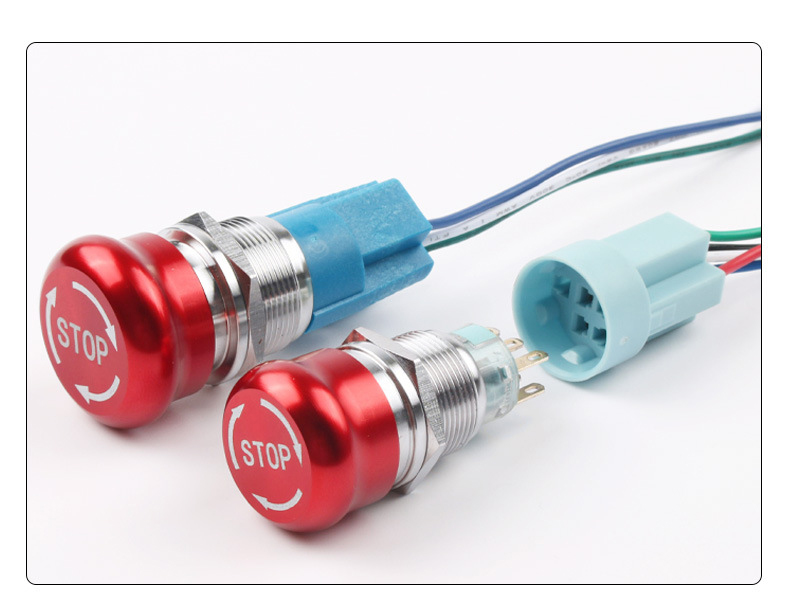

mushroom head emergency stop push button switch
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name mushroom head emergency stop button
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 2NO2NC
Head shape: Flat head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-O22J |
| Mounting Hole | 19mm |
| Operation Type | Momentary |
| Switch Combination | 2NO2NC |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

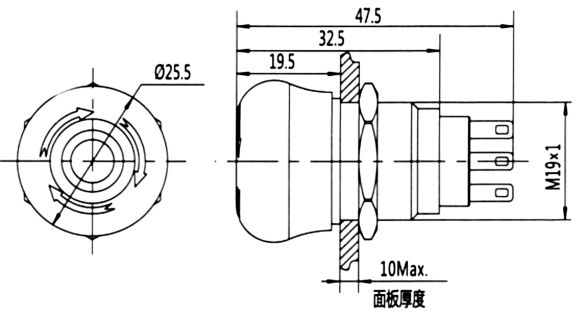

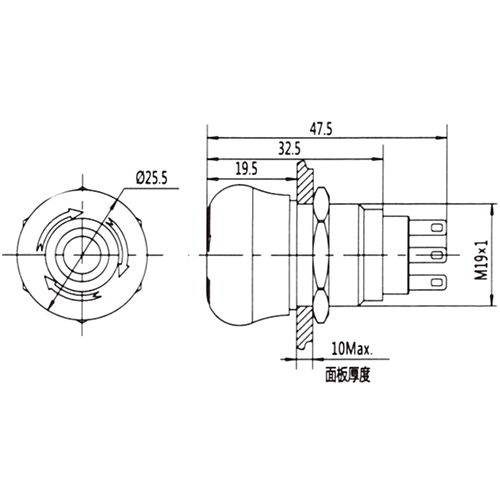

Drawing
Product introduction : Mushroom-head emergency stop buttons are designed for control panels and electrical systems and provide essential safety features to prevent accidents and hazards. Its unique shape and eye-catching red color make it easy to identify, while its rugged construction ensures reliable performance in demanding environments. This emergency stop button is a critical component in ensuring the safety of people and equipment in a variety of industrial and commercial applications.
Application : Control Panels: Mushroom-head emergency stop buttons are integrated into control panels of machinery, process control systems and industrial equipment. Its direct accessibility and unmistakable design enable operators to quickly stop operations in an emergency, protecting personnel and equipment from potential injury or damage.
