momentary push on switch

Short Description:

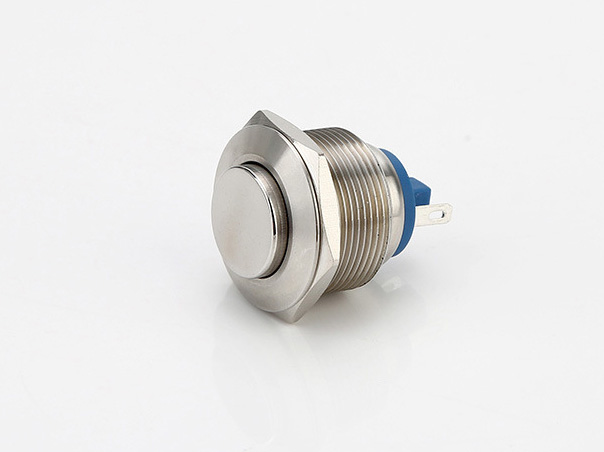

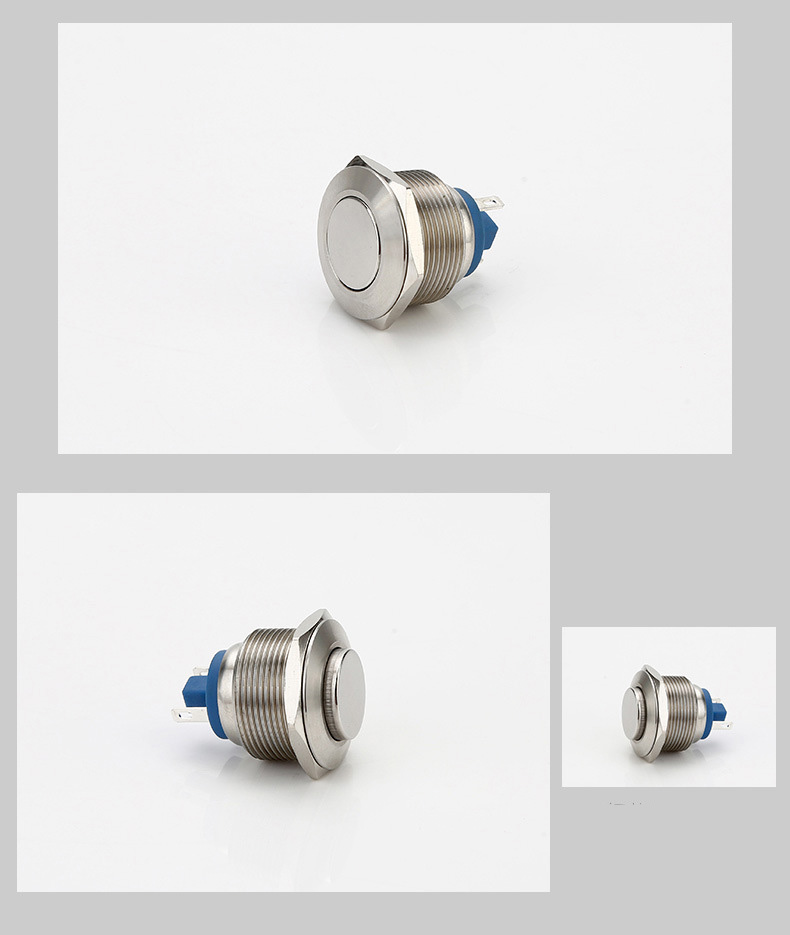

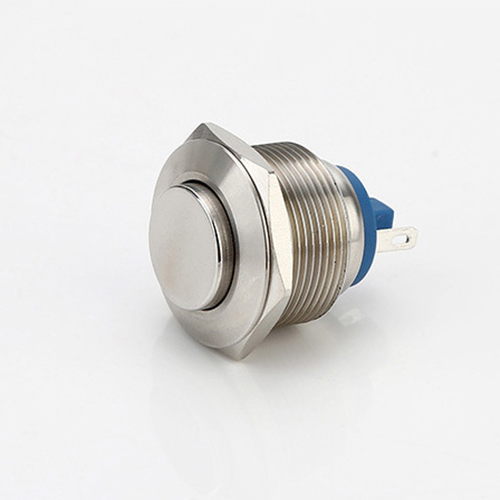

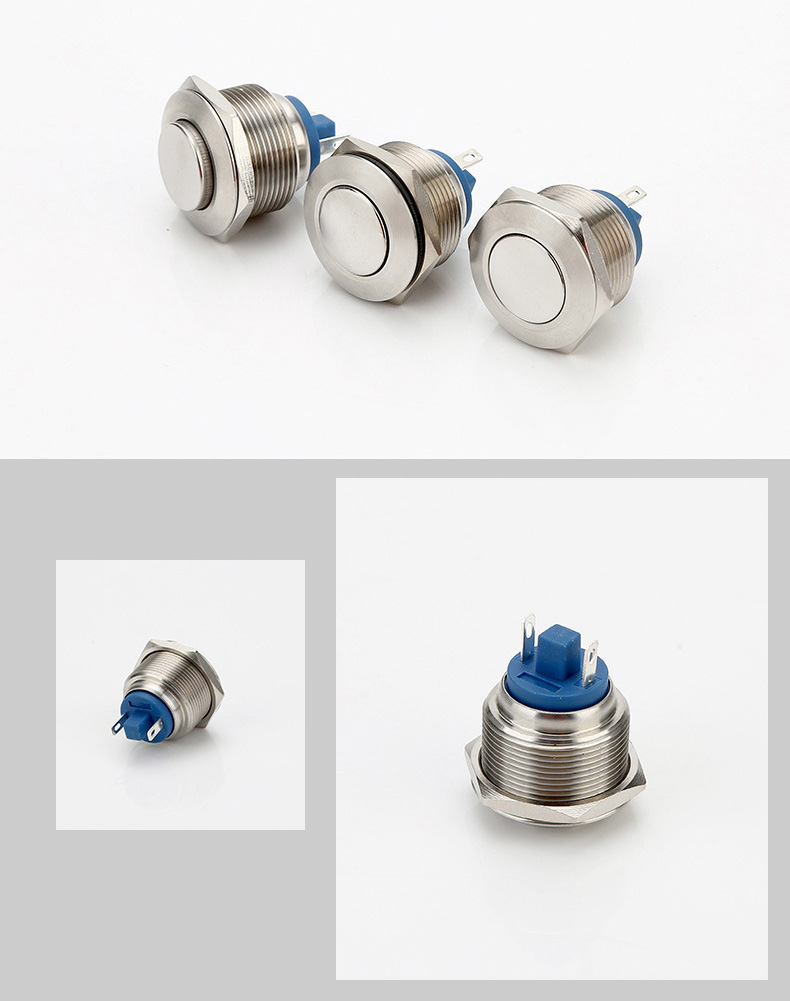

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type


Product Detail

Product Tags

Specification:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape:  High  head  Hole size: 22mm

Product Name Push button switch
Model YL22C-A11G
Mounting Hole 22mm
Operation Type Momentary
Switch Combination 1NO1NC
Head Type High head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

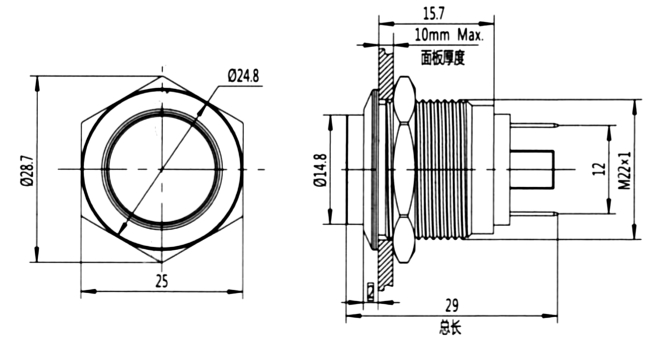

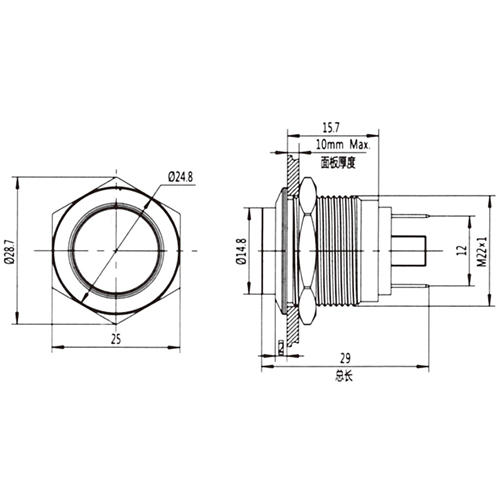

Drawing

YL22S-A11G1

YL22S-A11G

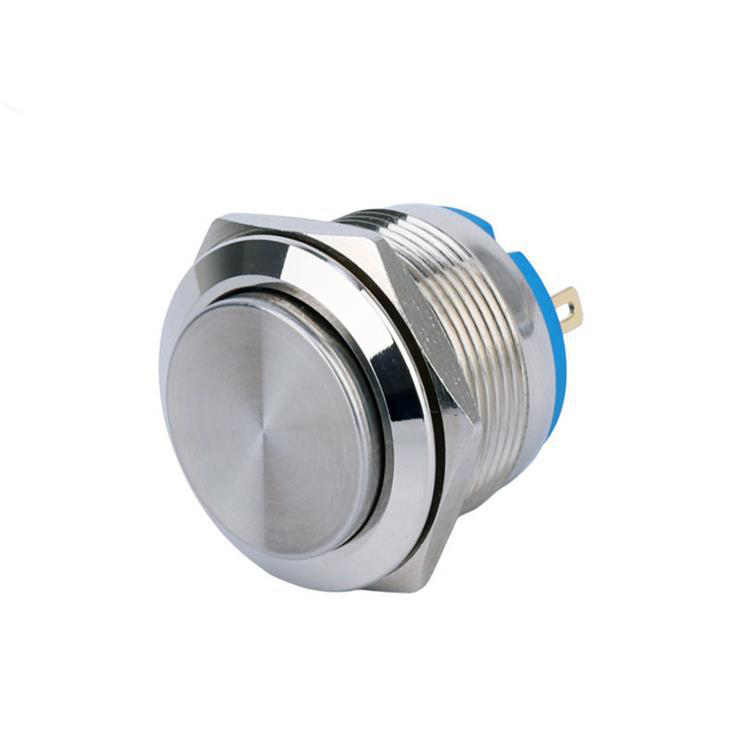

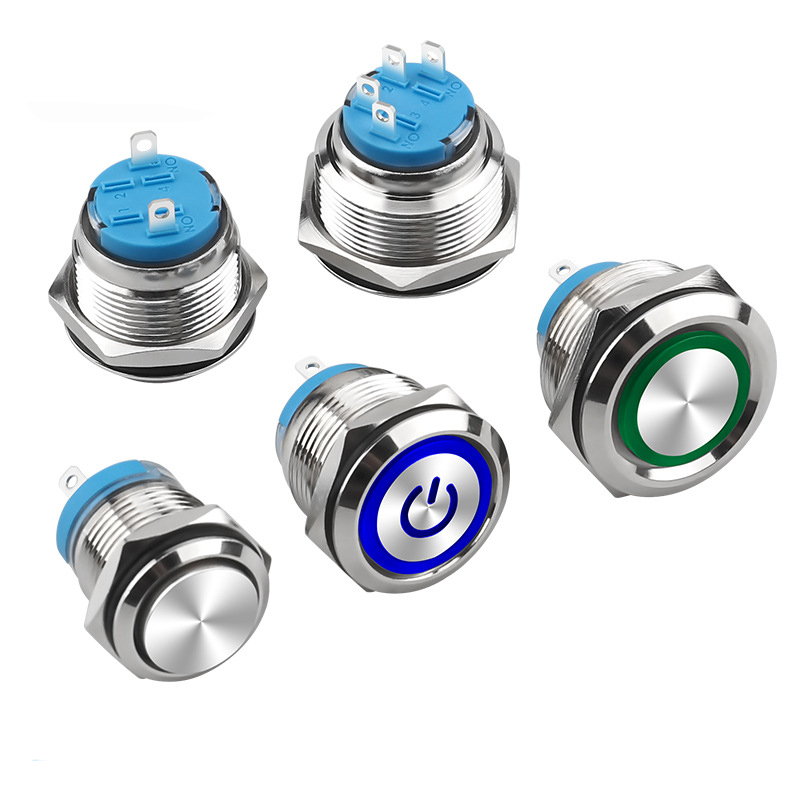

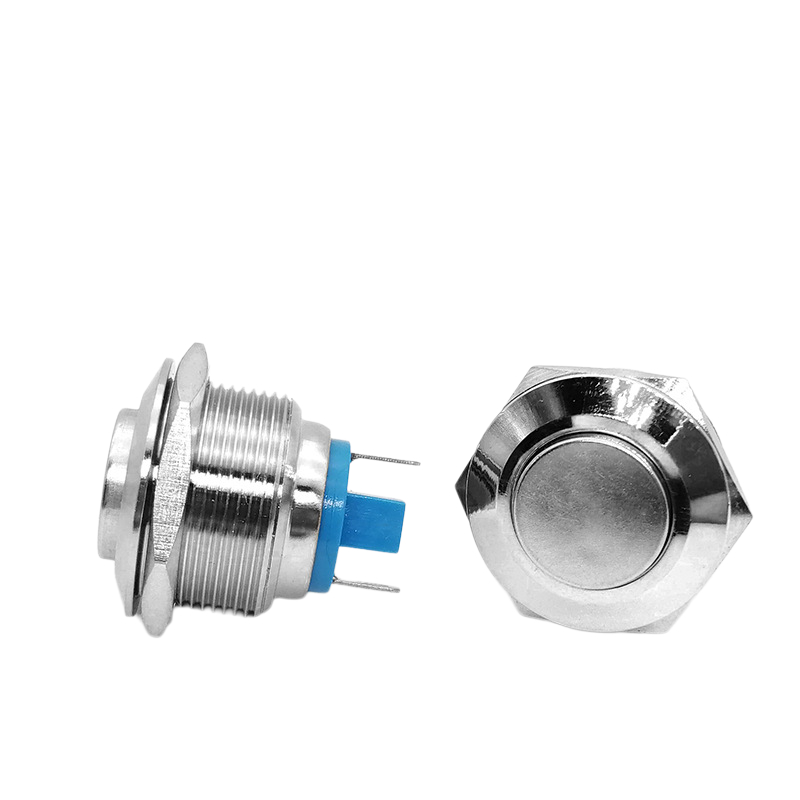

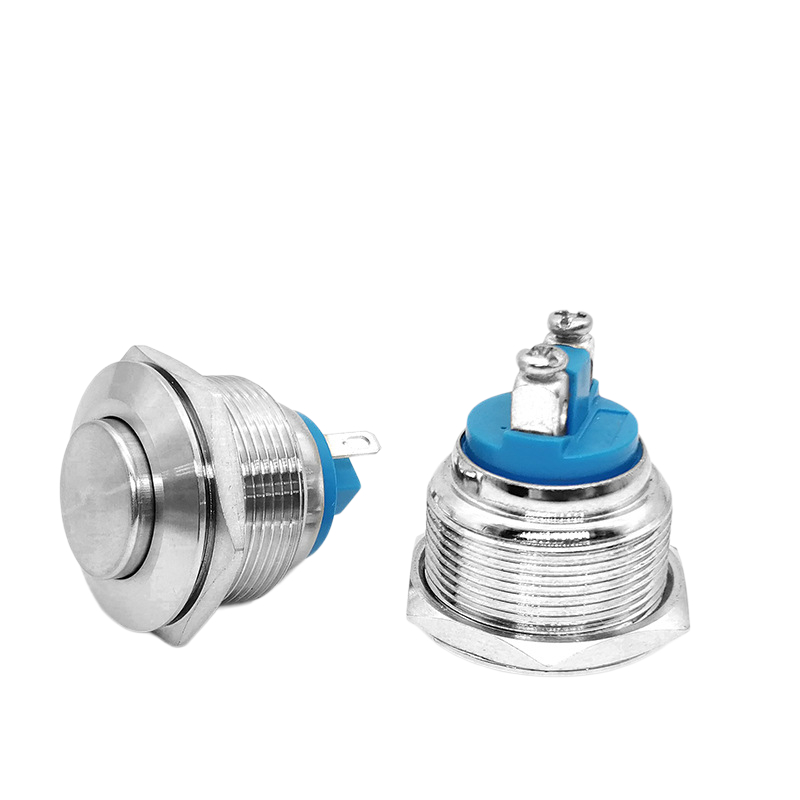

YL22S-A11G-1 YL22S-A11G-2 YL22S-A11G-3 YL22S-A11G-4 YL22S-A11G-5 YL22S-A11G-6

YL22S-A11G

YL22S-A11G YL22S-A11G

6.1 6.2 6.3



Product introduction : Our metal push button switches feature a sleek, modern design that’s perfect for consumer electronics and appliances. Illuminated options provide visual feedback and enhance the user interface.

Application : Consumer Electronics: These switches are commonly used in devices such as audio amplifiers, home appliances, and gaming peripherals for power on/off and mode selection.
