Product name:momentary push button switch with led

Material: Brass nickel plated / Stainless steel

LED color: No

Operation Type: Momentary Rating: 5A/250VAC LED

Send email to us Send email to us

Product Detail

Product Tags

Specification:

Product name:momentary push button switch with led

Material: Brass nickel plated / Stainless steel

LED color: No

Operation Type: Momentary Rating: 5A/250VAC LED

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO1NC

Head shape: High head Hole size: 22mm

Product Name	Push button switch
Model	YL22C-B11PD
Mounting Hole	22mm
Operation Type	Momentary
Switch Combination	1NO1NC
Head Type	High head
Terminal type	Terminal
Enclosure Material	Brass nickel
Delivery Days	3-7 days after payment received
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C
Wire Connector / Wire soldering	Acceptable and with fast shipping
Accessories	Nut, Rubber ,Waterproof O-ring

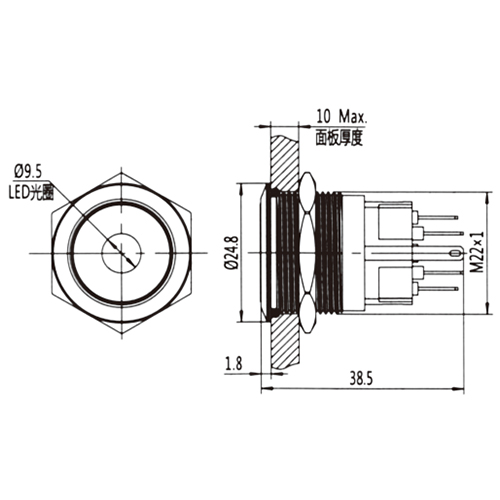

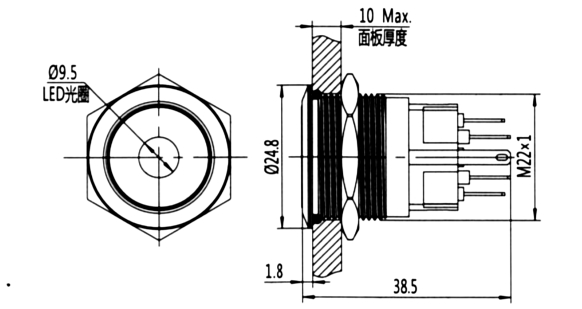

Drawing

Product introduction : Our metal push button switches feature customizable actuator shapes, legends and symbols, providing flexibility for design integration and user interface customization.

Application : Special Equipment: These switches are integrated into special equipment and instruments and require custom legends and symbols for clear and intuitive operation.
