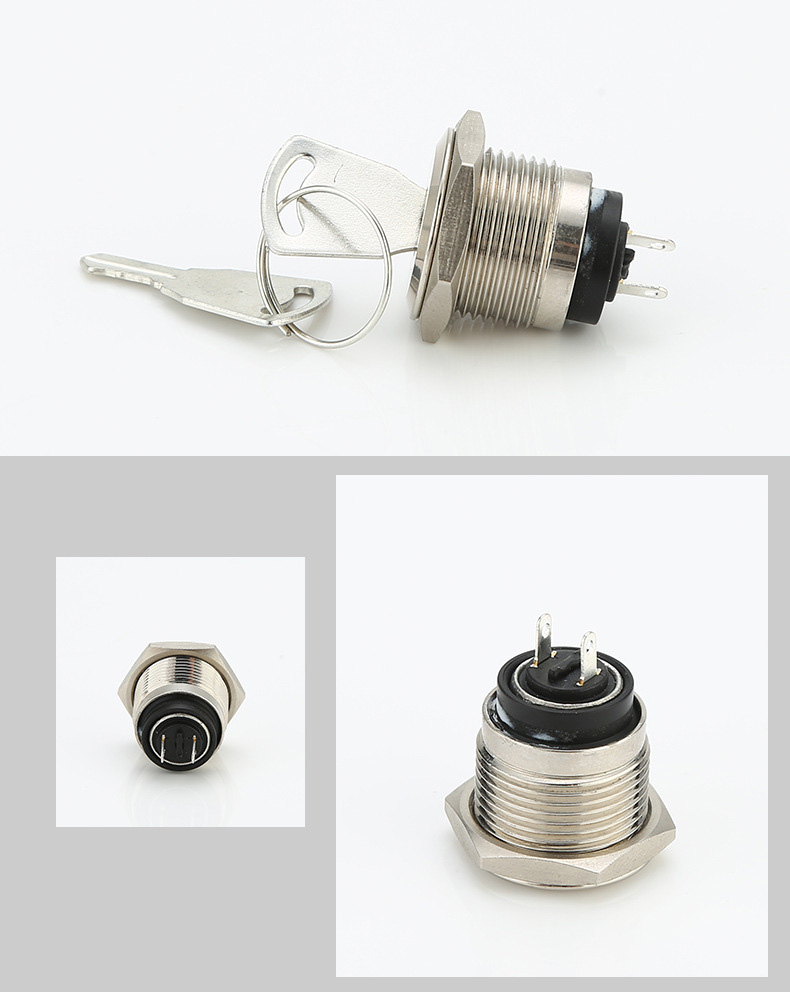

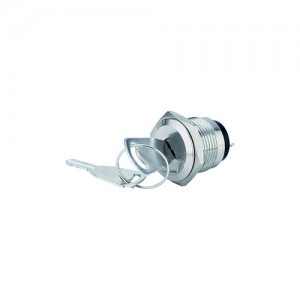

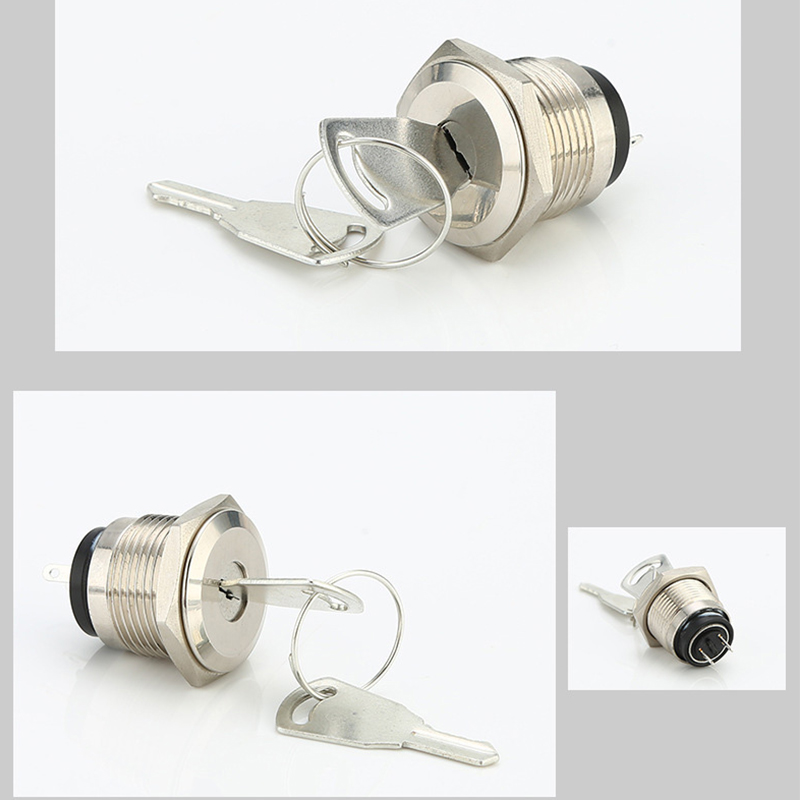

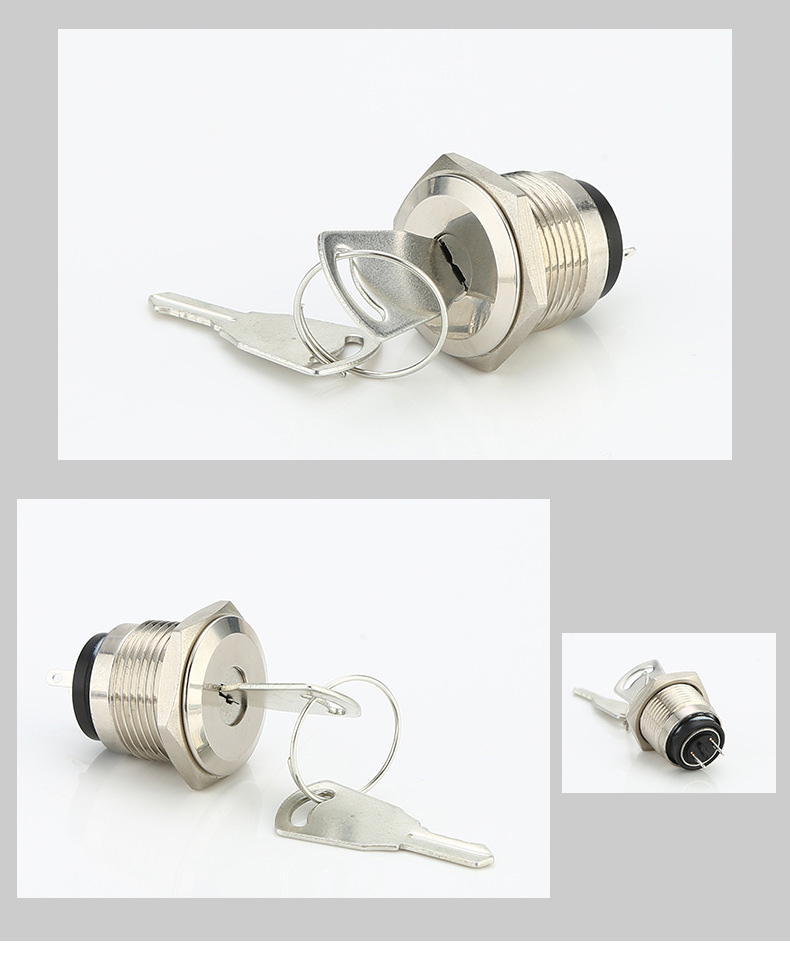

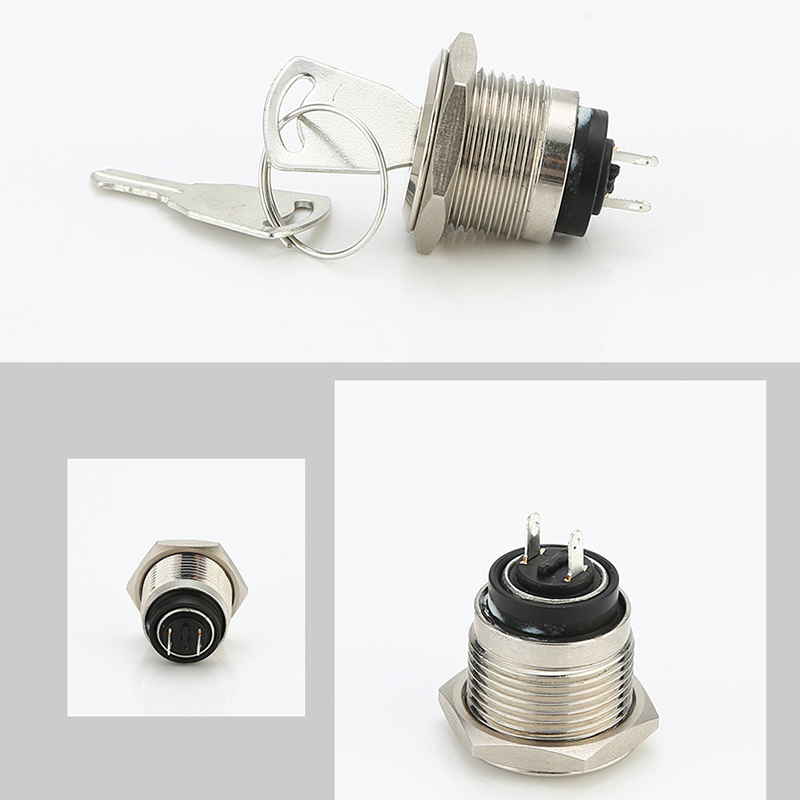

Metal push button switch with key
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Momentary latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 16mm
| Product Name | Push button switch |
| Model | YL16C-F11J |
| Mounting Hole | 16mm |
| Operation Type | Momentary Latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

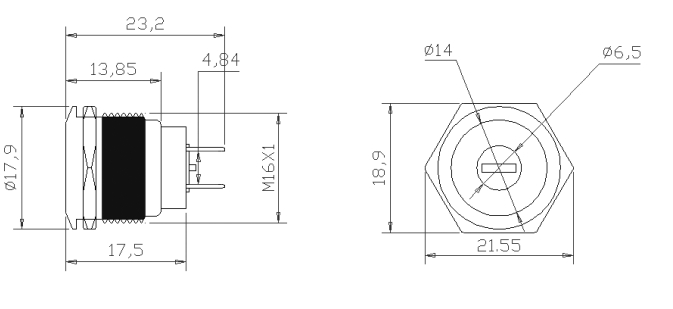

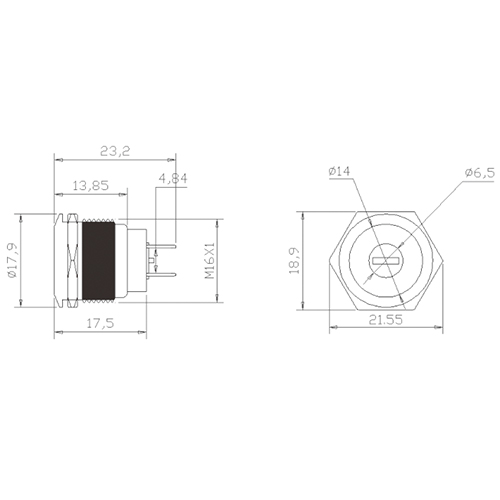

Drawing
Product introduction : Our keyed metal push button switches are designed for applications requiring an extra level of security and control. The switch features a lockable key mechanism that provides authorized access to control functions. It is ideal for use in security systems, access control panels, and machinery where operation needs to be restricted or supervised.
Application : Access Control Systems: These switches are often integrated into secure entry systems, elevators, and restricted access doors to provide authorized personnel with controlled access and key-operated control of critical functions.
