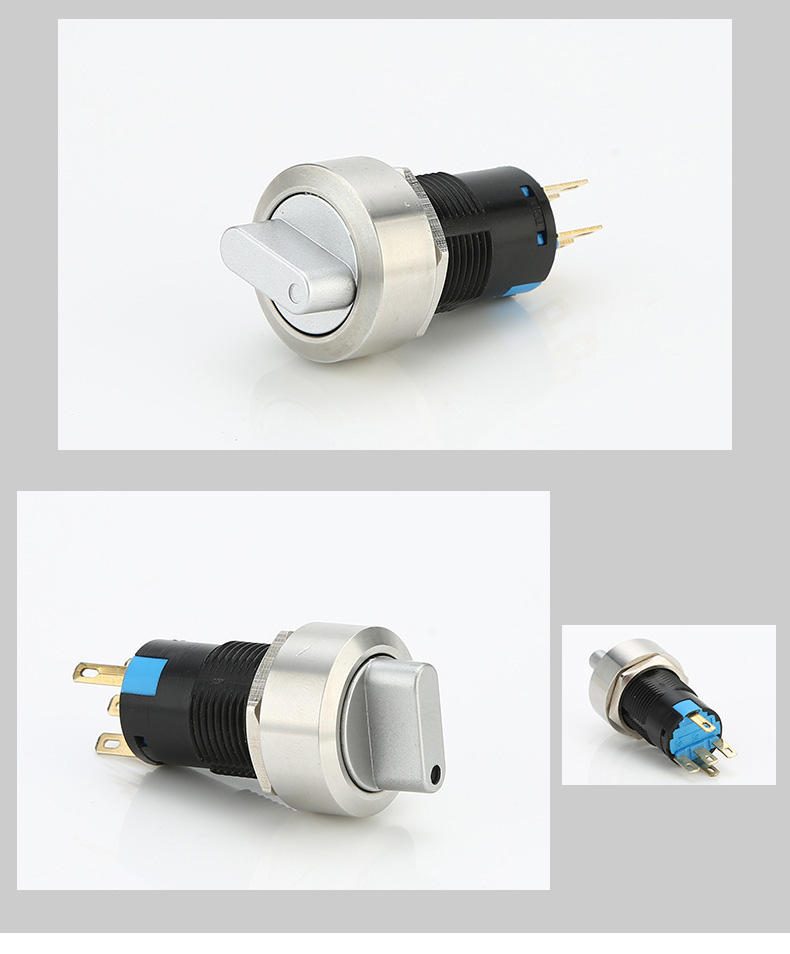

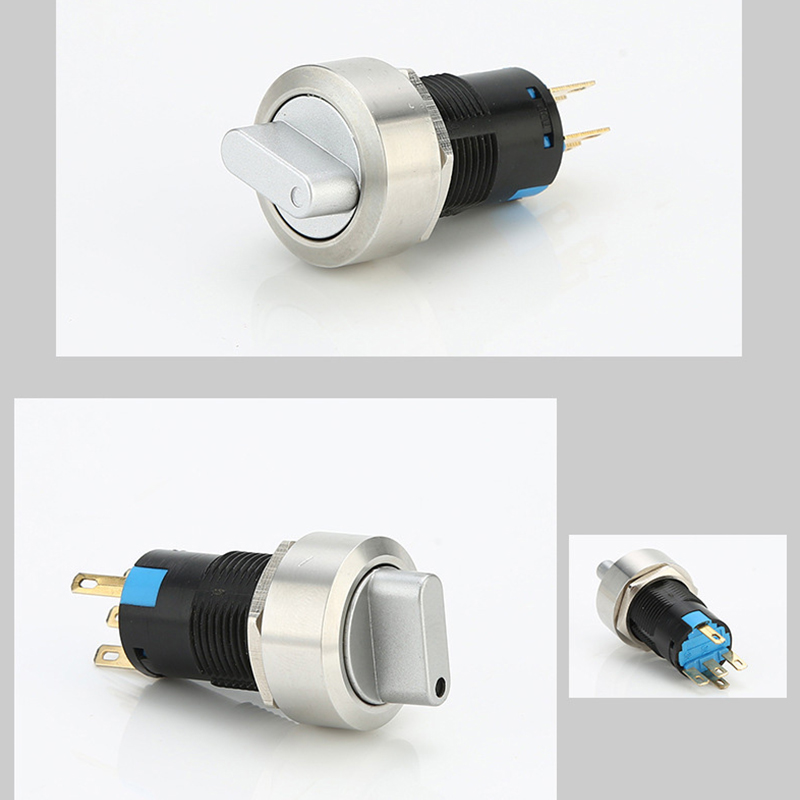

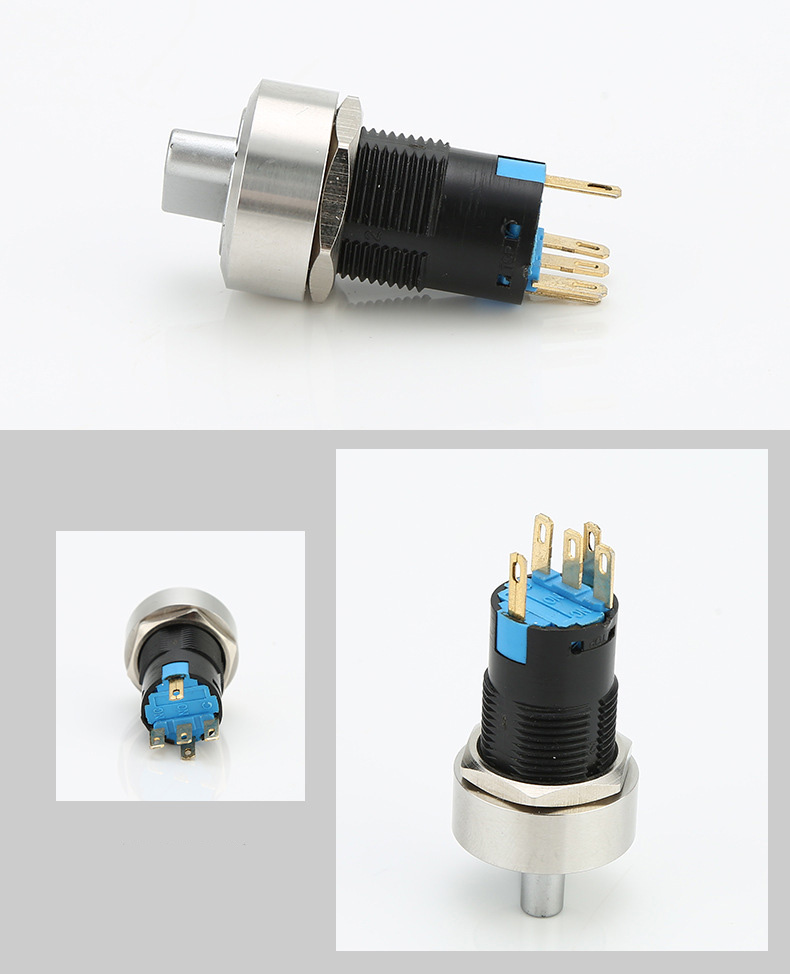

metal push button switch with a rotary knob
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color:NO
Operation Type:Momentary latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Hight head Hole size: 16mm
| Product Name | Push button switch |
| Model | YL16C-P11XE |
| Mounting Hole | 16mm |
| Operation Type | Momentary Latching |
| Switch Combination | 1NO1NC |
| Head Type | HIGH head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

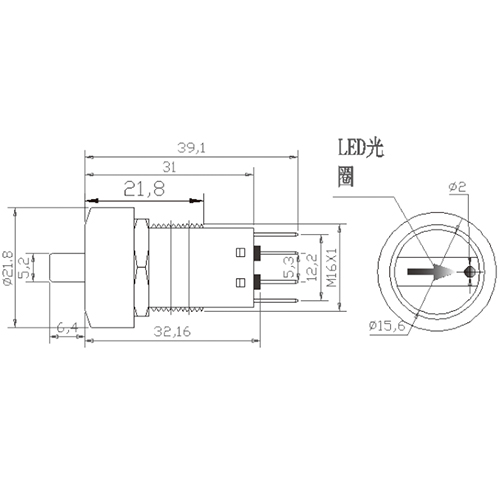

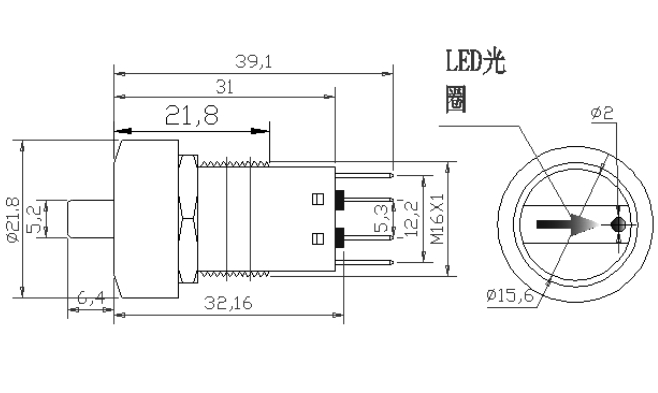

Drawing
Product introduction : Designed for versatility and reliability, our metal push button switches with knobs provide a rugged and reliable solution for control and instrumentation applications. Knobs enable intuitive, accurate adjustments for audio equipment, dashboards and control interfaces where precise manual input is critical.
Application : Audio Equipment Control: This switch is often integrated into audio mixing consoles, amplifiers, and professional audio equipment to provide users with a tactile, sensitive control interface for adjusting settings and parameters during live performances or studio recordings.
