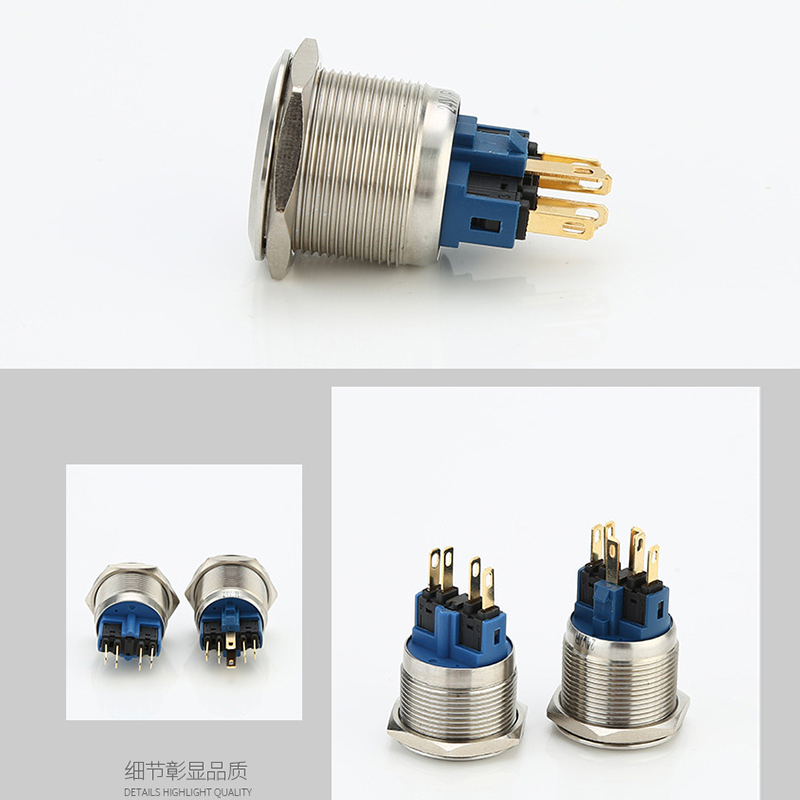

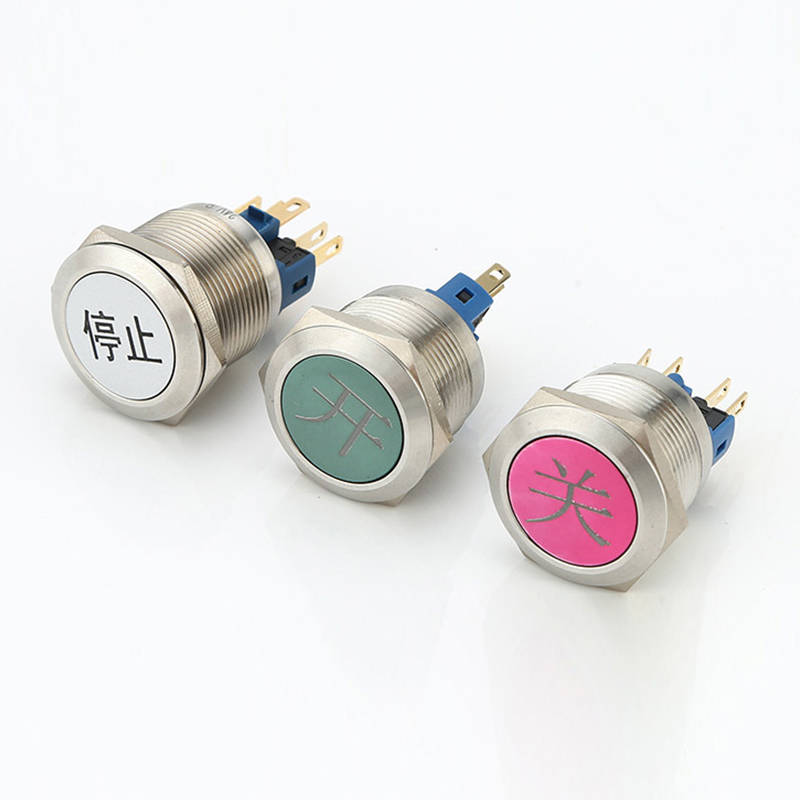

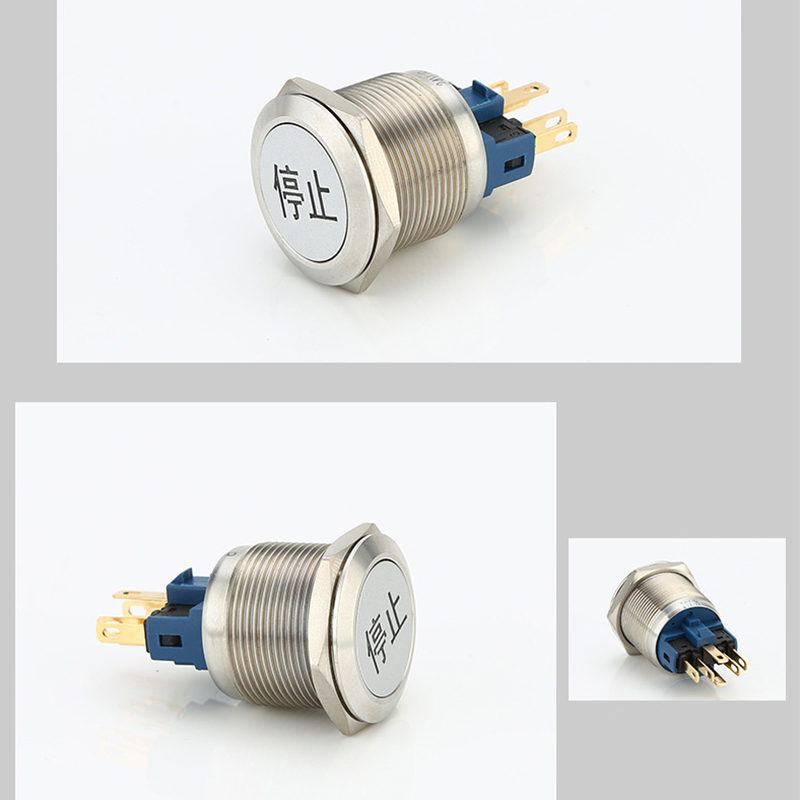

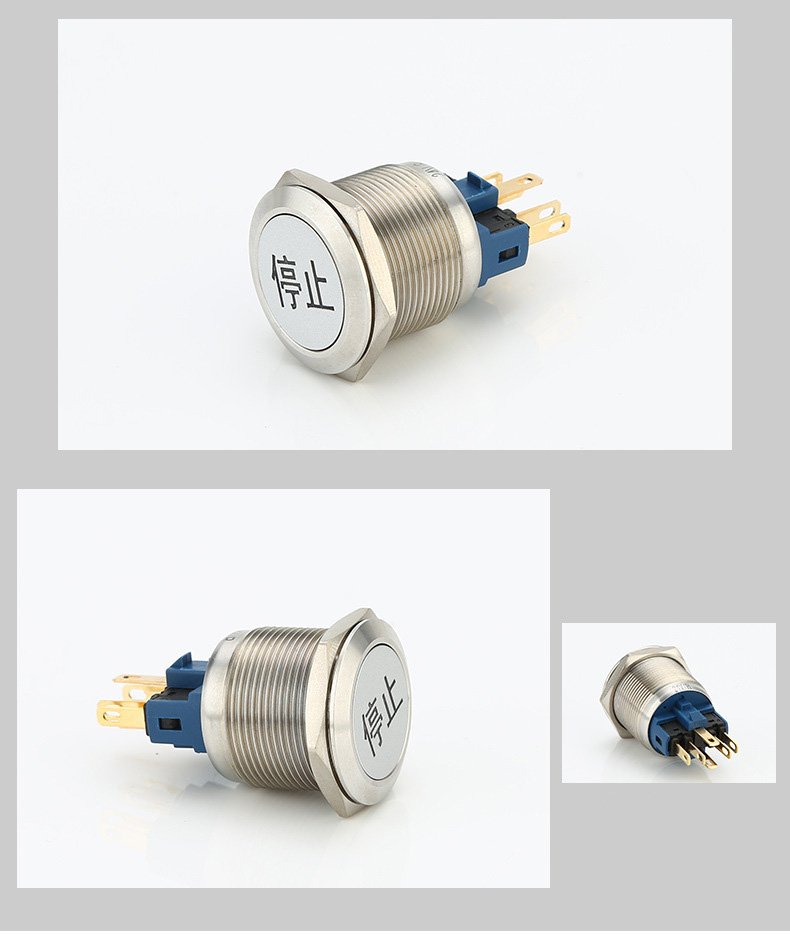

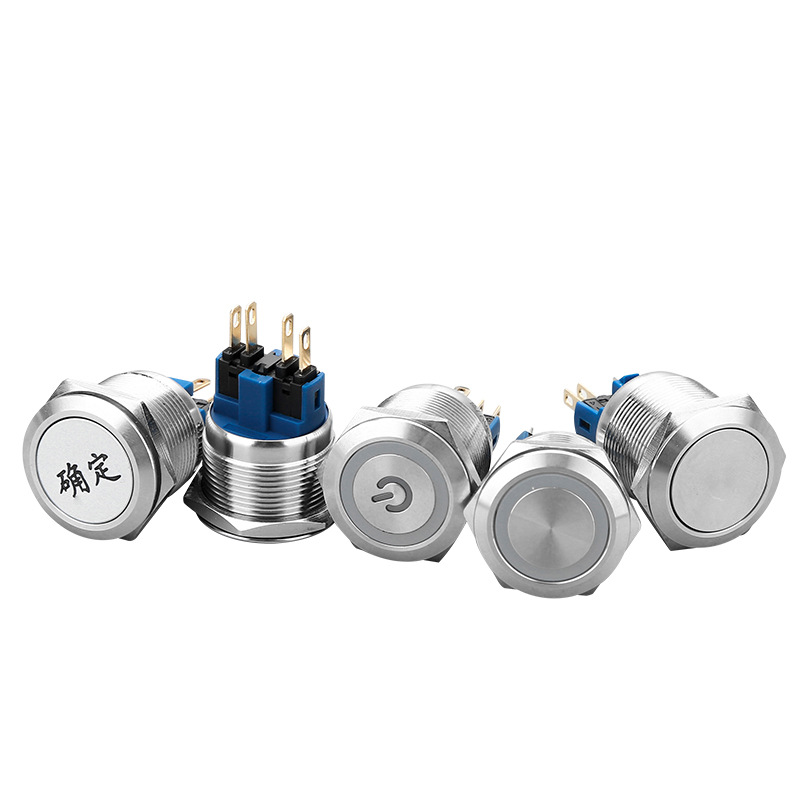

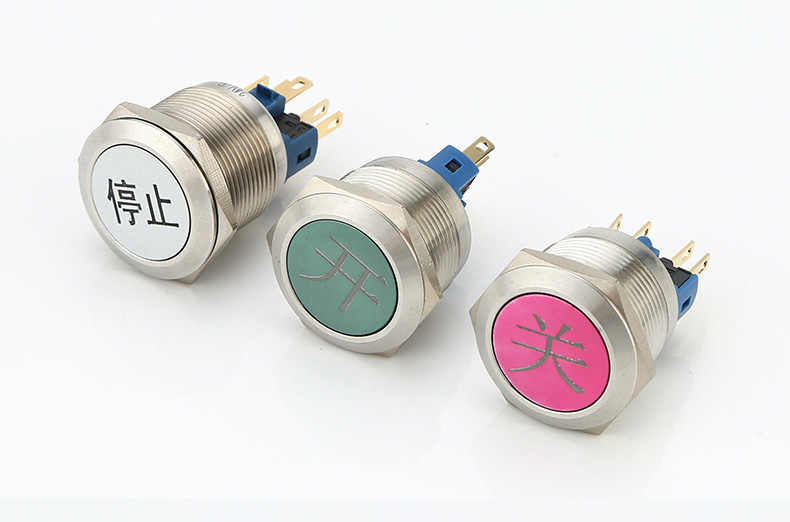

metal push button switch momentary
Features:

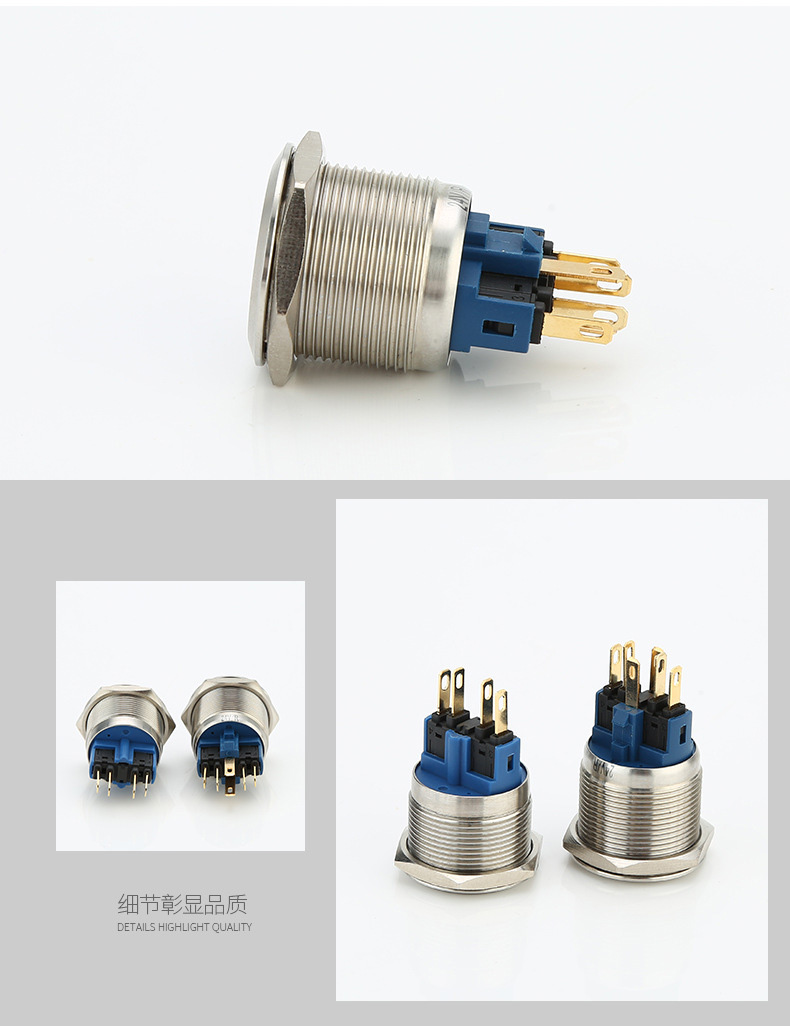

Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: 4 pin momentary switch
Material: Brass nickel plated / Stainless steel
LED color: No
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Dome head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A11Q |
| Mounting Hole | 25mm |
| Operation Type | Momentary |
| Switch Combination | 1NO1NC |
| Head Type | Dome head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

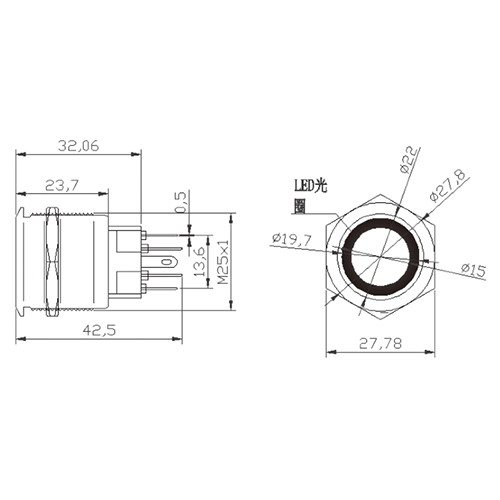

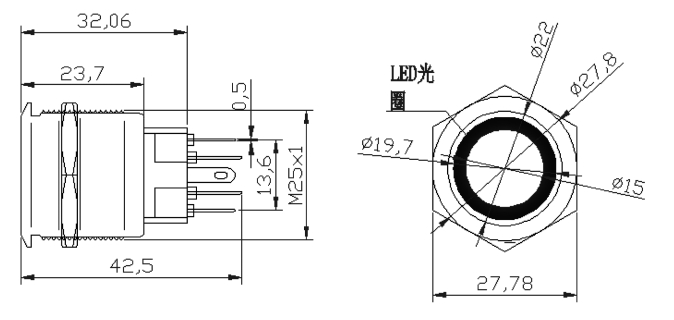

Drawing
Product Features : Metal push button switches feature lighting and indicator light options for enhanced visibility and status indication of control operations. Its integrated lighting feature provides clear feedback and enhanced user interaction, providing visual cues for operating status and control activation.
Application : Machine Tool Control: Metal push button switches integrated into the machine tool control panel provide illuminated buttons to indicate tool functions, machine status and operating modes. Its integrated indicator lights provide operators with clear visual feedback, helping to precisely control and monitor machine tool operations.
