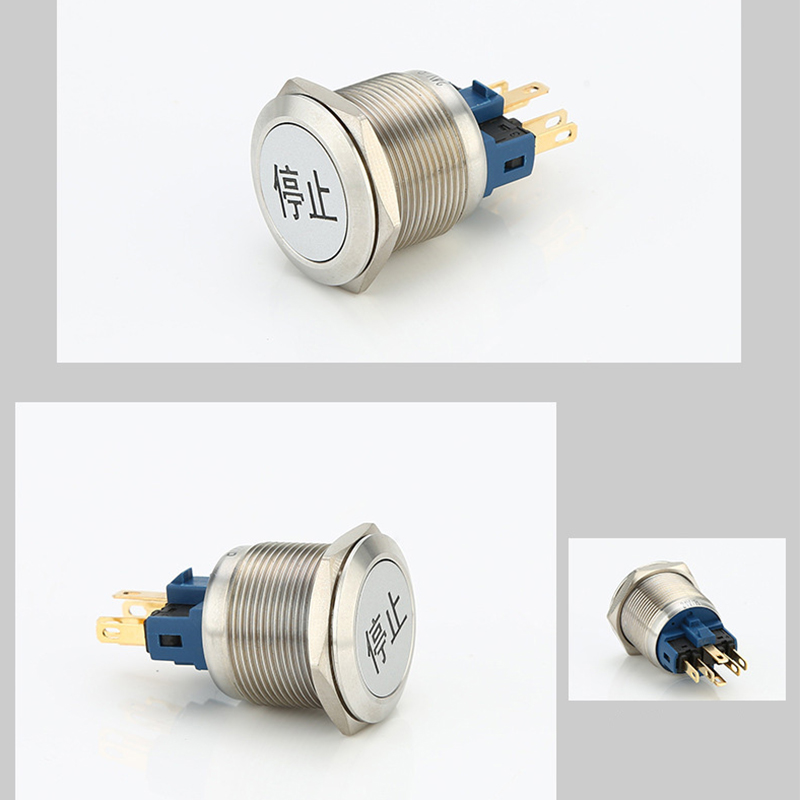

Metal button waterproof switch stainless steel power start switch self-resetting self-locking button
Specification:
Product name: 22mm latching Anti Vandal Swtich
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A1PDZ |
| Mounting Hole | 25mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

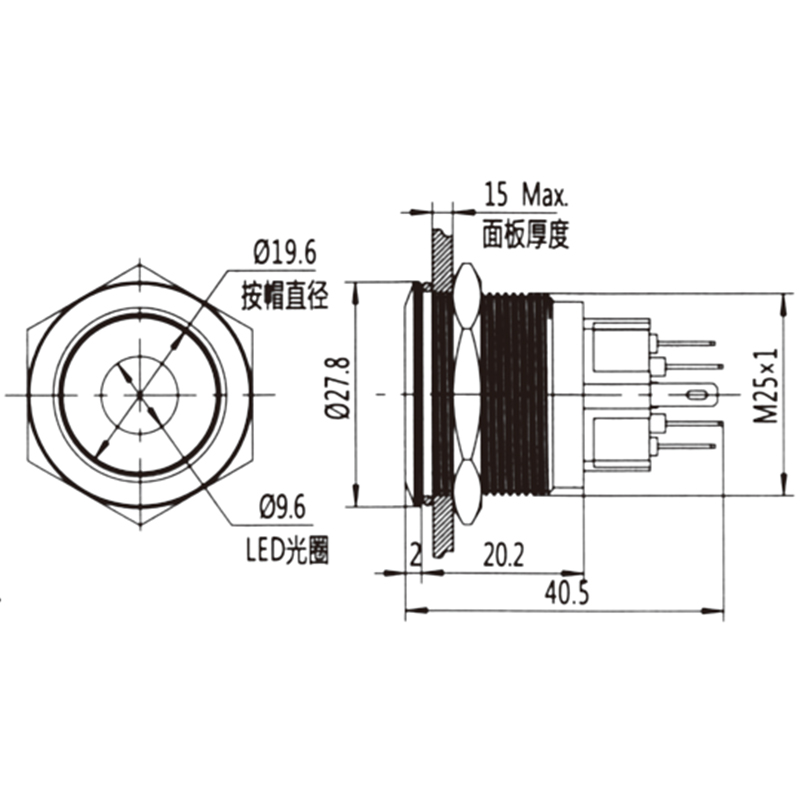

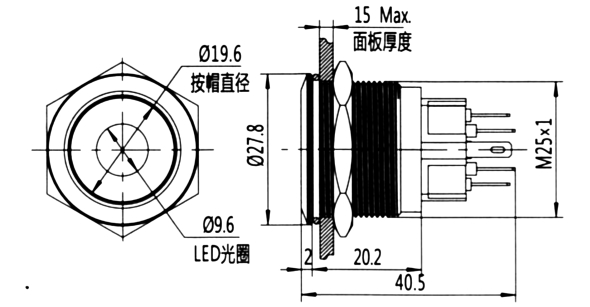

Drawing
Product features : Metal pushbutton switches feature high-visibility and durable labeling options to provide clear and durable identification of control functions. Its enhanced visibility and legibility contribute to increased operational safety and efficiency, allowing users to quickly identify and activate intended control functions.
Application : Commercial Building Controls: Metal push button switches are used in building management systems, elevator control panels and HVAC (heating, ventilation and air conditioning) systems within commercial facilities. Its clearly labeled options ensure easy identification and operation of building control functions, improving user convenience and system management efficiency.
