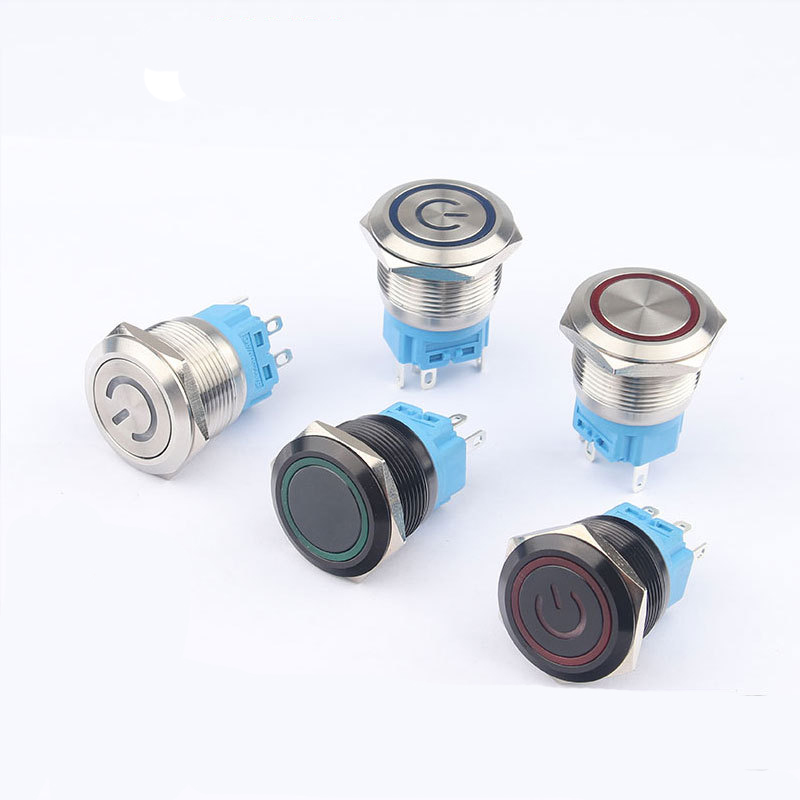

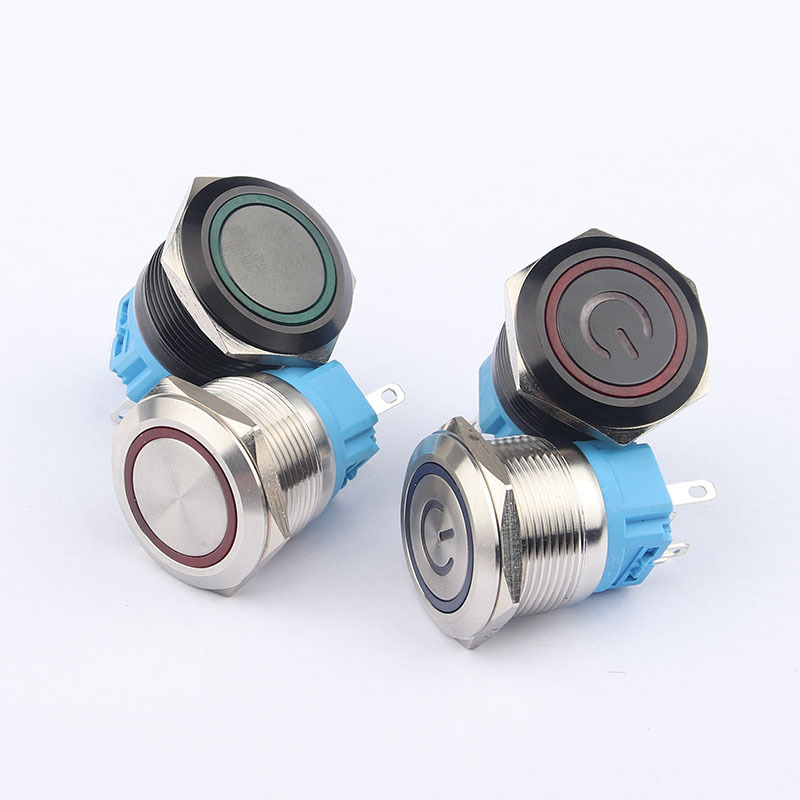

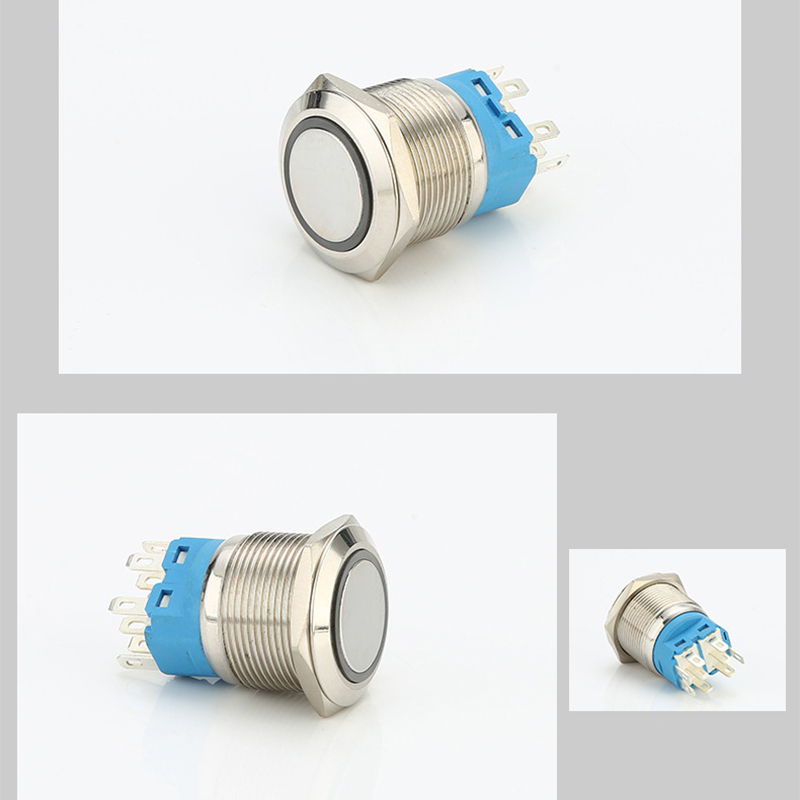

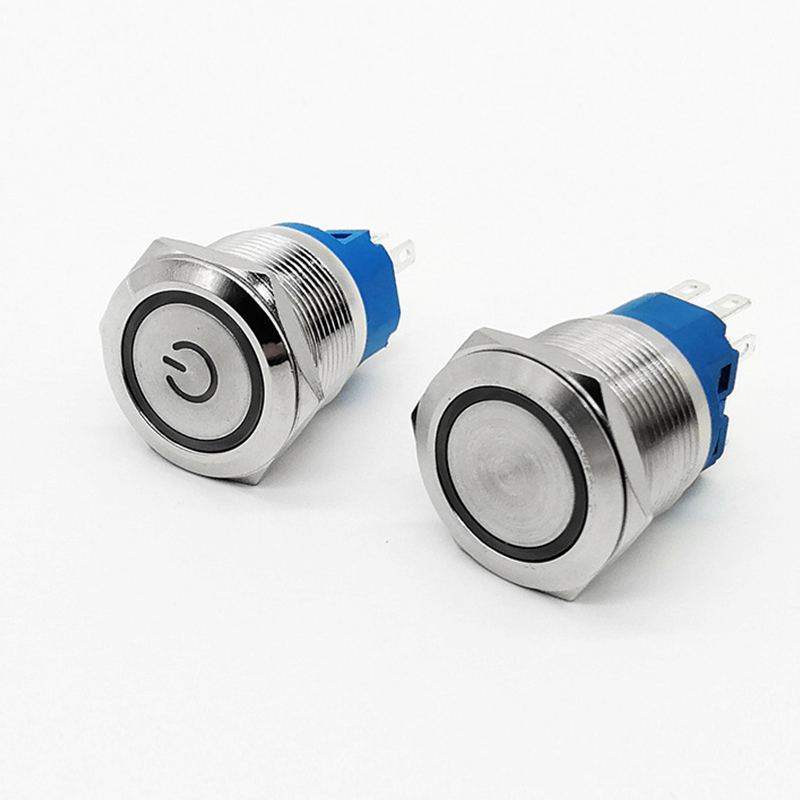

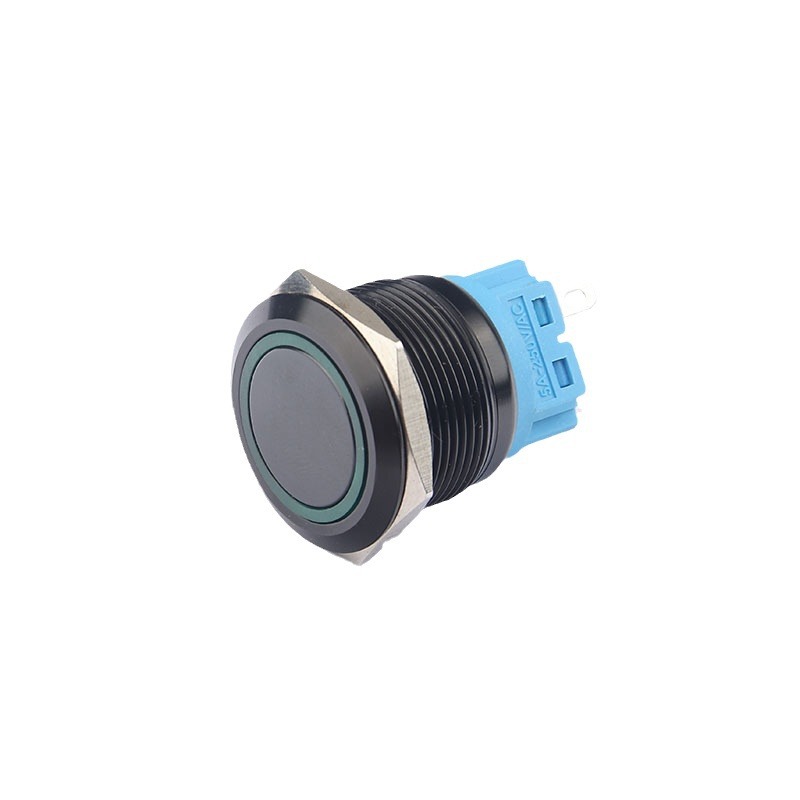

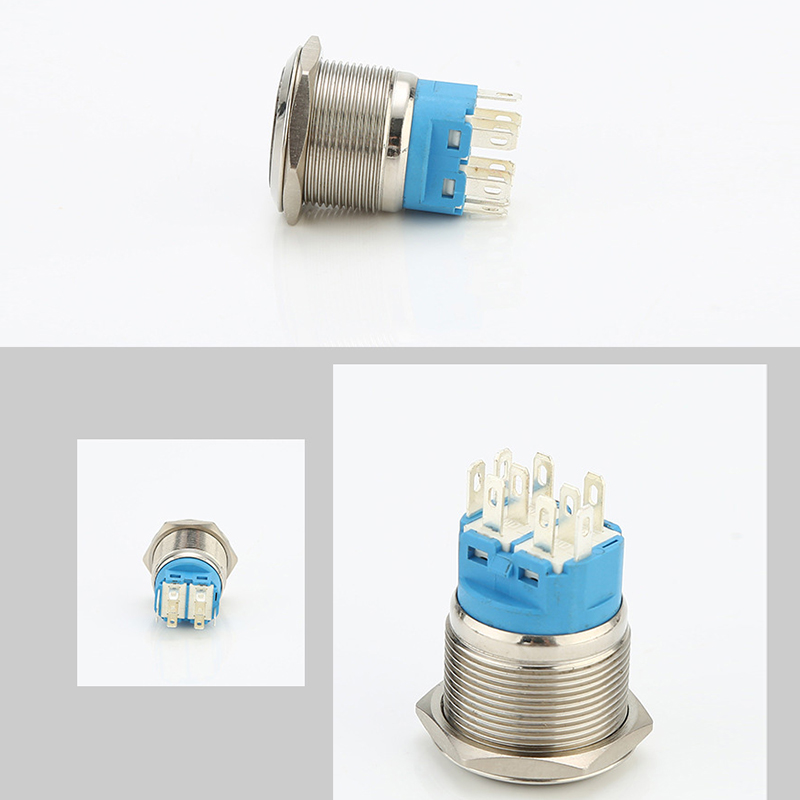

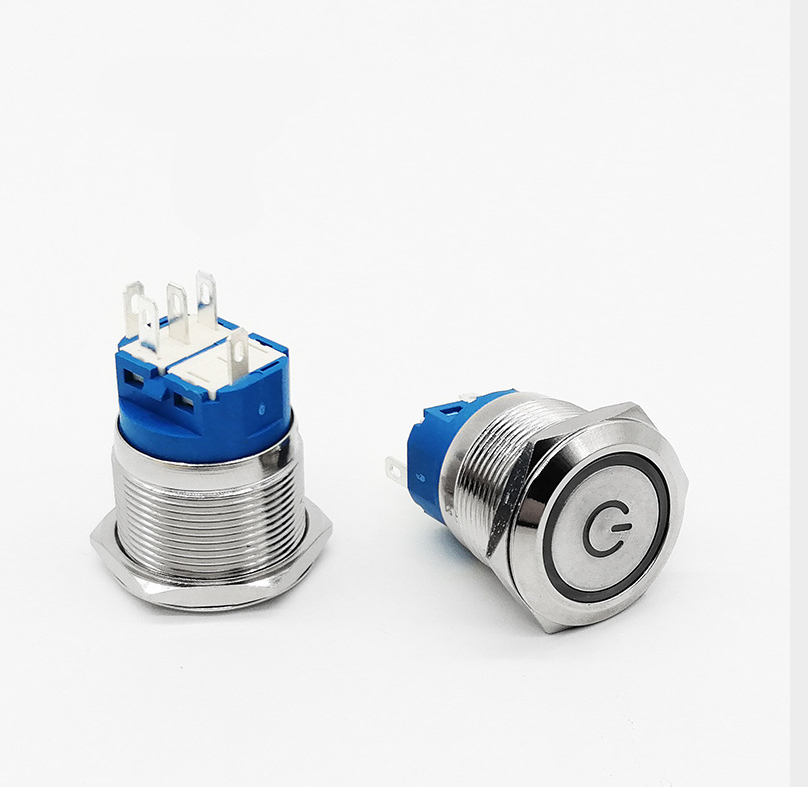

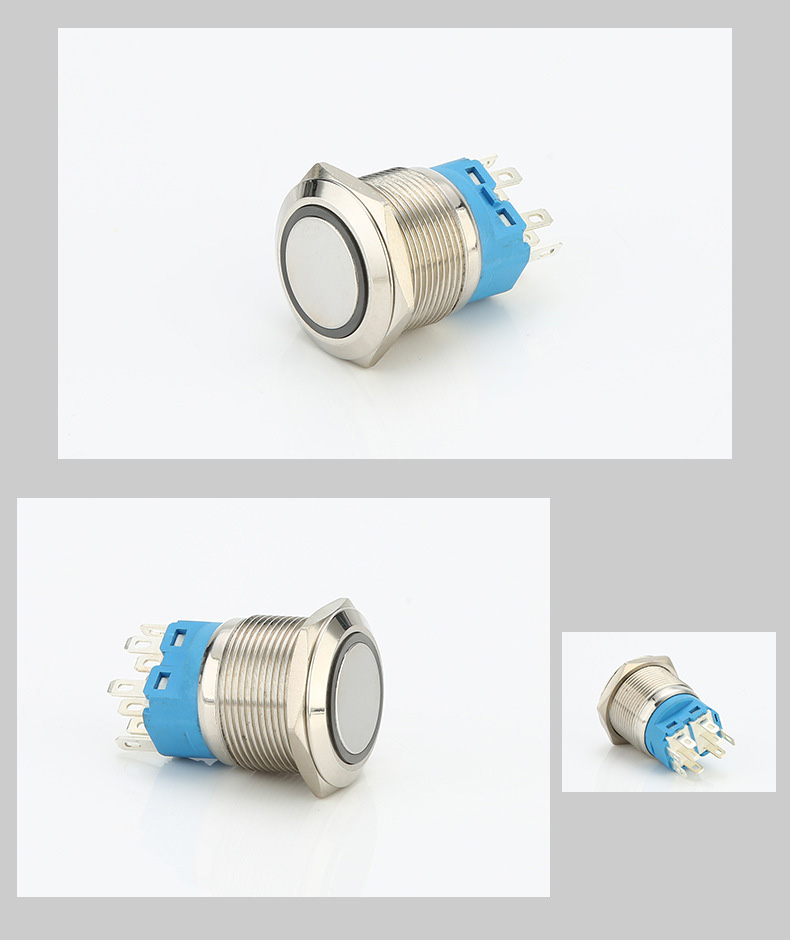

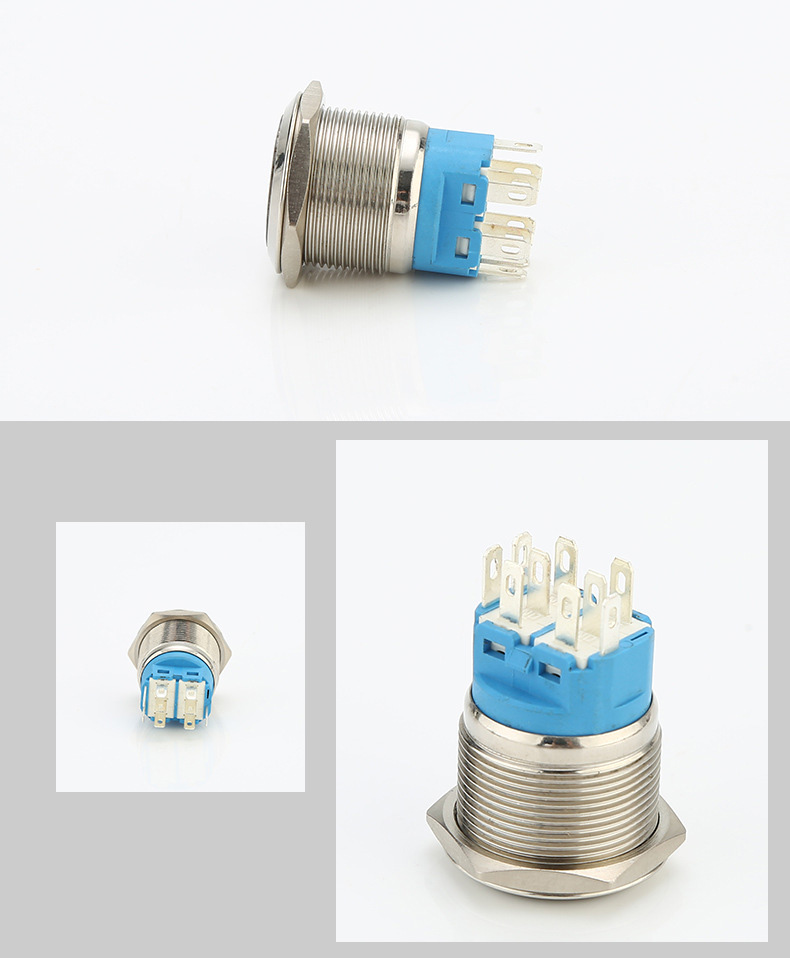

Metal button switch self-locking self-restoring waterproof ring touch switch power button
Specification:
Product name:12mm anti vandal switch with led
Material: Brass nickel plated / Stainless steel

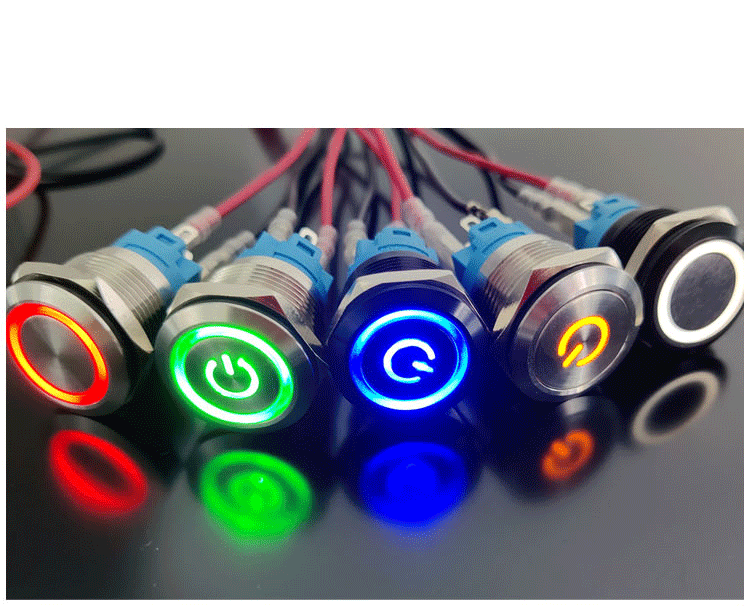

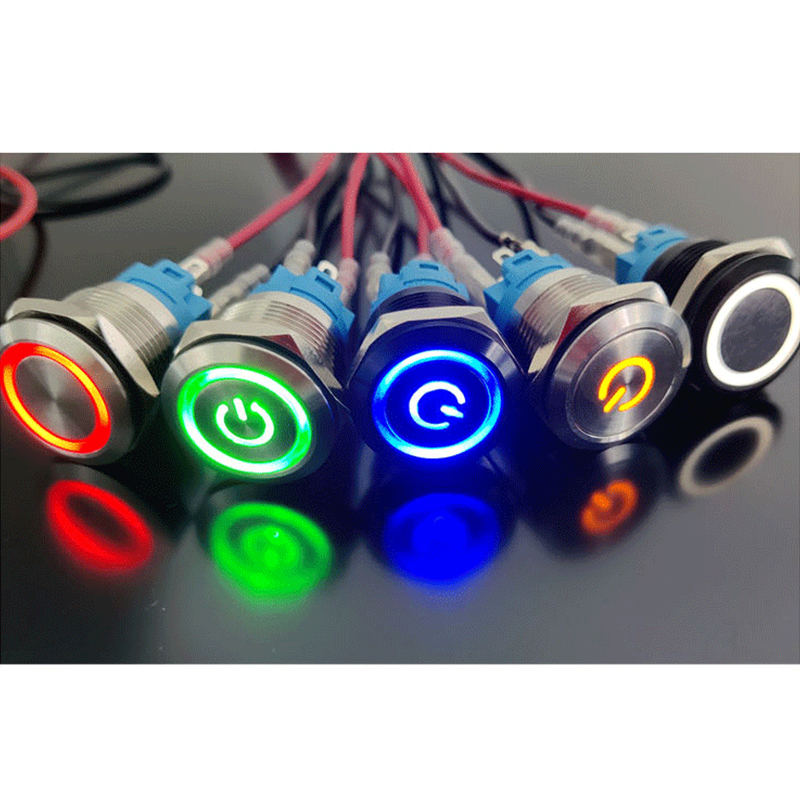

LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-E11PEZ |
| Mounting Hole | 22mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Pins |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |

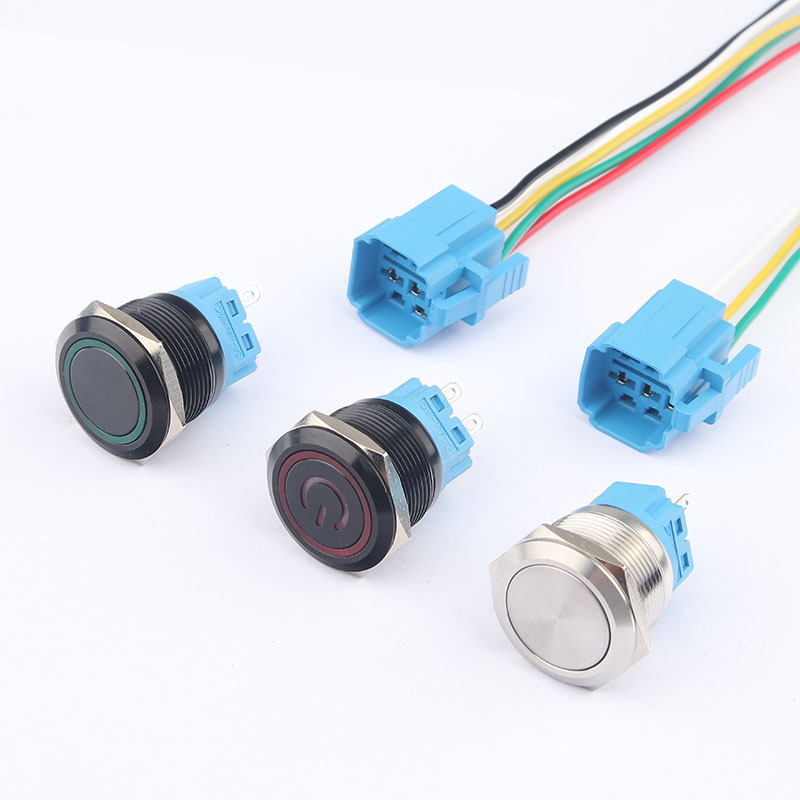

| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

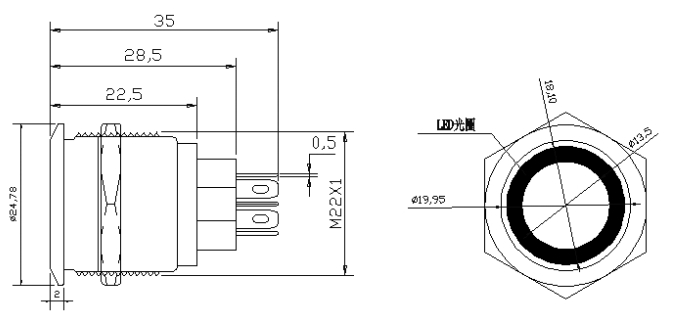

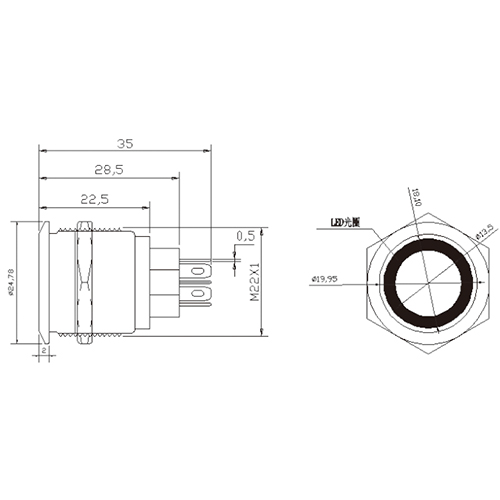

Drawing
Product features : This metal push button switch offers excellent resistance to environmental factors such as moisture, dust and vibration, allowing for consistent performance in challenging environments. Its reliability in harsh conditions makes it ideal for outdoor and industrial applications that require durability and weather control.
Application : Outdoor equipment control: Metal push button switches are used in outdoor equipment such as agricultural machinery, engineering vehicles, and outdoor lighting systems. Its resistance to environmental factors ensures reliable operation in outdoor environments, providing users with a reliable interface for controlling outdoor equipment and infrastructure.
