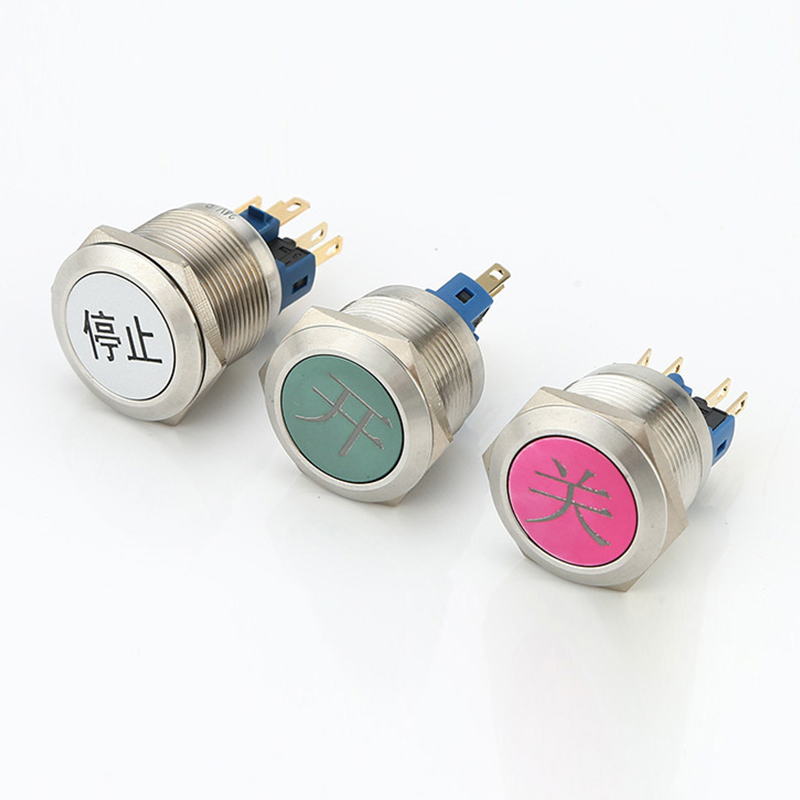

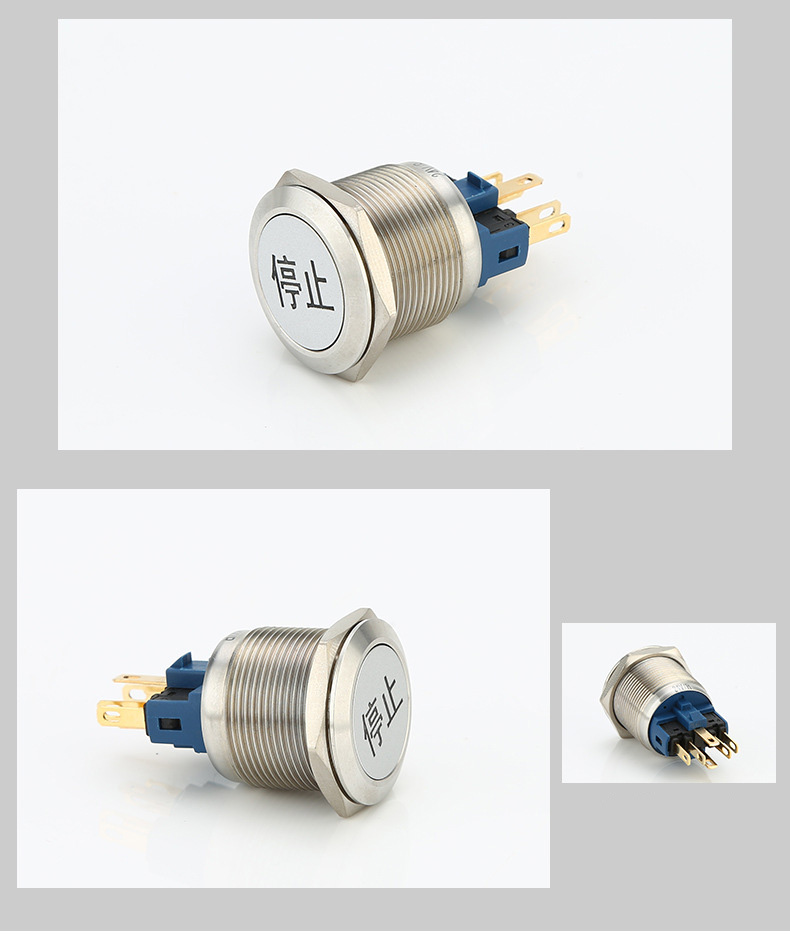

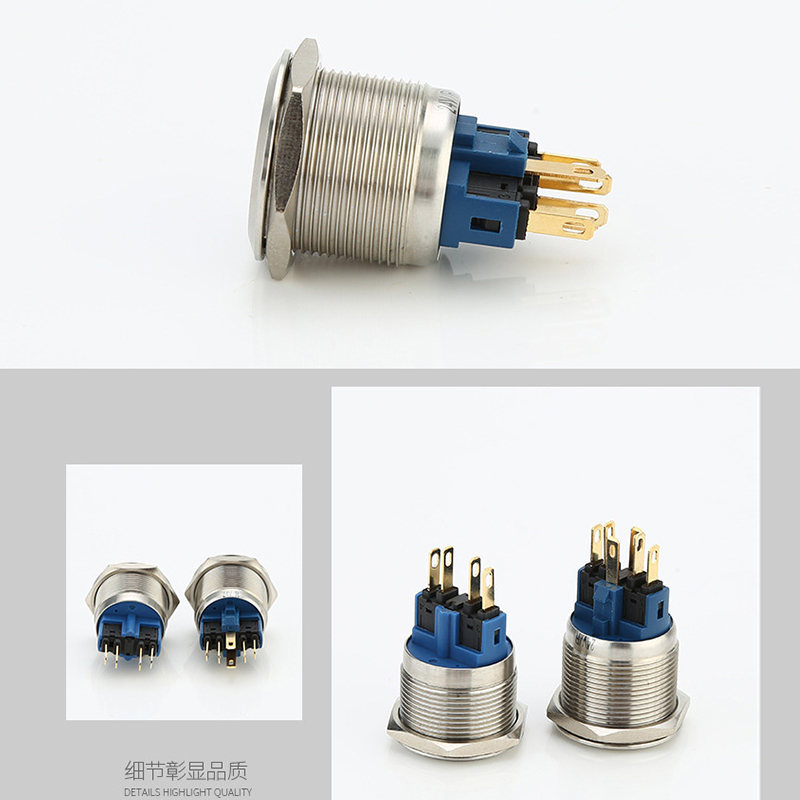

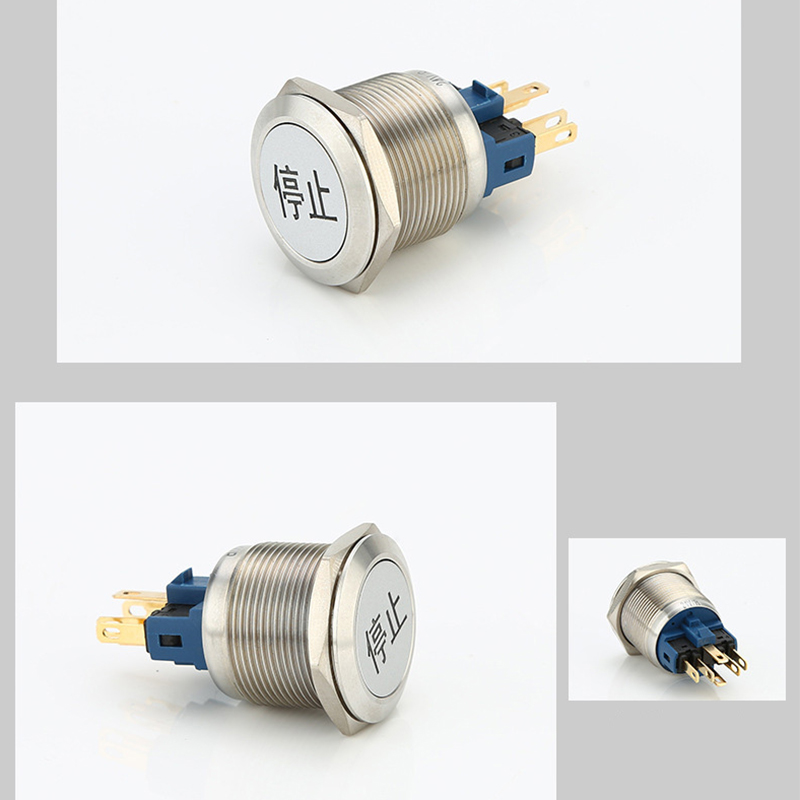

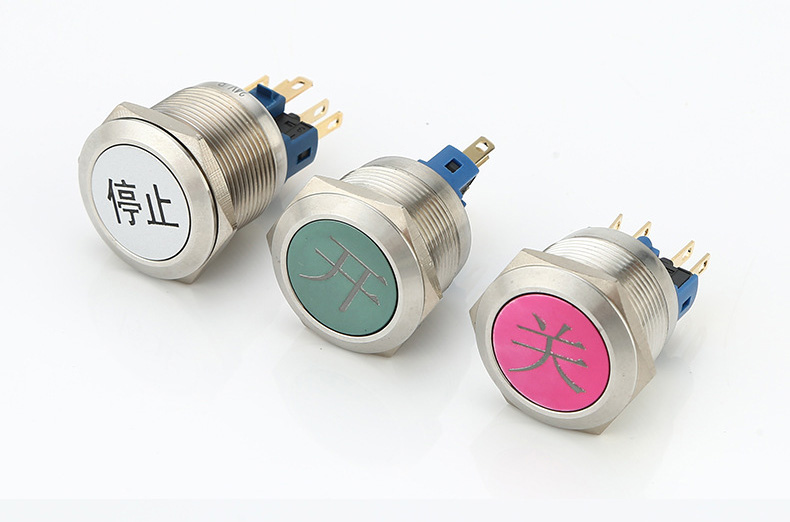

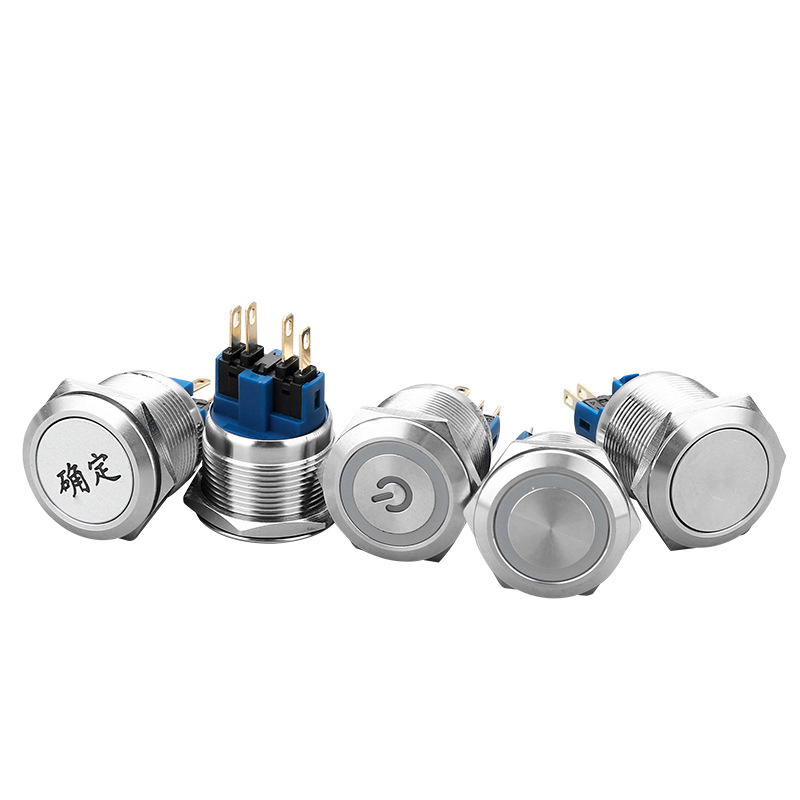

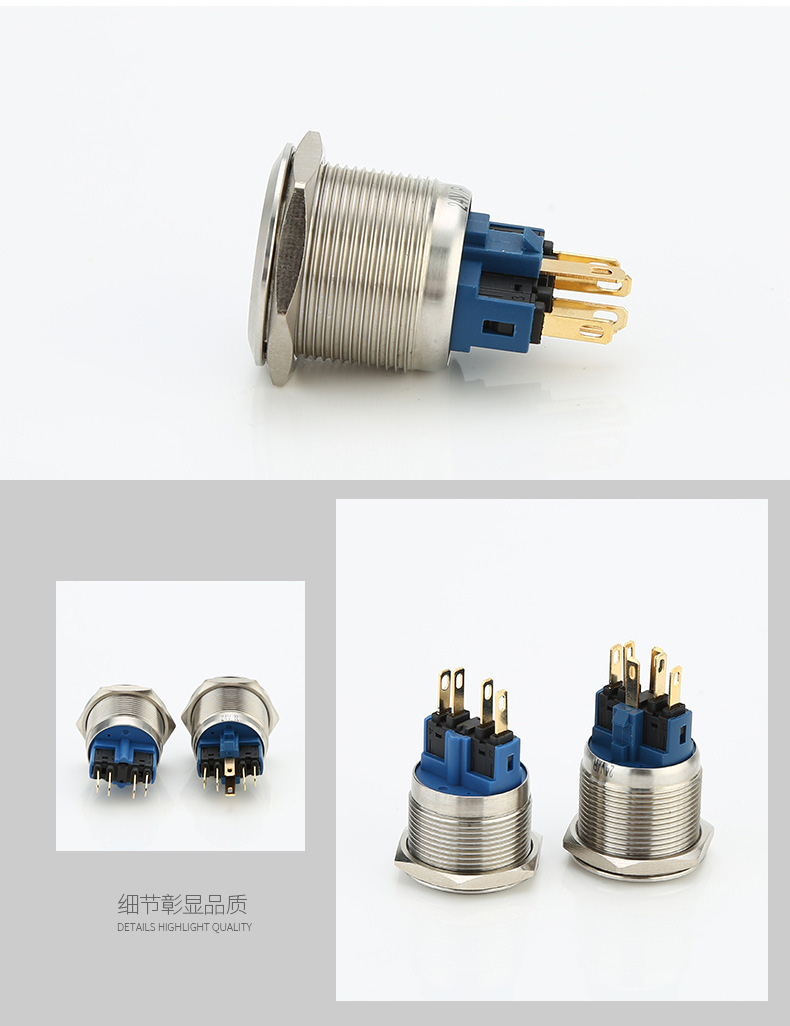

Metal button switch LED lighted waterproof and dustproof switch
Specification:
Product name: 22mm latching Anti Vandal Swtich
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A1PZ |
| Mounting Hole | 25mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

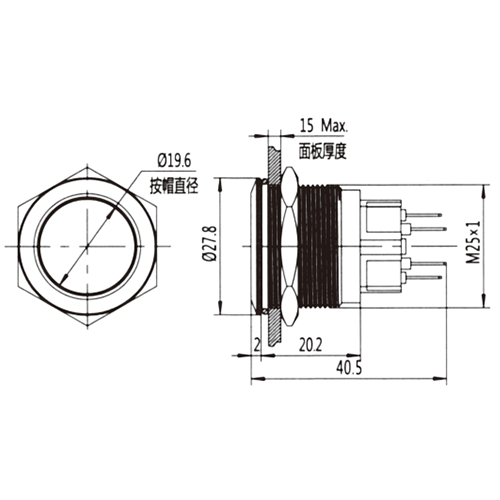

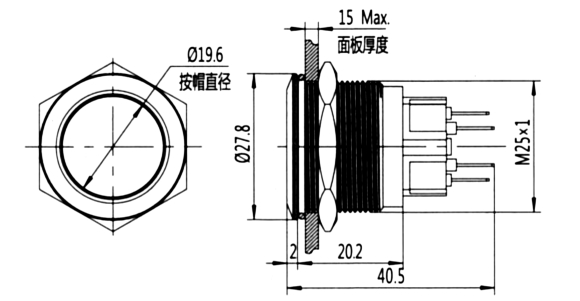

Drawing
Product Features : Metal push button switches use advanced contact technology to ensure a stable, low-resistance electrical connection, resulting in reliable switching performance and minimal power loss. Its superior contact design supports high electrical conductivity, making it suitable for demanding electrical control applications.
Application : Power Distribution Systems: Metal push-button switches are used in switchboards, electrical cabinets, and control rooms to manage circuit connections and equipment operation. Its reliable contact technology facilitates efficient and safe power distribution, ensuring stable performance and safety of electrical systems.
