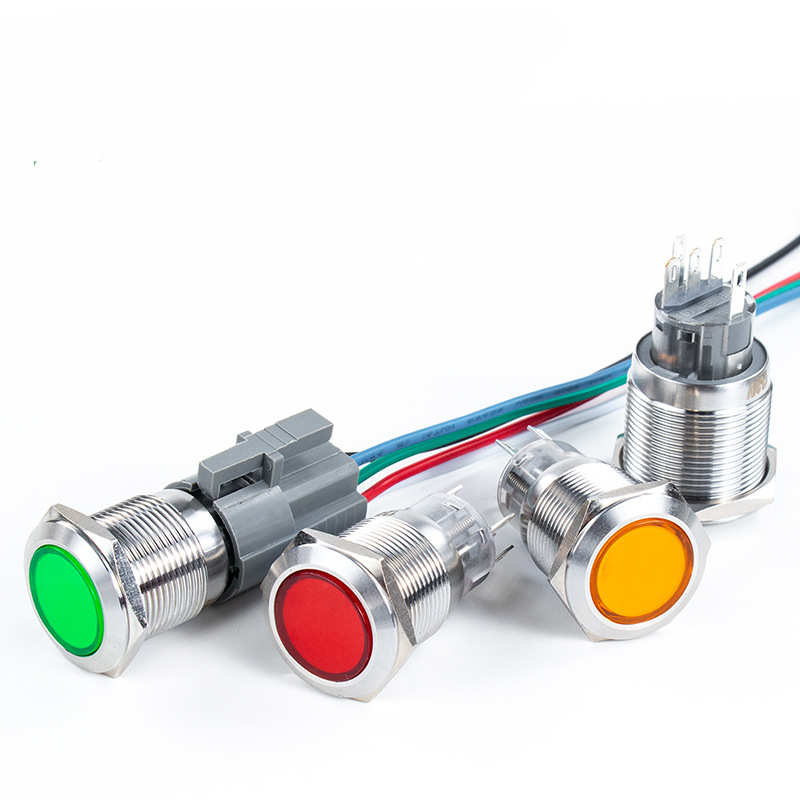

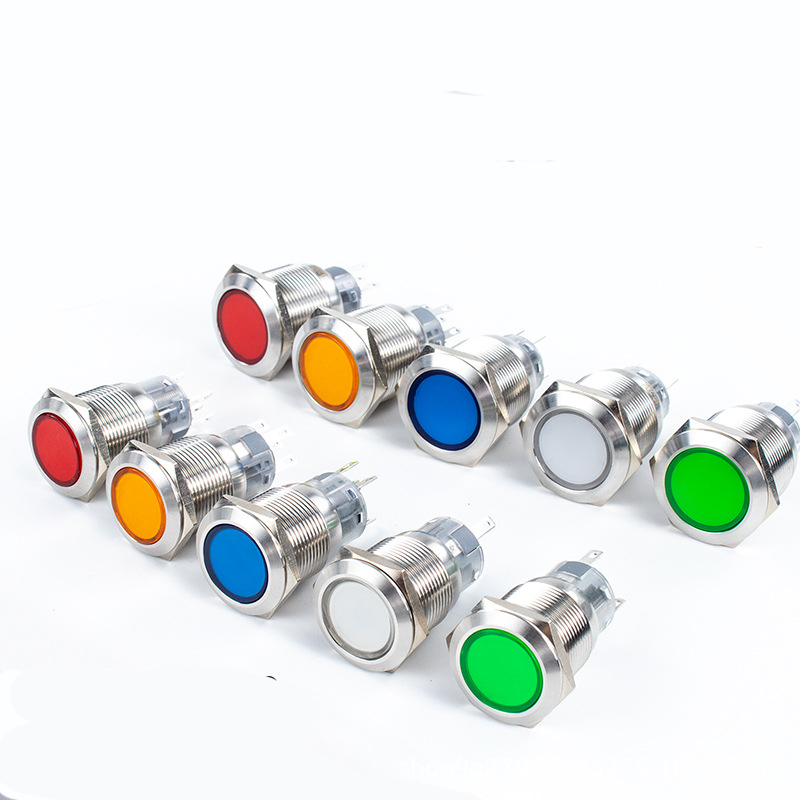

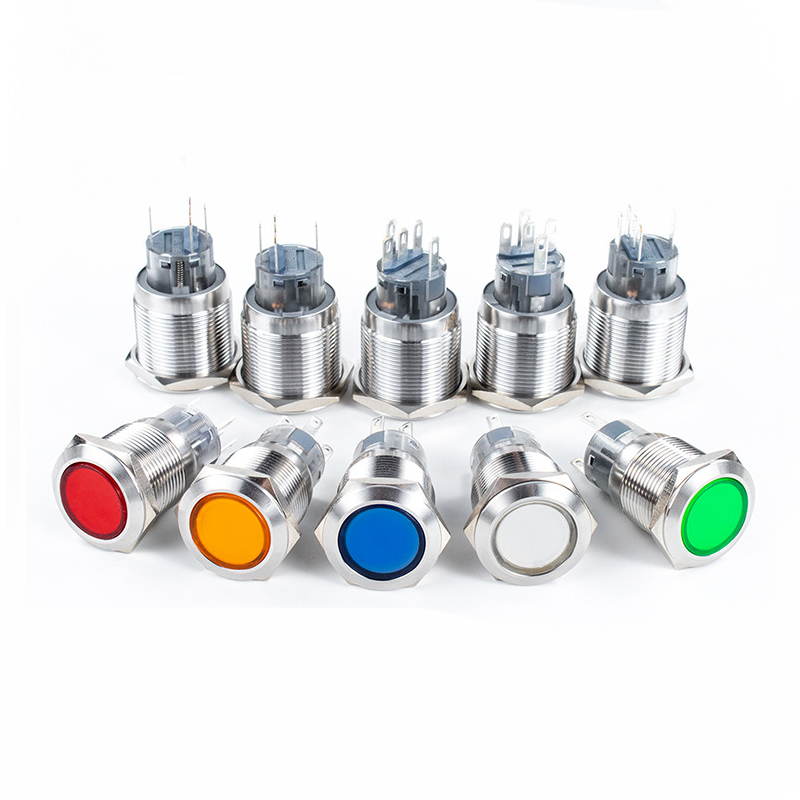

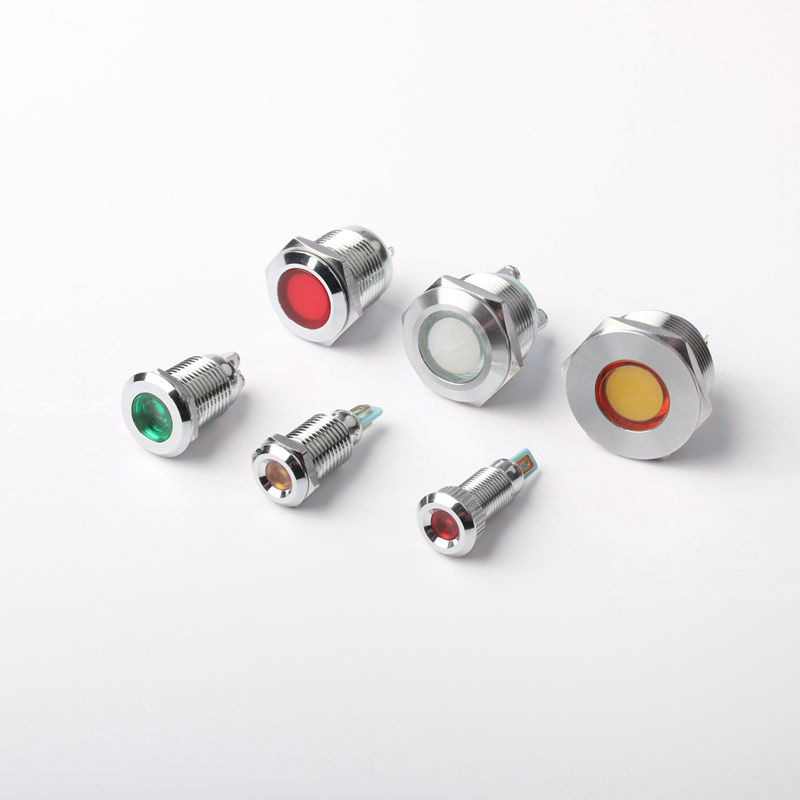

LED metal indicator light stainless steel power signal light 6/8/12/16/19/22MM red and green two colors
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:19mm
| Product Name | Push button switch |
| Model | YL19C-XD10 |
| Mounting Hole | 19mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

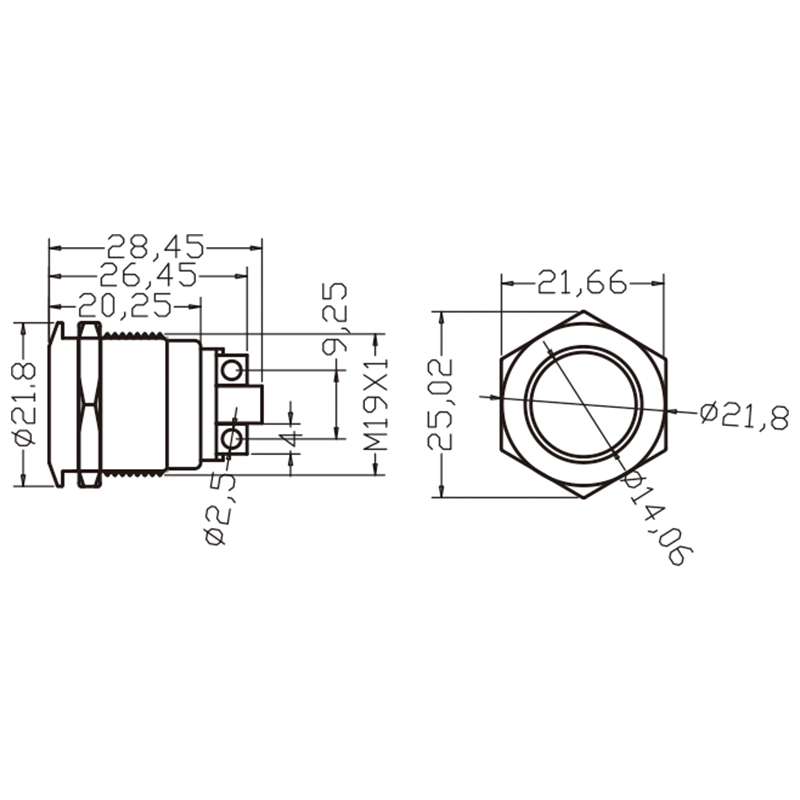

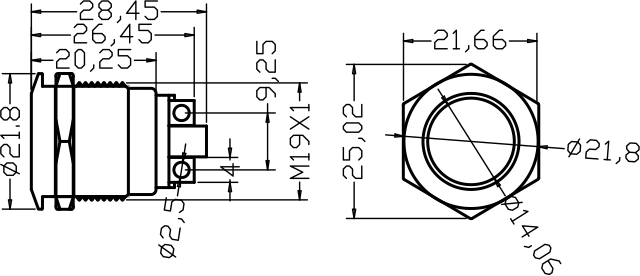

Drawing
Product Features : This metal indicator light has a wide operating voltage range and is compatible with a variety of electrical systems and can adapt to fluctuating voltage levels without affecting performance.
Related Applications:
Vehicles (e.g., trucks, buses)
Aircraft
Railway systems
Product Introduction: The metal indicator light is an integral part of machinery and equipment in the construction and mining industries. Its rugged construction and high-visibility indicators make it suitable for use in heavy machinery, conveyor systems, and construction equipment, providing clear status indication in challenging environments.
