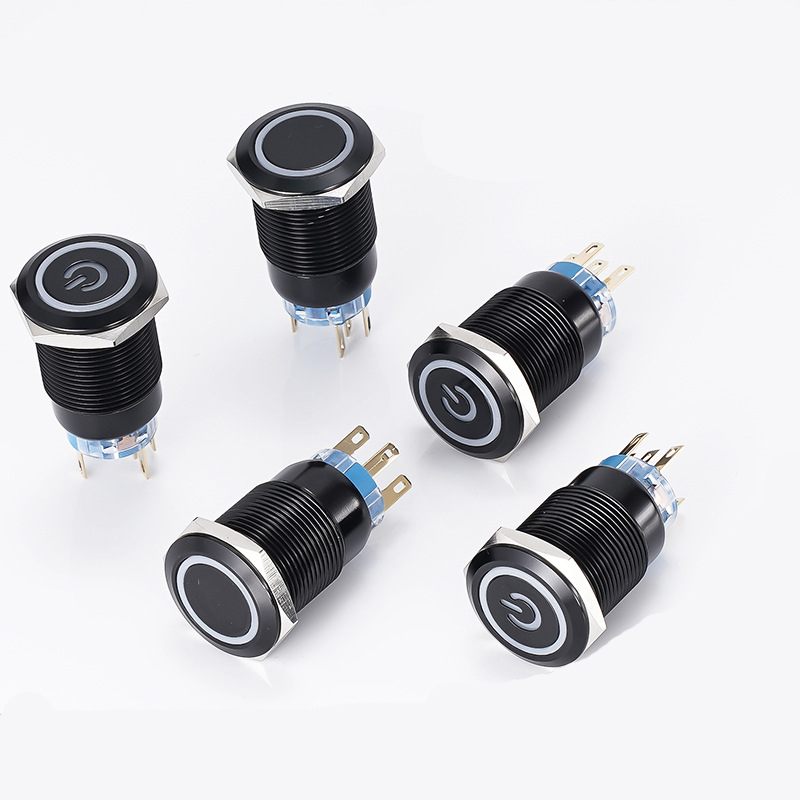

Aluminum alloy oxidation black color push button switch with led
Specification:
Product name: Aluminum alloy oxidation black color push button switch with led
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-B |
| Mounting Hole | 19mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |
Drawing
product description: Anti-vandal switch is a specially designed switch that is mainly used in environments and applications that need to resist malicious damage. It is made of strong and durable materials and is impact-resistant, waterproof, dust-proof, and anti-corrosion, and can effectively protect the switch from external interference and damage. The appearance design of Anti-vandal switch is simple and elegant, and common shapes include round, square and rectangular. It usually has a metal shell, such as stainless steel, aluminum alloy, etc., which provides strong and durable protection. The switch panel is generally embedded with luminous indicators, and sometimes is equipped with anti-virtual buttons to enable users to operate more intuitively.
In addition, anti-vandal switches are often bulletproof, scratchproof, and shatterproof, ensuring long-term reliable use. Related applications: Anti-vandal switch has a wide range of application fields, and is especially suitable for environments and occasions that require high switch protection, including but not limited to the following aspects: Public transportation: In public transportation such as subways, trains, and buses, Anti-vandal switch can be used for door control, emergency alarm, lighting control and other functions to ensure the safety and smooth operation of passengers. Security system: Anti-vandal switch can be installed on access control equipment, alarm devices, monitoring systems, etc. in the security system to ensure anti-vandalism and improve safety. Industrial equipment: Due to the sturdiness and durability of A
nti-vandal switch, it is often used in industrial equipment, mechanical equipment and control panels to achieve reliable operation and protection. Electronic products: Anti-vandal switches in electronic products such as televisions, computers, game consoles, etc. can provide longer service life and better user experience. Public places: In public places such as shopping malls, hospitals, schools, etc., Anti-vandal switches are widely used in control panels of various devices to prevent malicious damage and meet public safety needs. Summarize: Anti-vandal switch is a durable, anti-vandal switch product that is widely used in public transportation, security systems, industrial equipment, electronic products, and public places. Its excellent performance and reliability provide users with a better user experience and security
