Specification:

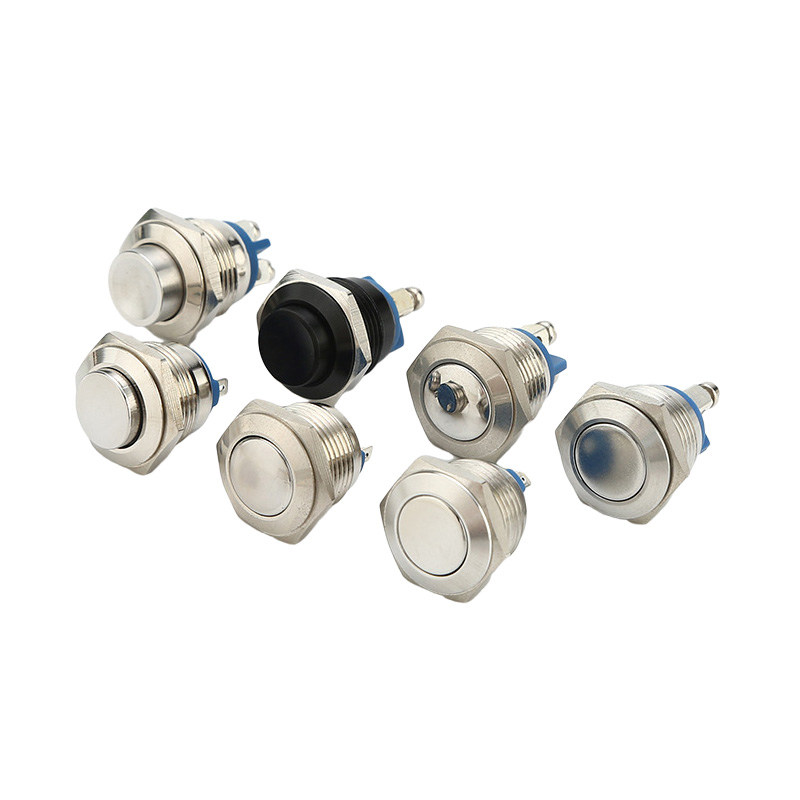

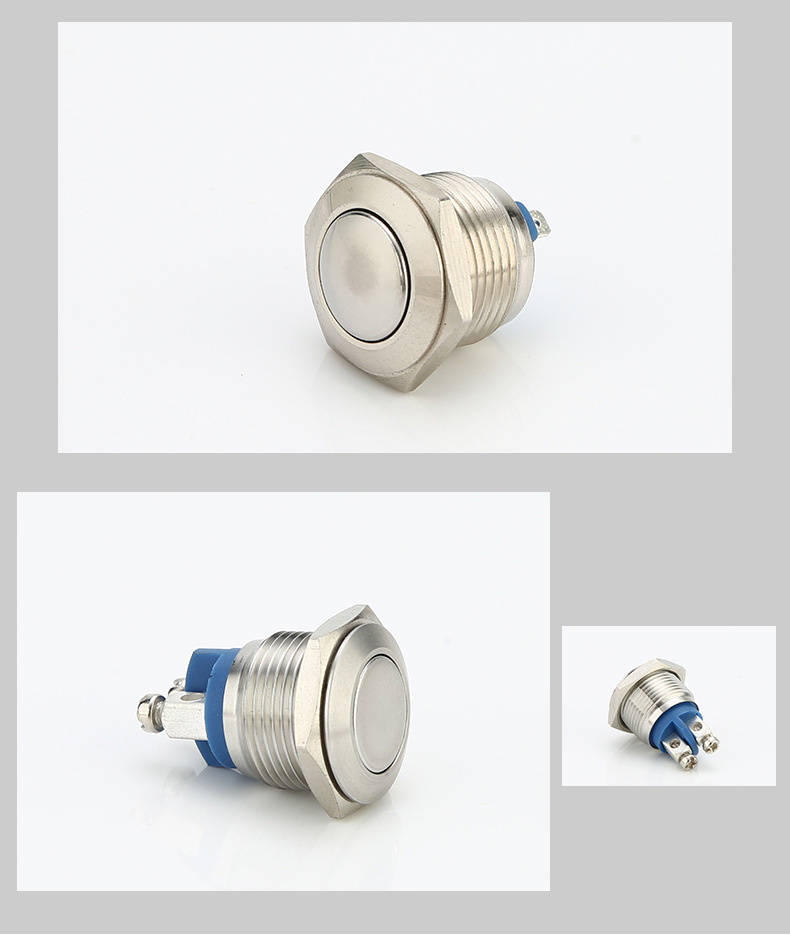

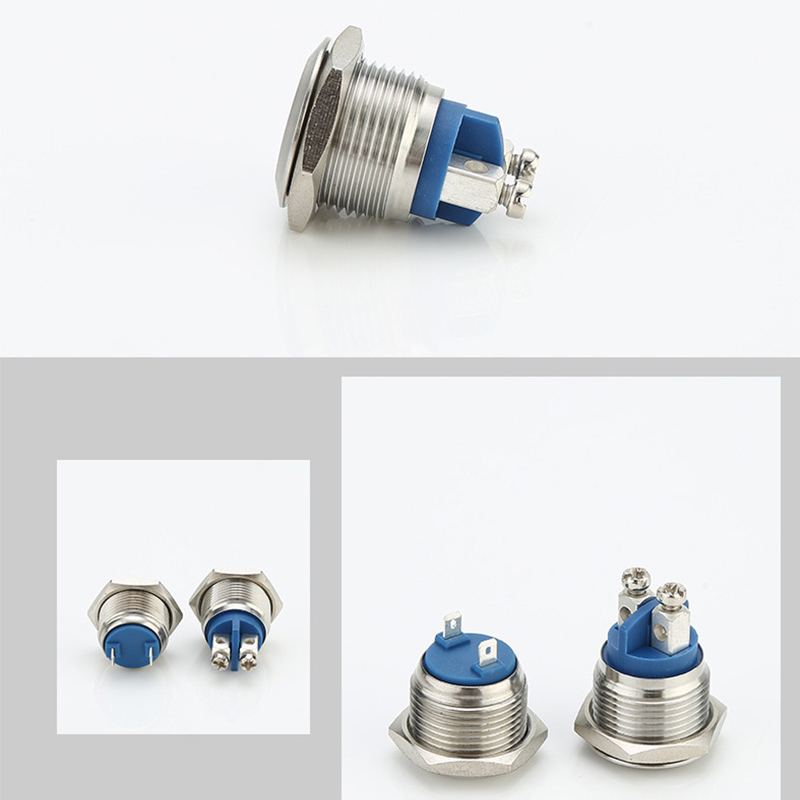

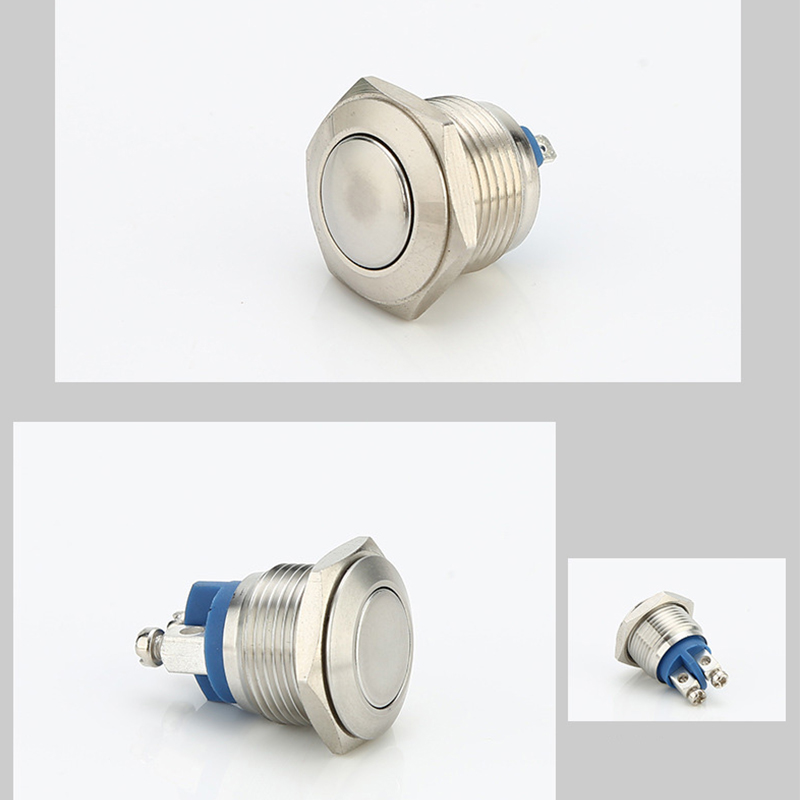

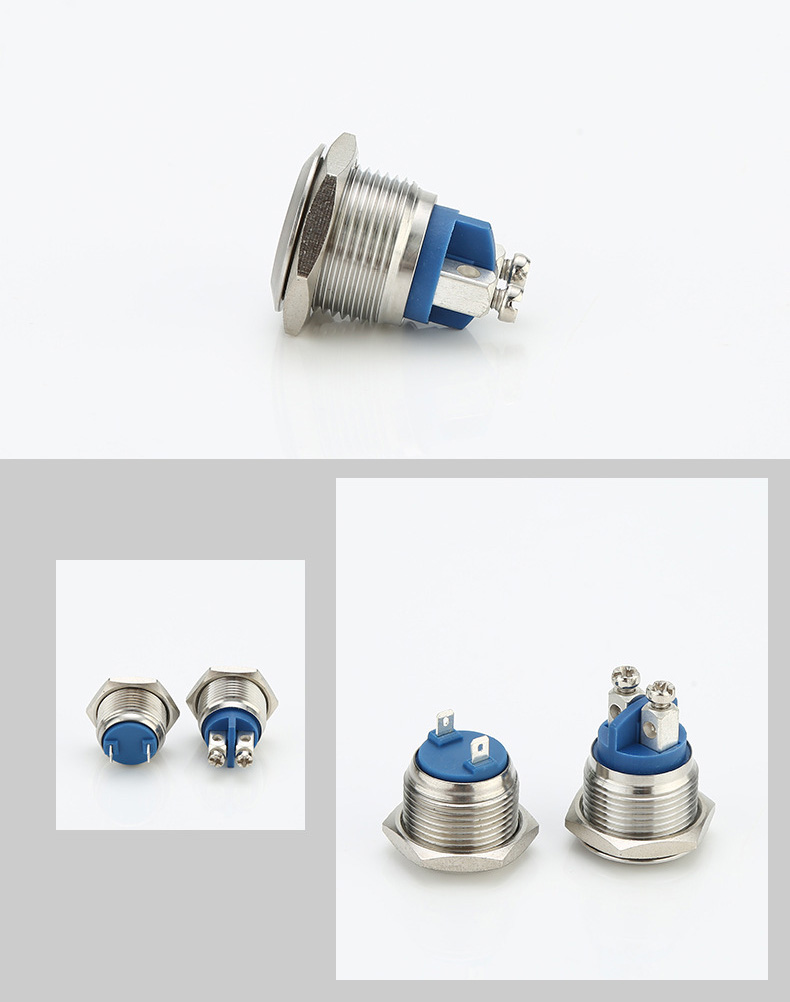

Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-A11P |
| Mounting Hole | 19mm |
| Operation Type | Momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

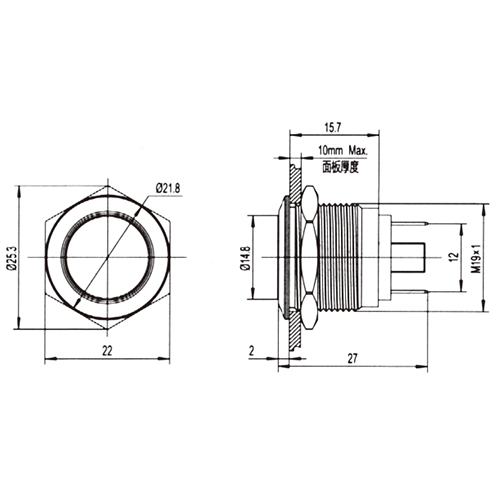

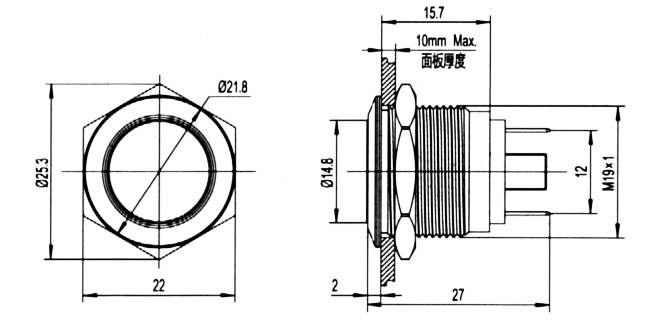

Drawing
Product introduction: This heavy-duty metal push button switch is designed to handle high current applications, making it suitable for use in industrial power distribution and control systems. With its high current rating and durable construction, it is commonly used for circuit protection and control in power generation facilities, substations, and industrial power plants.
Application: Power Distribution and Industrial Control: These switches are integrated into switchboards, industrial control systems and heavy machinery for high current switching and circuit protection in industrial and power generation environments.
