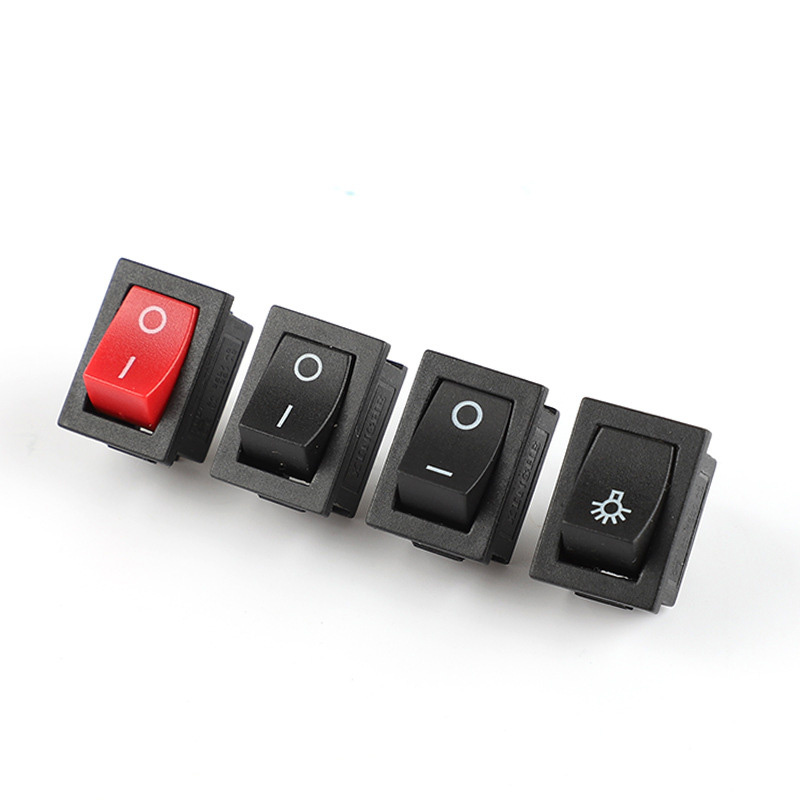

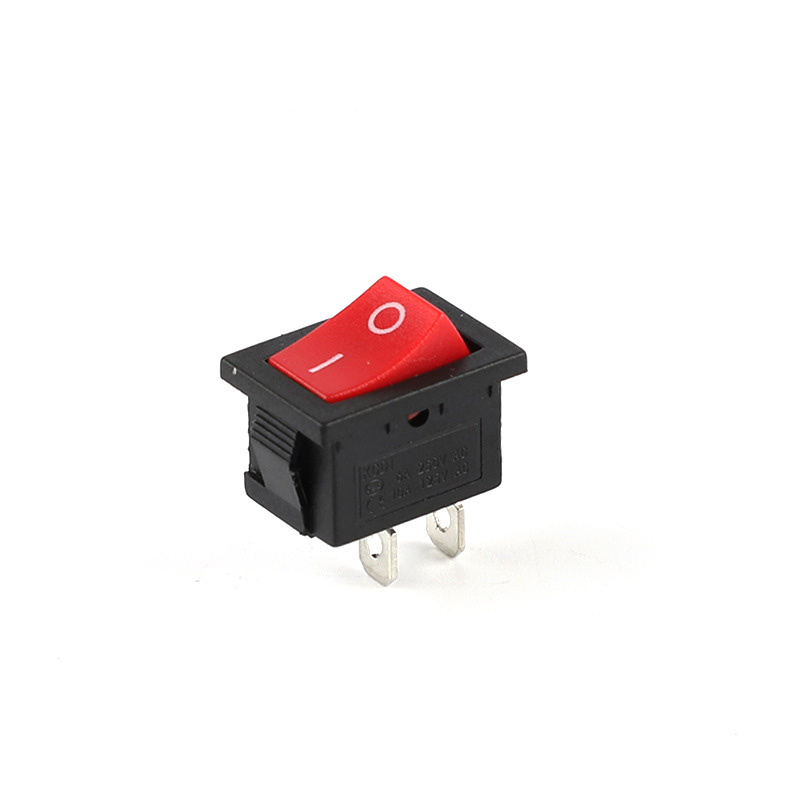

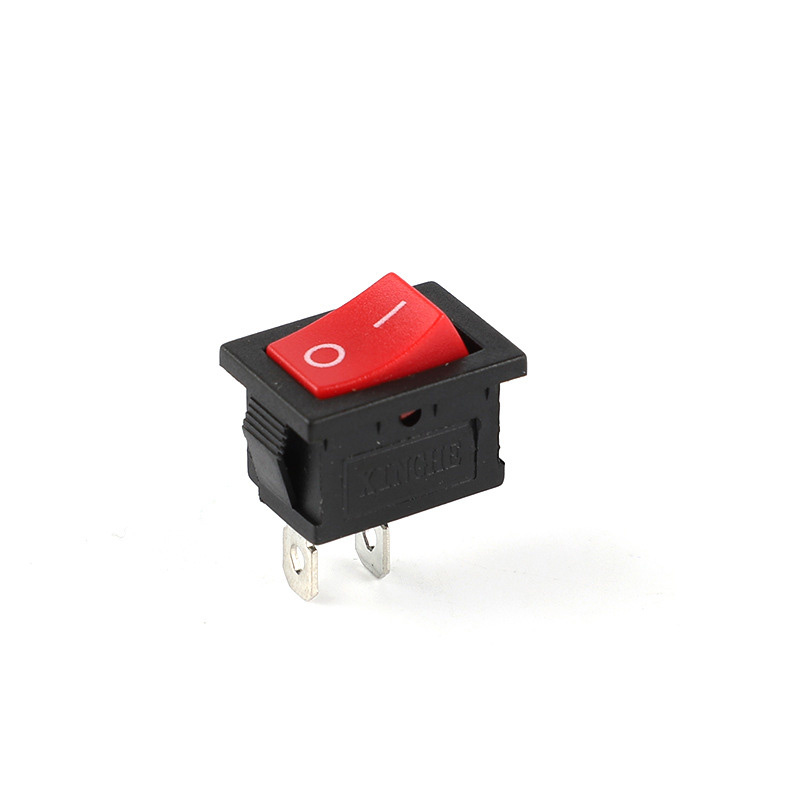

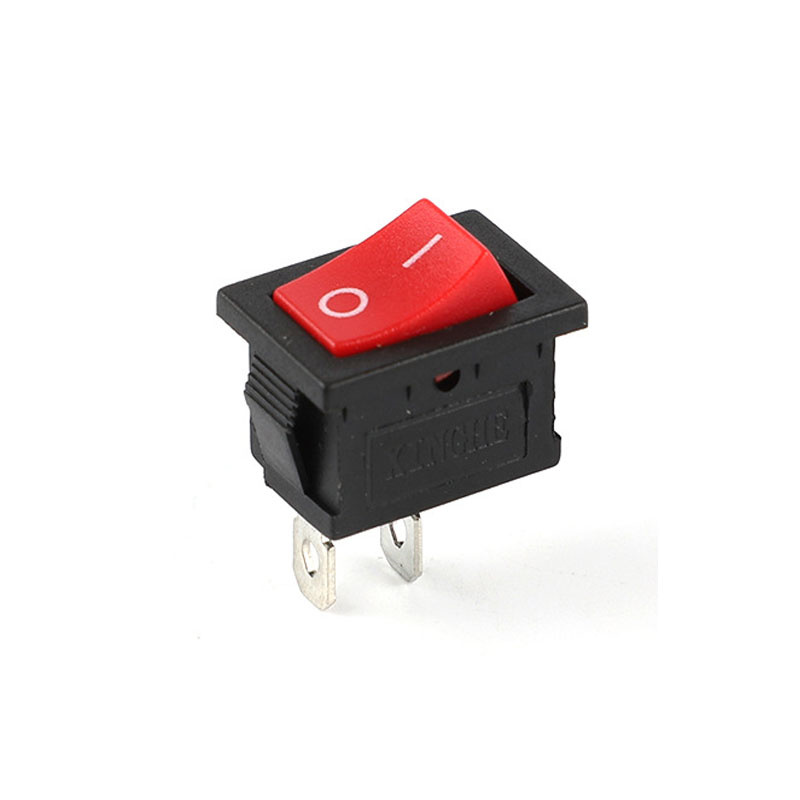

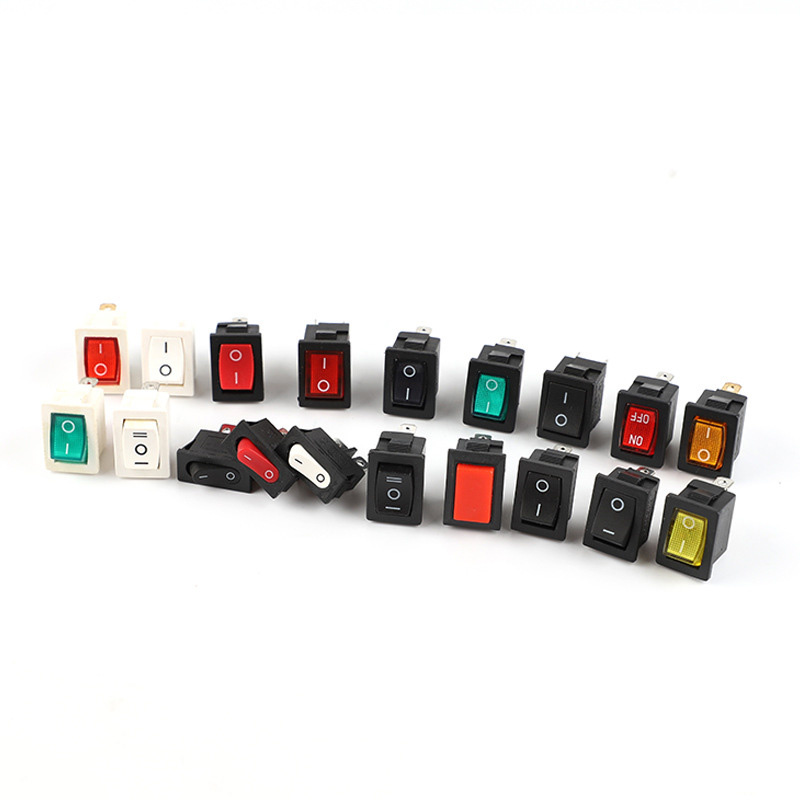

6A/250VAC, 10A/125VAC ON OFF Rocker Switch

Parameter

4 terminal rocker switch

Rated voltage/current:6A/250VAC, 10A/125VAC
Insulated resistance: ≥100MΩ
Contact resistance: ≤100MΩ
Dielectric strength: ≥1500V/5S
Endurance: ≥10000
Ambient temperature: T85 T105
Circuit:

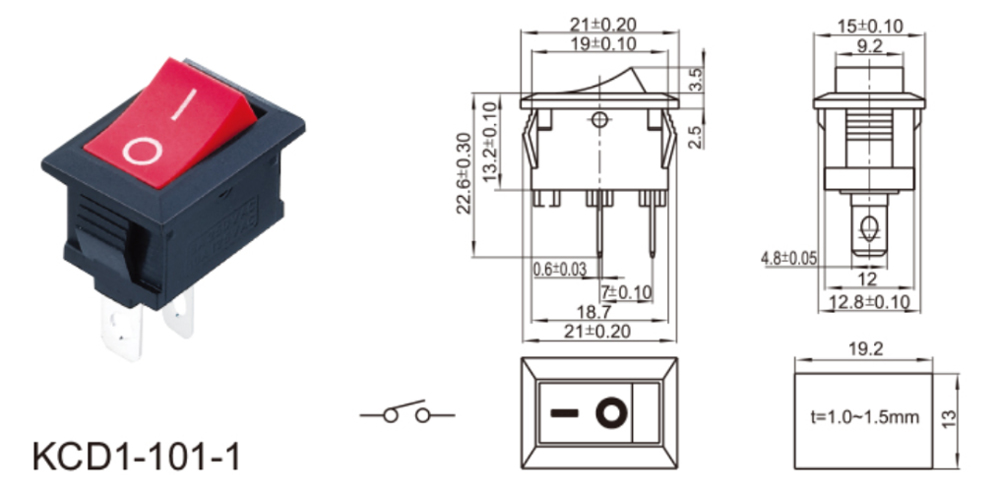

Drawing

Type of switch

SPST: 1 moving contact and 1 stationary contact. only 1 channel
SPDT: 1 moving contact and 2 static contacts, (the static contacts on both sides can be connected respectively)
Double pole single throw: 2 moving and 2 stationary contacts, with 2 channels
Double pole double throw: 2 moving contacts and 4 static contacts, there are 4 channels (2 static contacts on both sides can be connected respectively)
Introducing Our High Quality Rocker Switches: Rugged, Reliable, Durable

Our rocker switches are premium products that have undergone rigorous quality testing to ensure their reliability and durability. Made of high-quality materials, the switch can withstand high-frequency switching operations and has a long service life. It is ideal for a variety of applications where reliable and stable performance is a top priority.

One of the main advantages of this rocker switch is the low contact resistance. This capability ensures the stability and reliability of electronic equipment, making it a must-have for any industry that demands precision and accuracy. Plus, it’s completely waterproof and dustproof, making it ideal for use in harsh environments where other switches might fail.

This high quality rocker switch is suitable for a wide range of applications including automotive, industrial and marine. It can be used to control various electrical systems in these applications, such as power windows, pumps, motors and other equipment. This switch excels in applications requiring reliable and long-lasting performance.

In conclusion, our high quality rocker switches offer the best combination of quality, reliability and durability. It is a must-have for anyone who demands excellence in their electrical equipment. Whether you are an industrial builder or an automotive builder, this switch is guaranteed to provide years of reliable service. Buy a quality switch today and experience the difference it can make in your equipment.

Application

Rocker switches are used in water dispensers, treadmills, computer speakers, battery cars, motorcycles, ion TVs, coffee pots, power outlets, massage machines, etc., mainly for household appliances.
