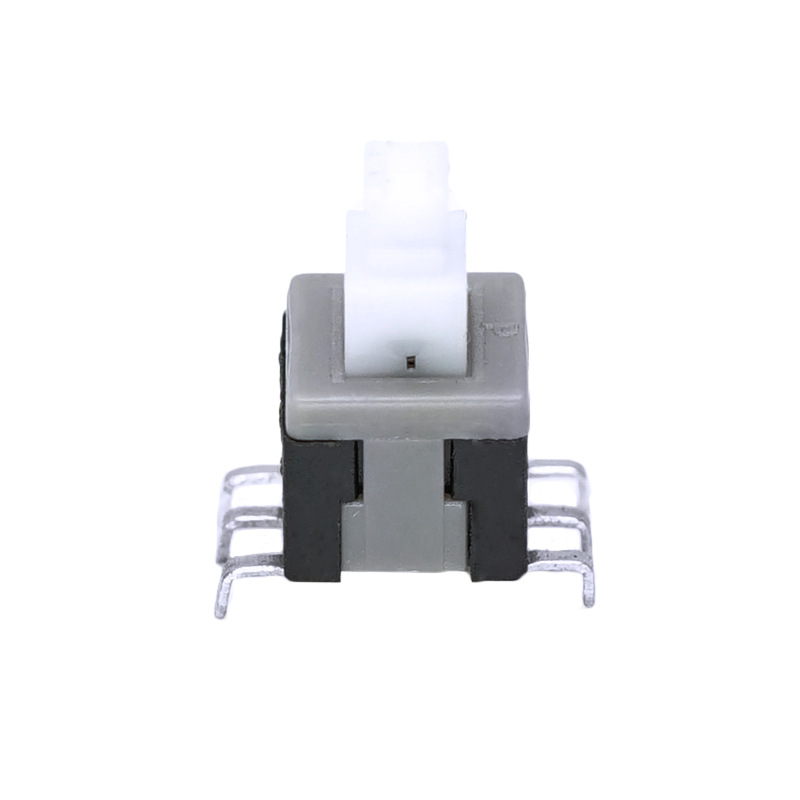

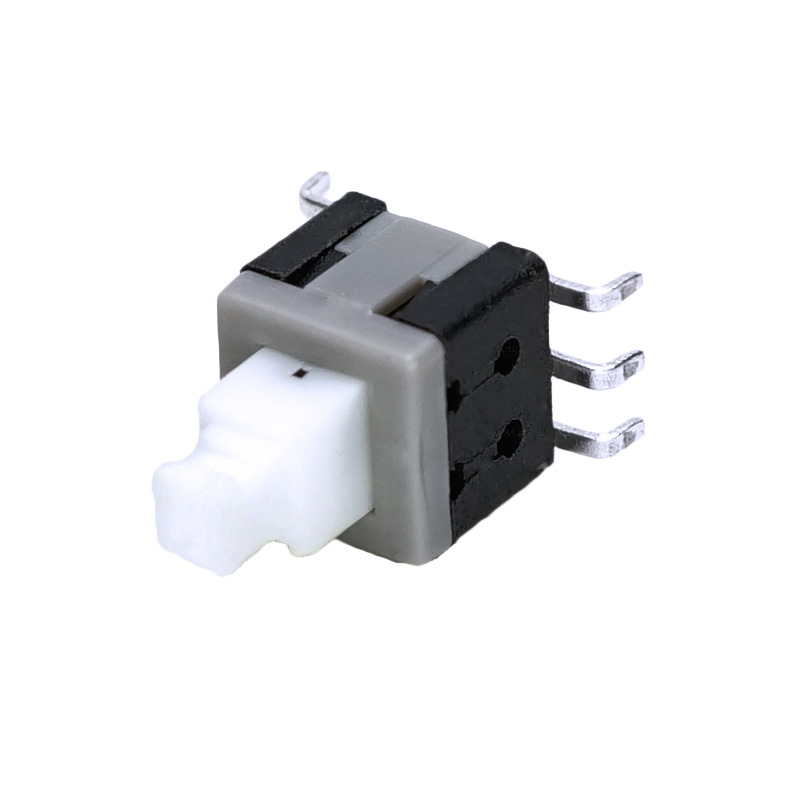

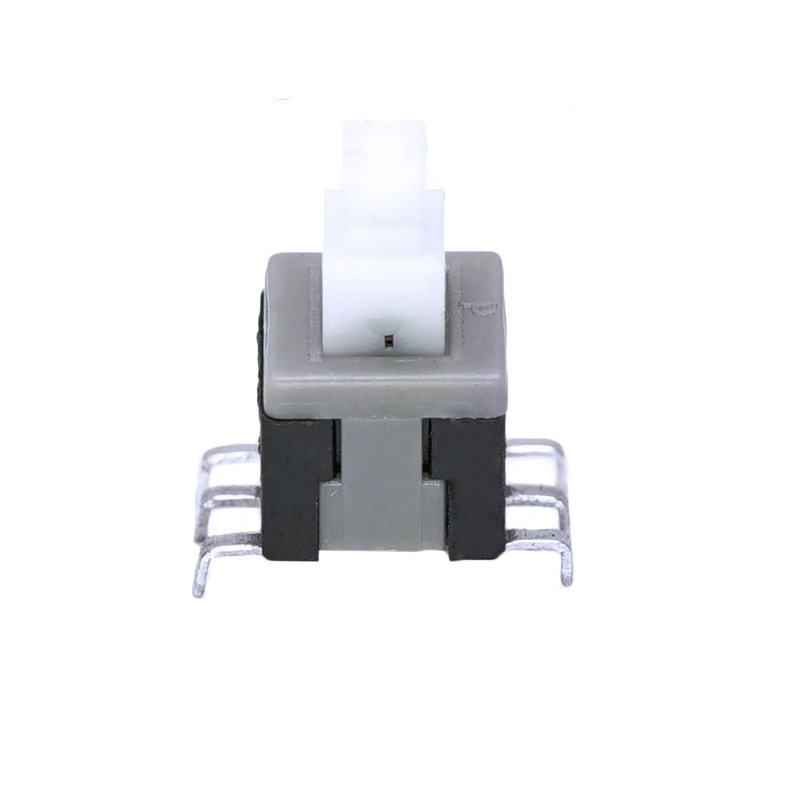

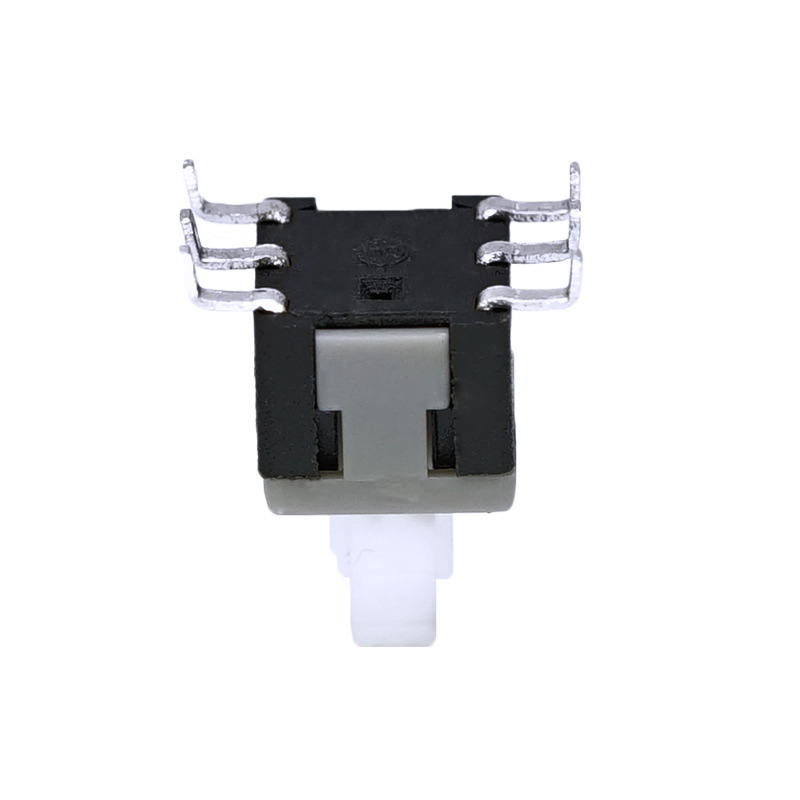

5.8*5.8mm push button switch smd non-latching self-locking non-lacthing

Short Description:

Product name: Push Button Switch/ self locking switch
Operation Type: Momentary type /Latching type
Rating: DC 30V 0.1A
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC


Product Detail

Product Tags

Product Name Push button switch
Model KFC-01-58D-0GZ
Operation Type momentary
Switch Combination 1NO1NC
Head Type High head
Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Operating Temperature -20°C ~+55°C

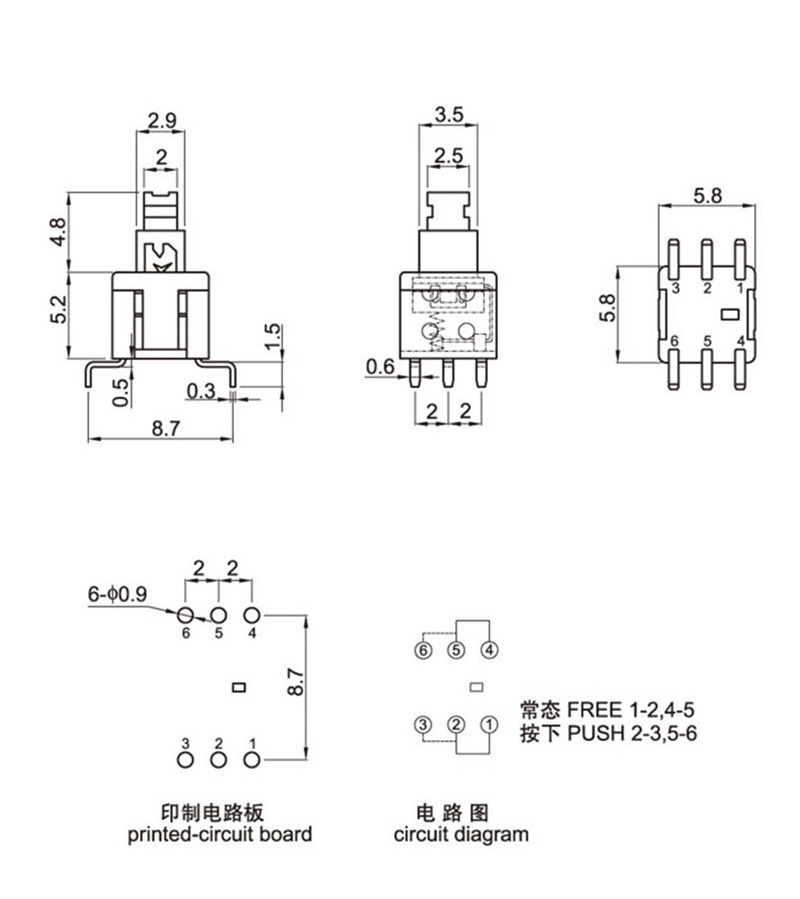

PC端图片1

IIntroducing our latest innovation in switch technology – 5.8*5.8mm SMD non-latching self-locking push button switch. This cutting-edge switch is designed to provide seamless and reliable performance in a variety of applications, making it an ideal choice for your electronic equipment.



The switch’s non-latching self-latching feature ensures that once pressed, it remains in the on or off position until pressed again, providing convenient, safe operation. This makes it ideal for applications that require stable and consistent switching states, such as industrial control systems, consumer electronics, automotive electronics, and more.



This SMD push button switch has a compact size of 5.8*5.8mm, which is suitable for use in space-constrained designs and provides greater flexibility for product development. Its surface mount design also allows for easy integration into PCB layouts, saving valuable space and simplifying the assembly process.



The switch’s high-quality construction ensures long-term reliability and durability, making it a cost-effective solution for your electronic design needs. Its non-latching self-locking mechanism is engineered to withstand heavy use without compromising performance, giving you peace of mind throughout the life of the product.



Whether you are designing a new electronic device or want to upgrade your existing electronic device, our 5.8*5.8mm SMD non-latching self-locking push button switch is the perfect choice. Its versatile applications and reliable performance make it a valuable addition to any electronics design project.



Experience the convenience and reliability of our self-latching switch technology and take your electronics to the next level with our innovative push button switches. Choose quality, choose reliability, choose our 5.8*5.8mm SMD non-latching self-locking push button switch for your next project.



Application:



Industrial Control Panels



Push button switches are integral components of industrial control panels. They provide operators with a tactile and reliable means of controlling machinery, ensuring efficient production processes and workplace safety. Whether it’s starting a conveyor belt or halting a manufacturing line, these switches play a pivotal role.



Safety Interlocks in Manufacturing



In manufacturing environments, safety is paramount. Our Self-Locking Switch plays a critical role in safety interlock systems, ensuring that hazardous machinery and equipment remain locked in their safe states until specific conditions are met. This application helps protect workers and prevent accidents.
