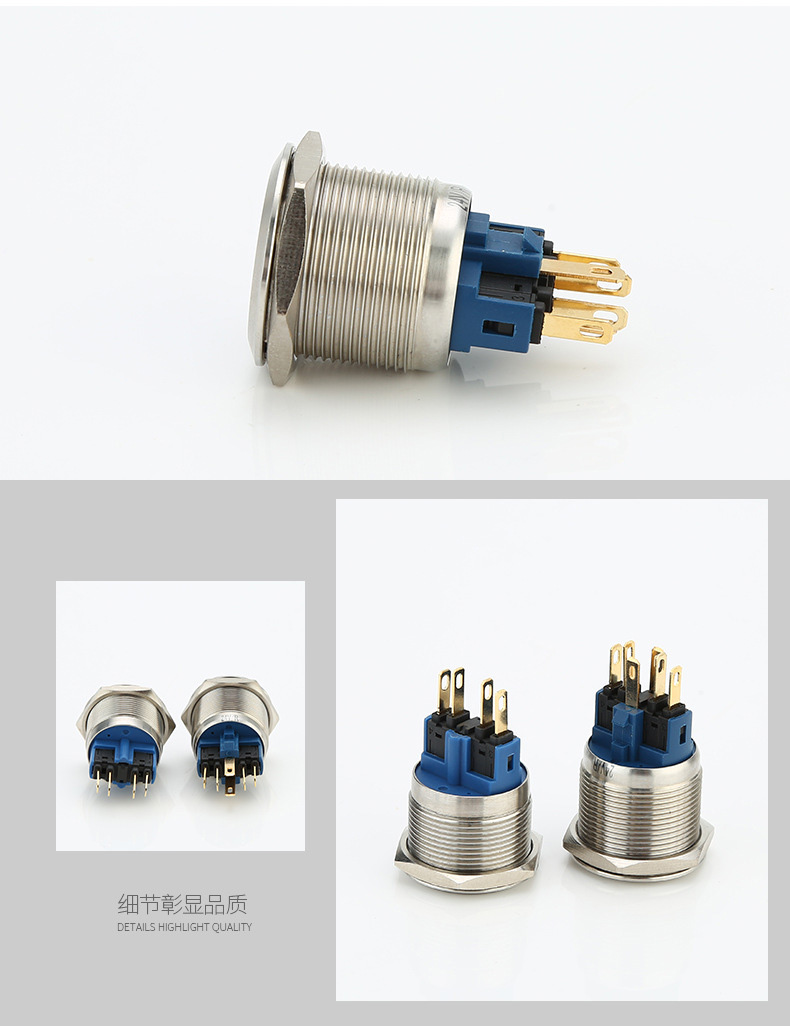

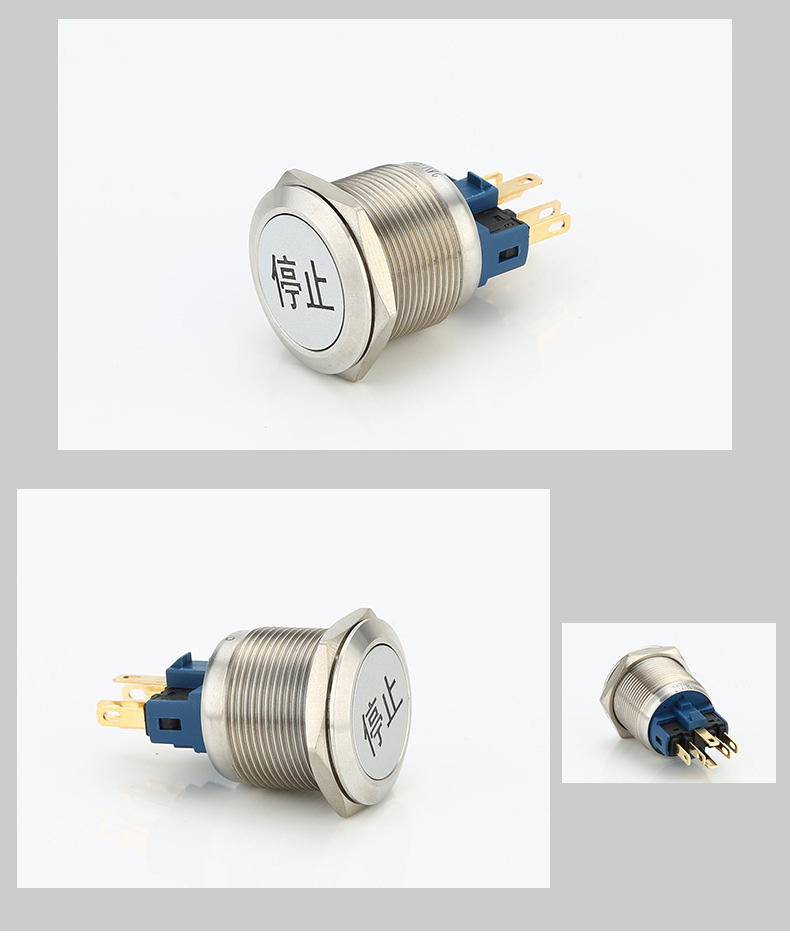

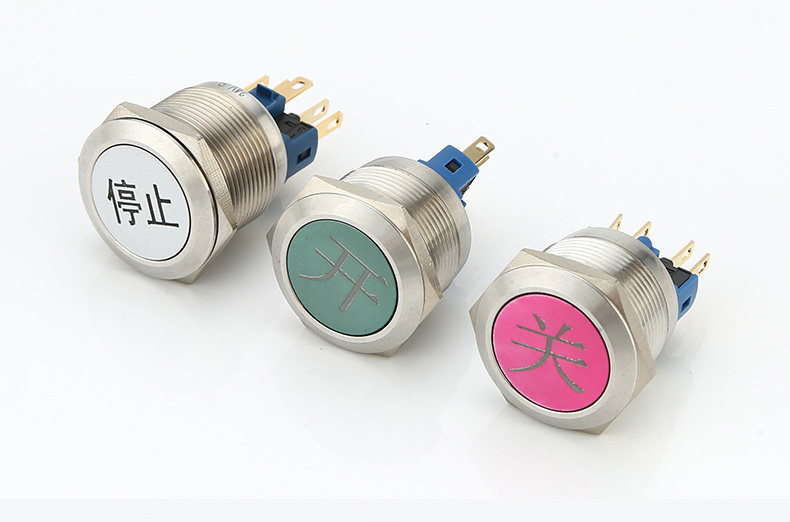

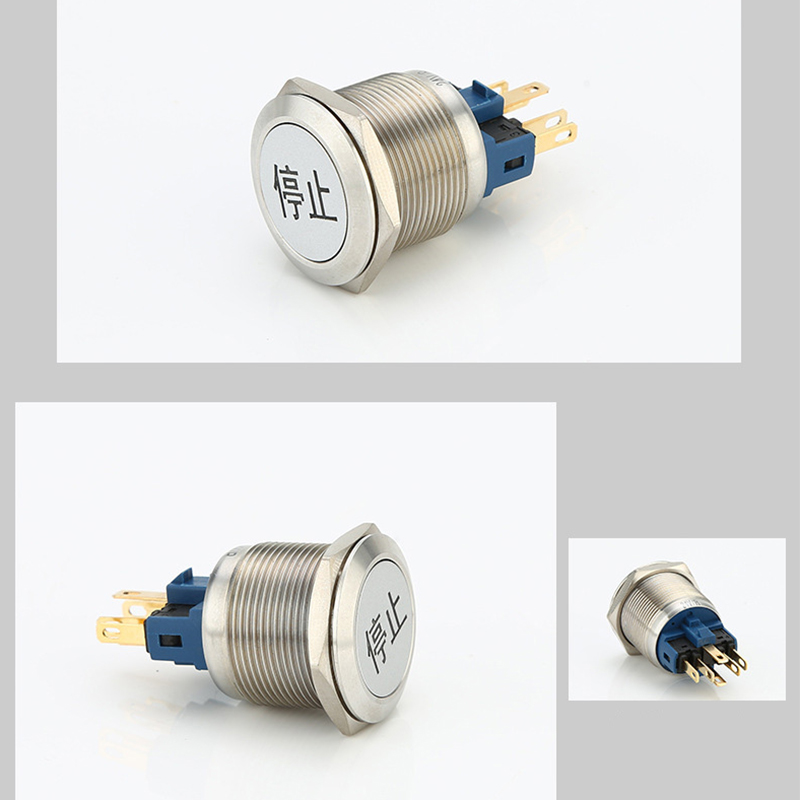

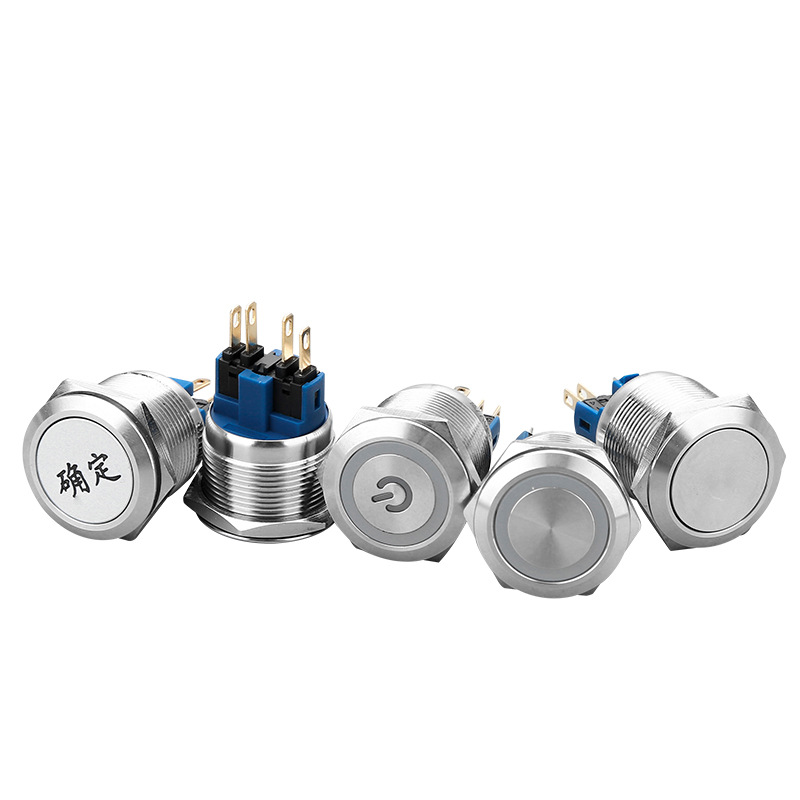

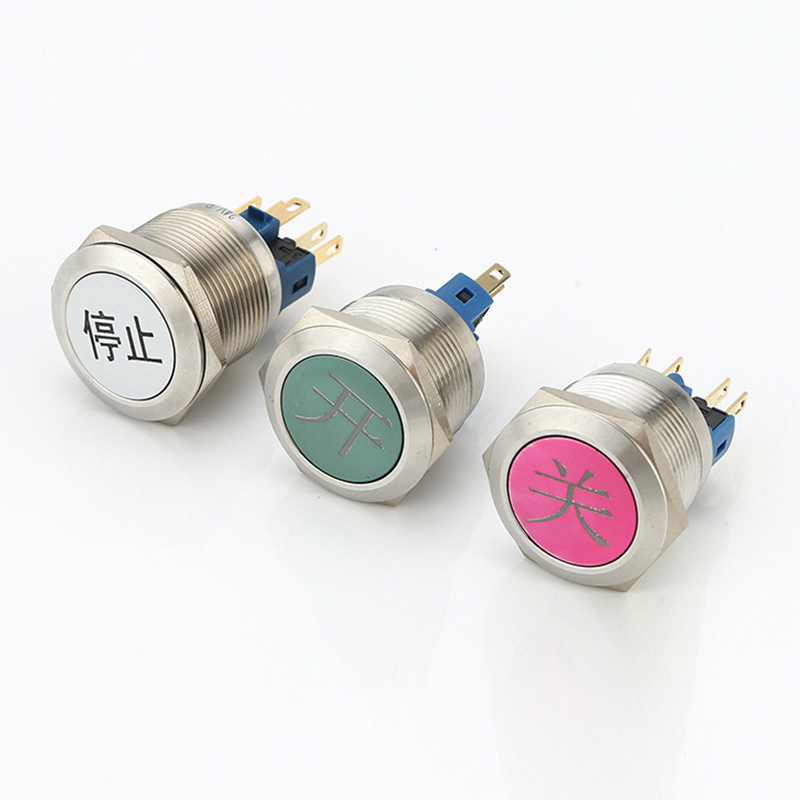

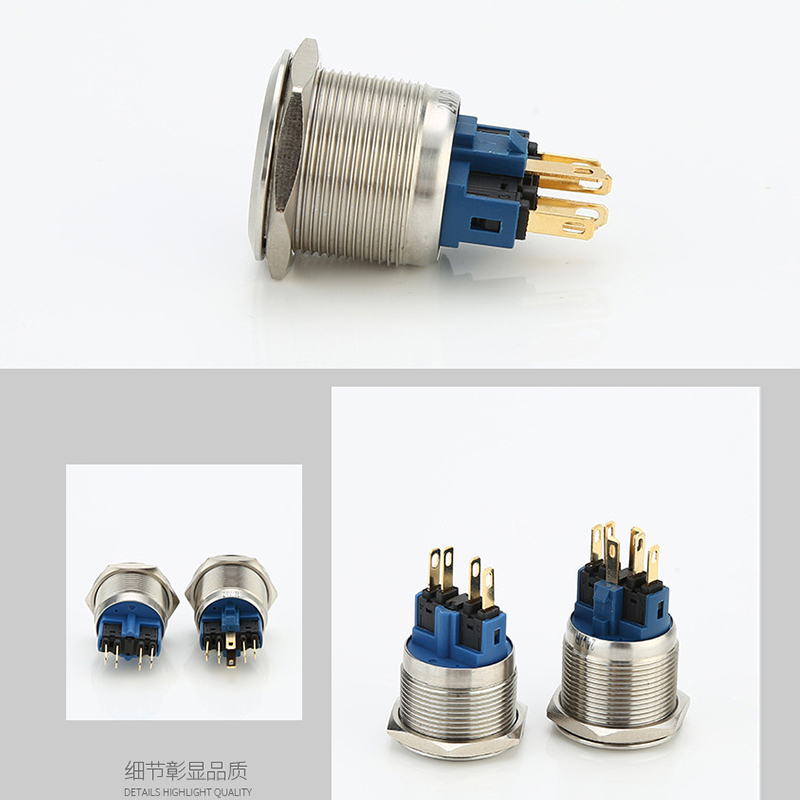

25mm waterproof metal push button switch, self-locking/self-resetting, flat head, high head, stainless steel push button switch
Specification:
Product name: 22mm latching Anti Vandal Swtich
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A1PEZ |
| Mounting Hole | 25mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

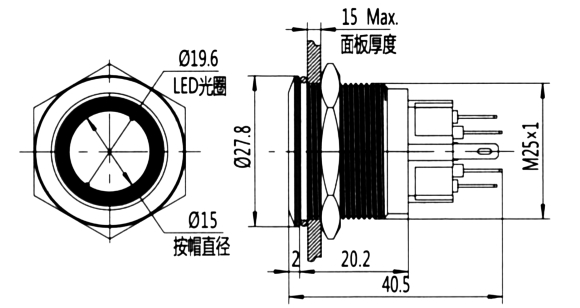

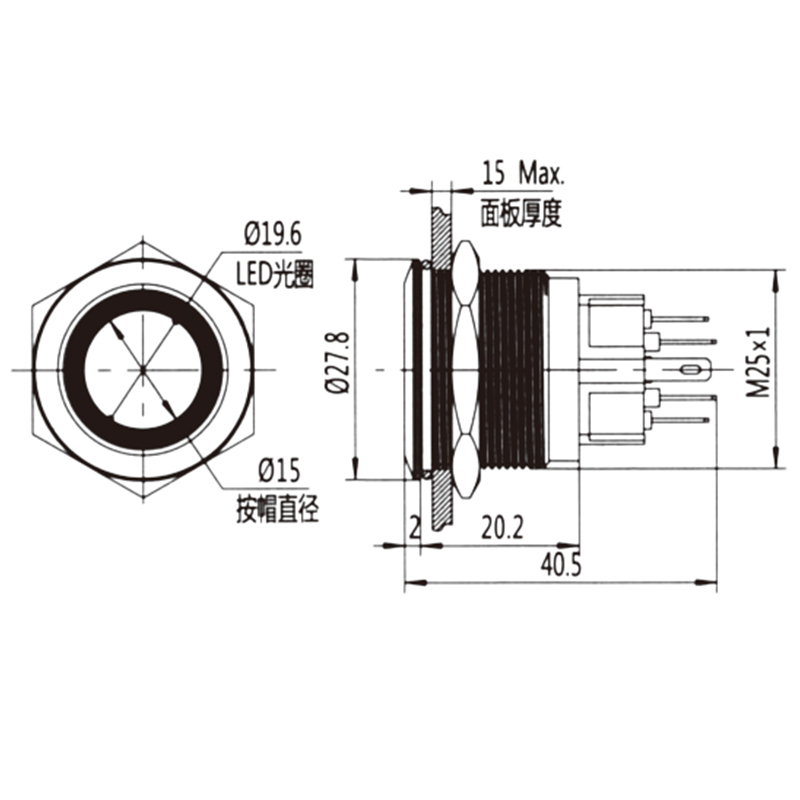

Drawing
Product features : Metal push button switches are available in a variety of colors and finishes, providing aesthetic flexibility to meet different design preferences and application environments. Its customizable appearance makes it suitable for applications where visual appeal and seamless integration with existing equipment or environments are important.
Application : Consumer Electronics: Metal push button switches are integrated into consumer electronics such as audio equipment, gaming peripherals, and home appliances. Its range of colors and finishes allows the creation of visually appealing and user-friendly control interfaces that complement the overall design and user experience of electronic devices.
