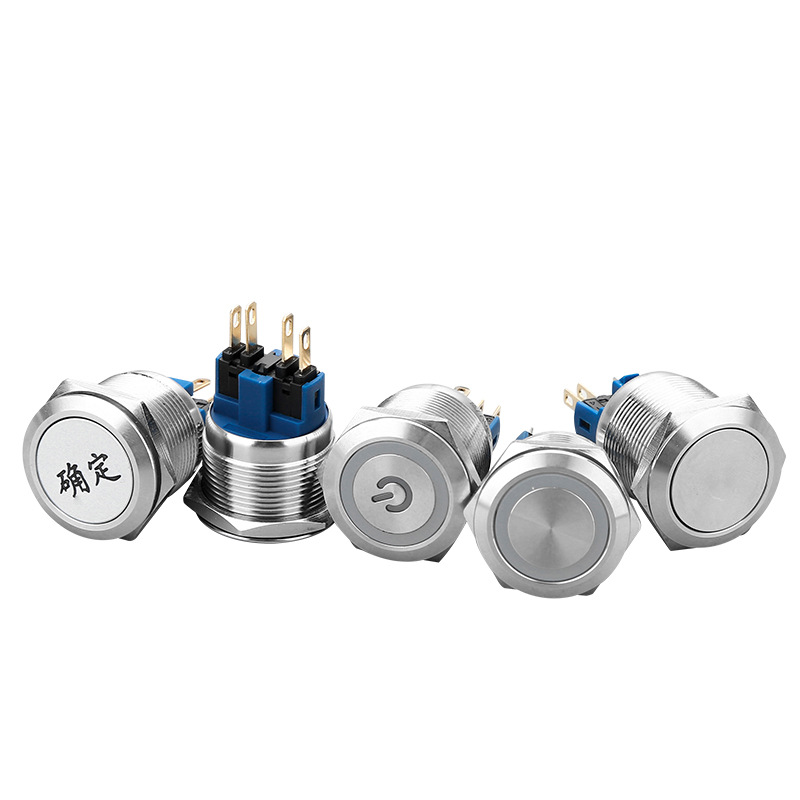

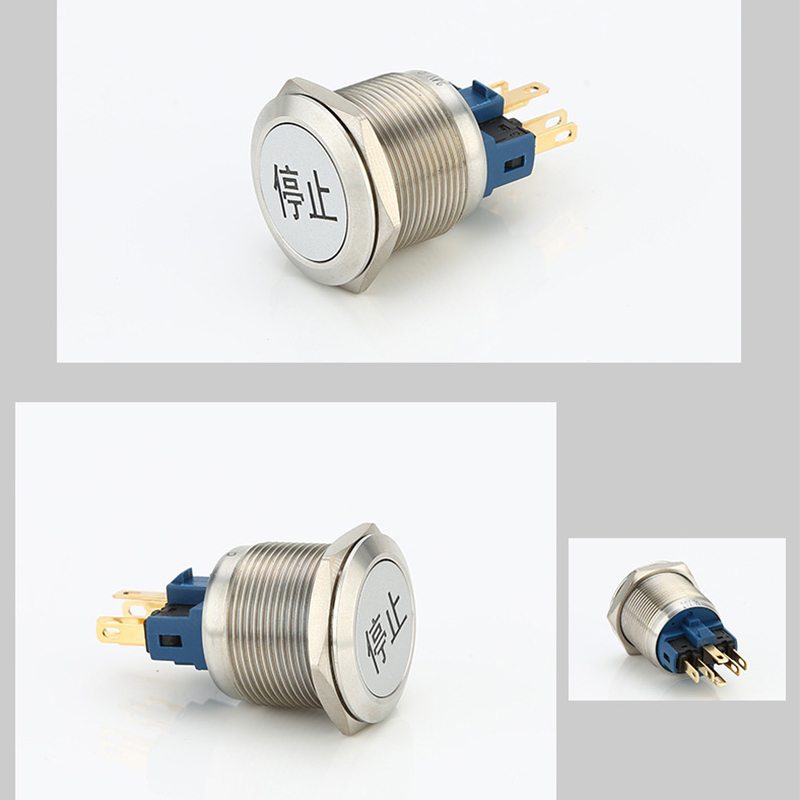

25mm metal push button switch self-resetting self-locking arc spherical lightless welding feet waterproof push button switch modification
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: 4 pin momentary switch
Material: Brass nickel plated / Stainless steel
LED color: No
Operation Type:Latching type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Dome head Hole size: 25mm
| Product Name | Push button switch |
| Model | YL25S-A11QZ |
| Mounting Hole | 25mm |
| Operation Type | Latching |
| Switch Combination | 1NO1NC |
| Head Type | Dome head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

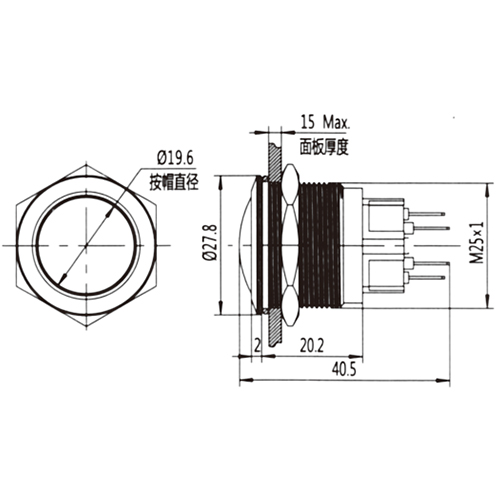

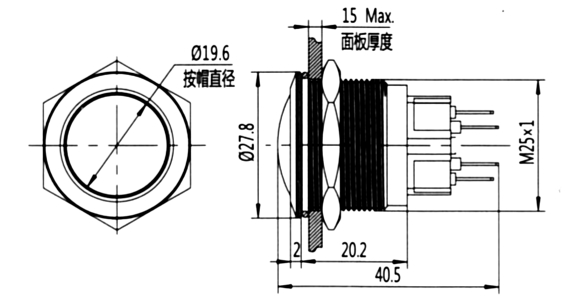

Drawing
Product Features : The metal push button switch is designed with an ergonomic shape and tactile feedback to provide comfortable and responsive actuation for extended use. Its user-centered design improves operator comfort and control precision, making it suitable for applications with frequent repetitive or prolonged use.
Application : Gaming and Entertainment Equipment: Metal push button switches are used in gaming consoles, arcades and entertainment systems to provide users with responsive and ergonomic control for interactive gaming and entertainment experiences. Its tactile feedback and user-friendly design help provide a pleasant and immersive user interface for gaming and entertainment applications.
