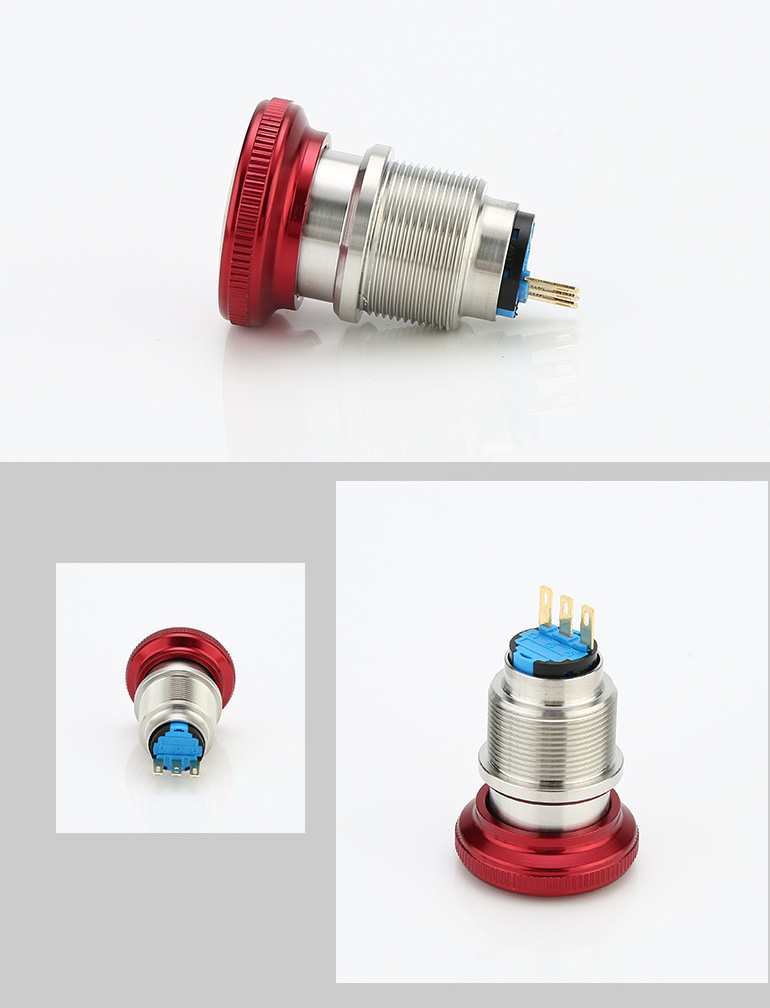

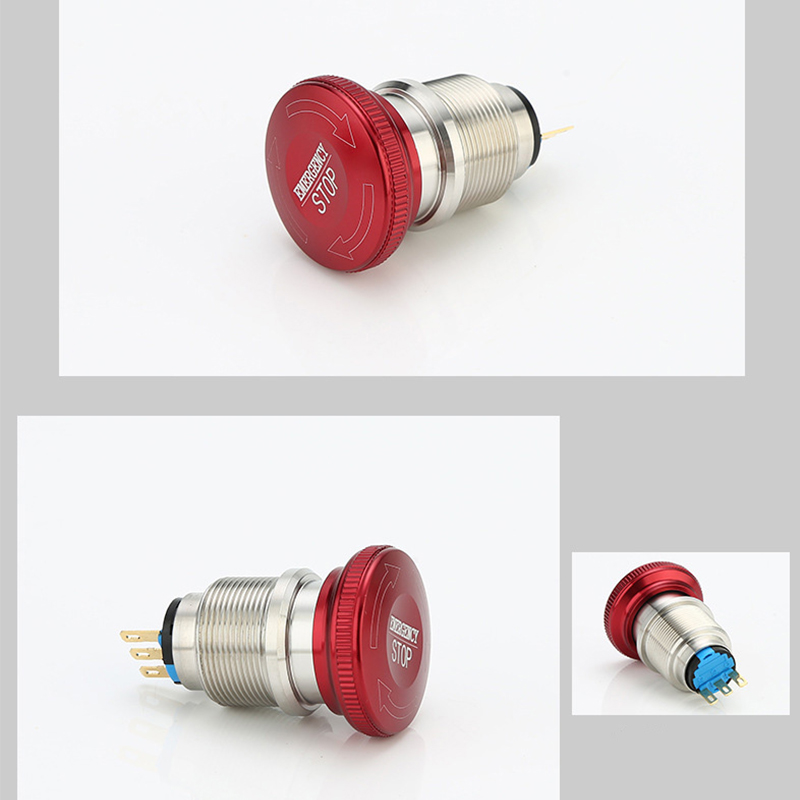

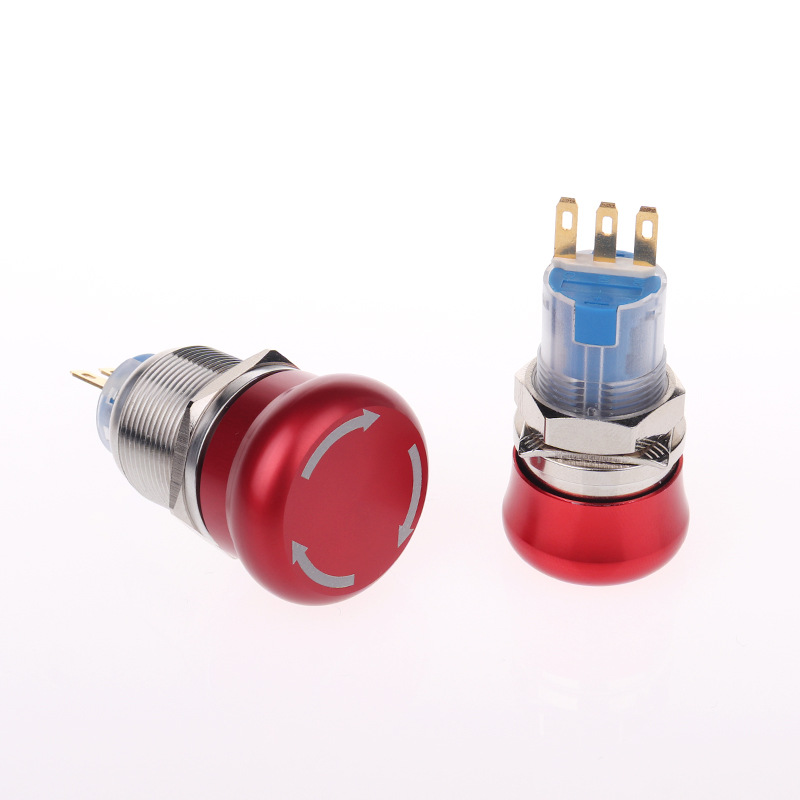

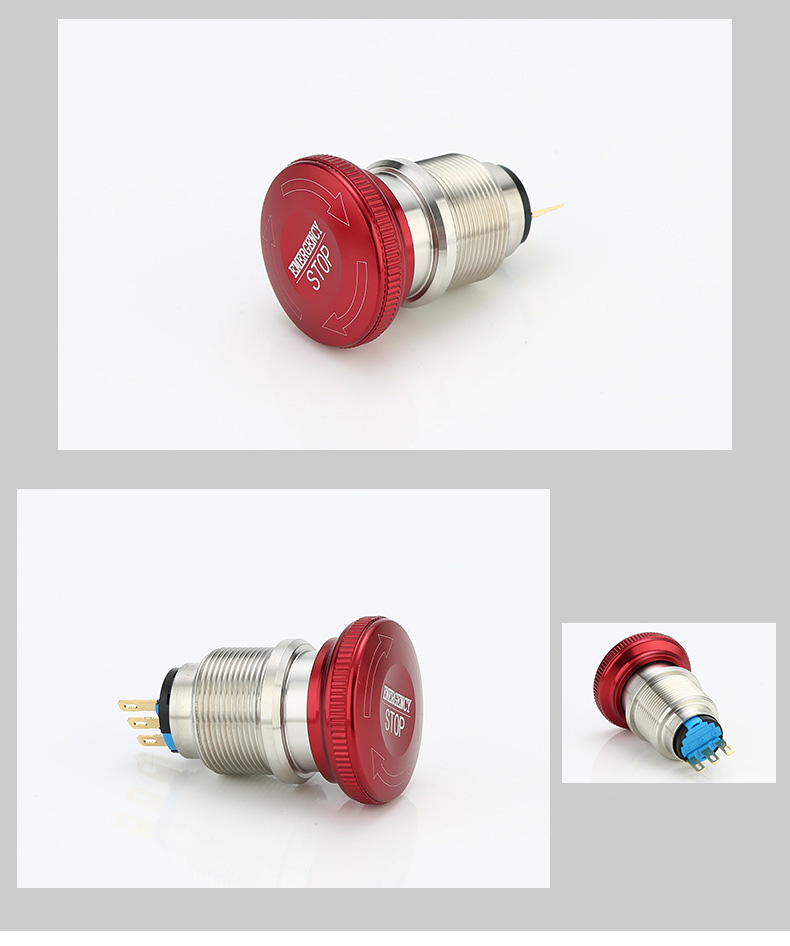

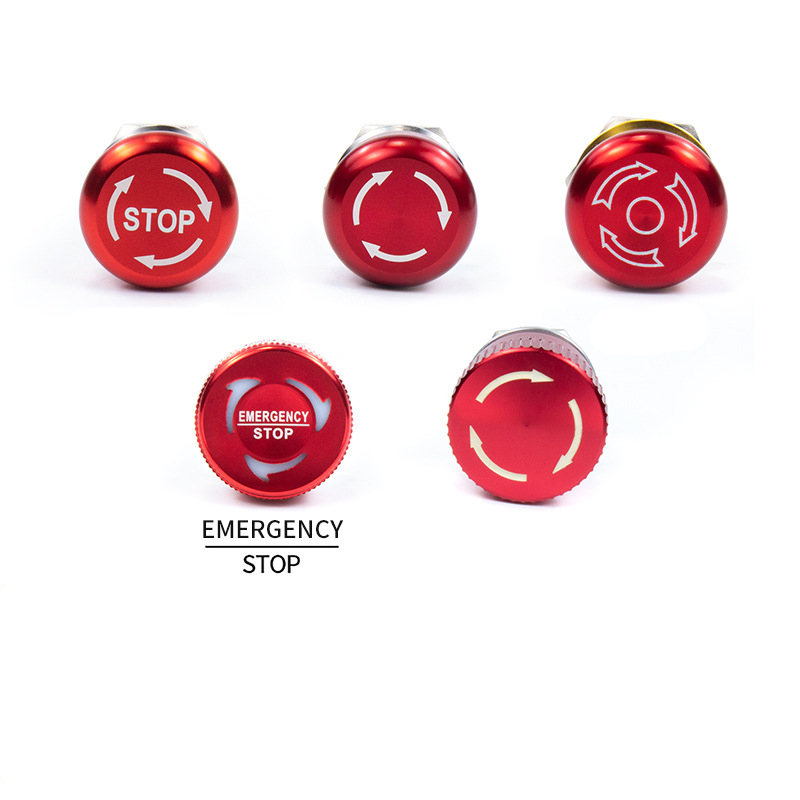

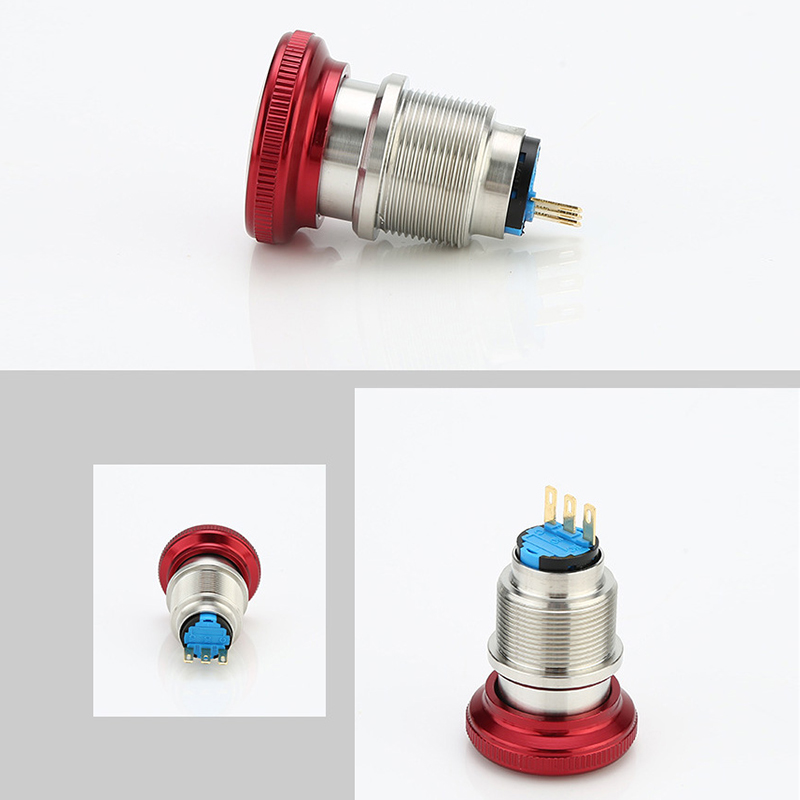

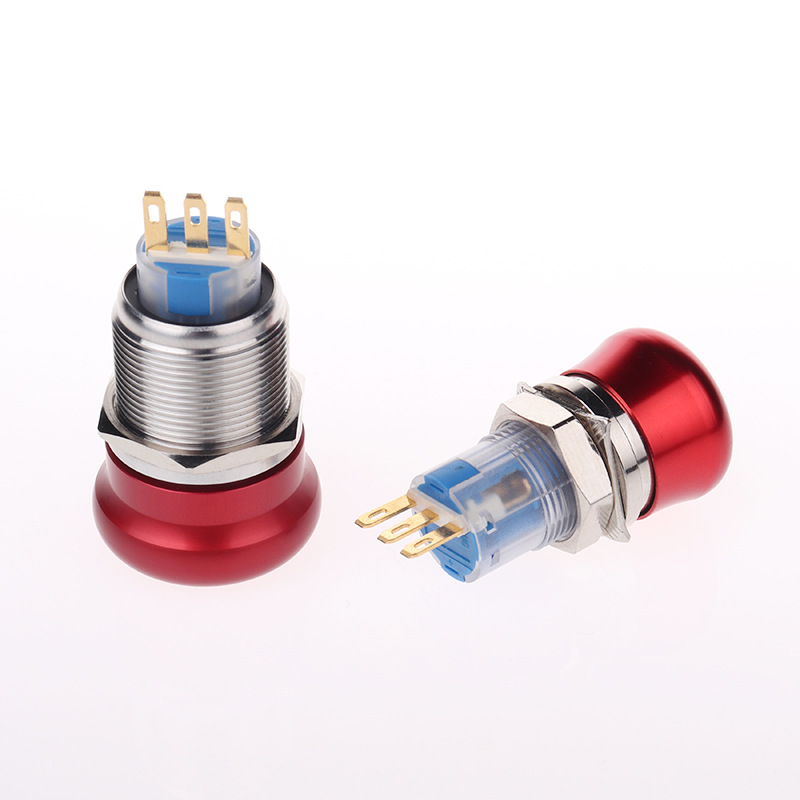

22mm mushroom head emergency stop button
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name mushroom head emergency stop button
Material: Brass nickel plated / Stainless steel
LED color: yes
Operation Type:Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-D11J |
| Mounting Hole | 22mm |
| Operation Type | Momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

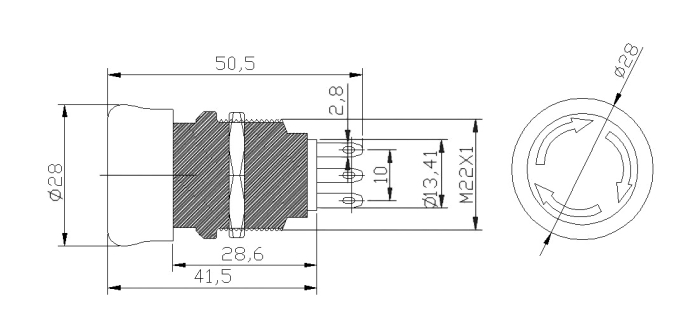

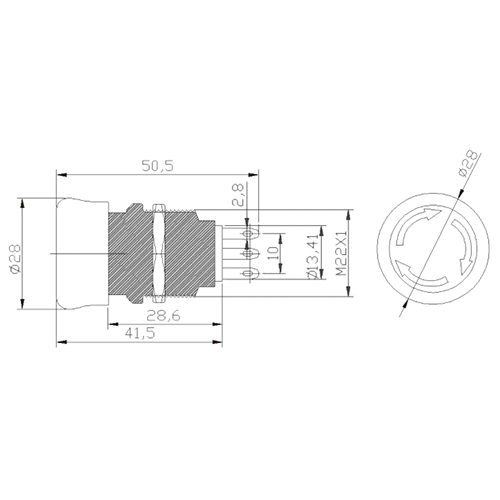

Drawing
Product introduction : Mushroom head emergency stop buttons are installed in various equipment and control systems and are important safety devices for quickly stopping operations in emergency situations. Its durable construction, clear visual cues and quick-access design make it an indispensable component for protecting people and machinery in industrial, manufacturing and commercial environments.
Application : Commercial equipment: Mushroom head emergency stop buttons are integrated into various commercial equipment, such as large printing presses, packaging machinery, industrial ovens, etc. Its fast and intuitive operation enables operators to instantly stop equipment during critical events, minimizing risk and ensuring the safety of personnel and assets in commercial production environments.
