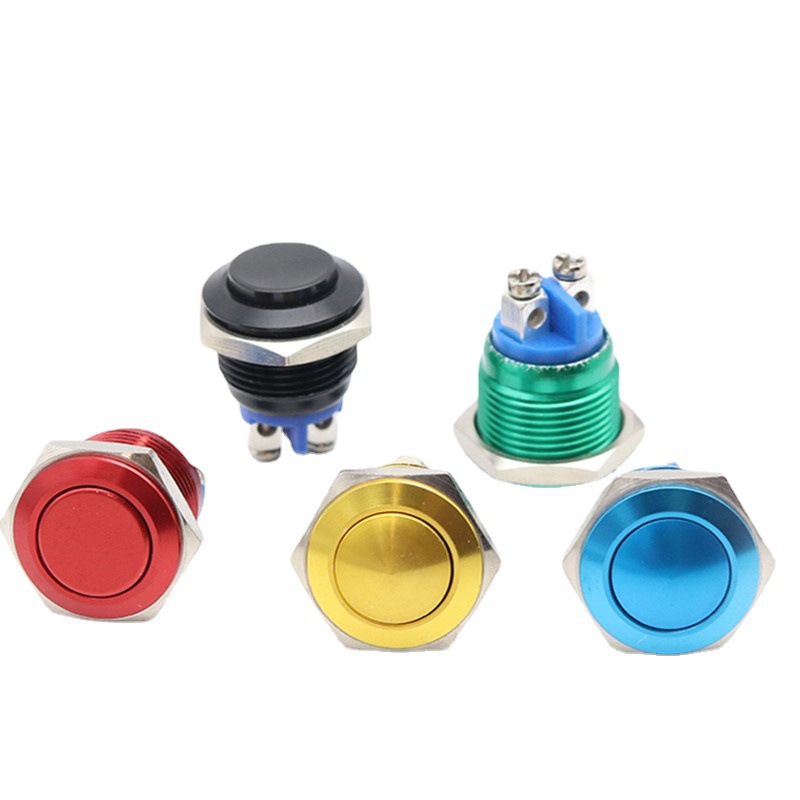

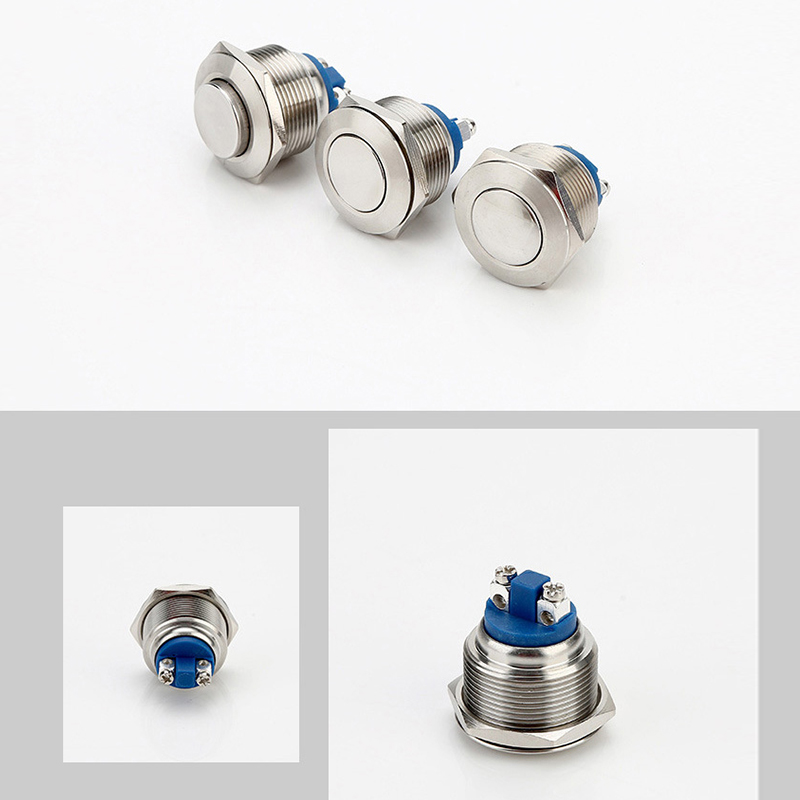

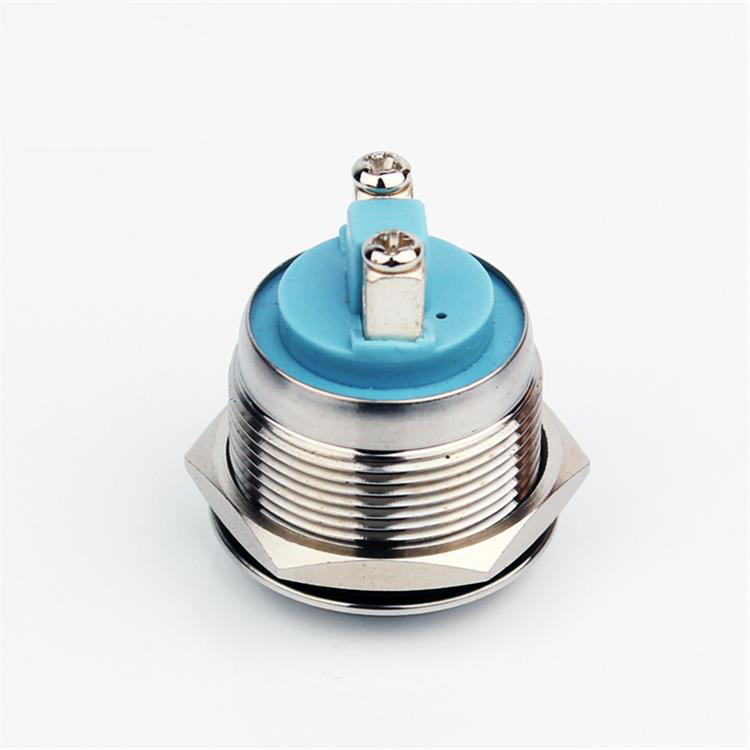

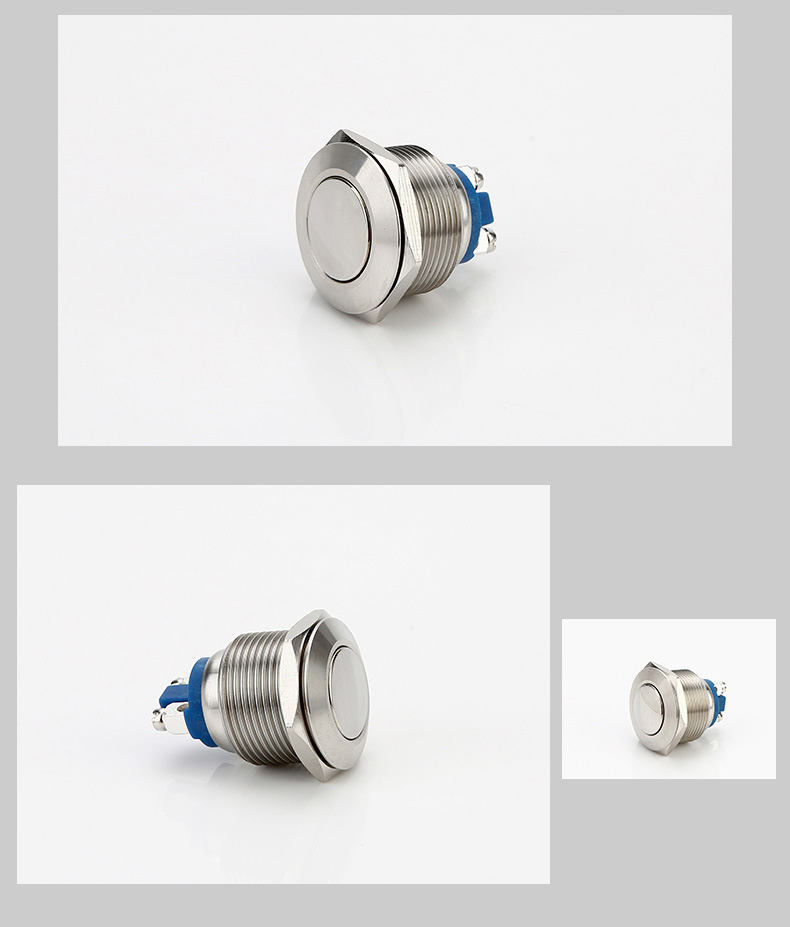

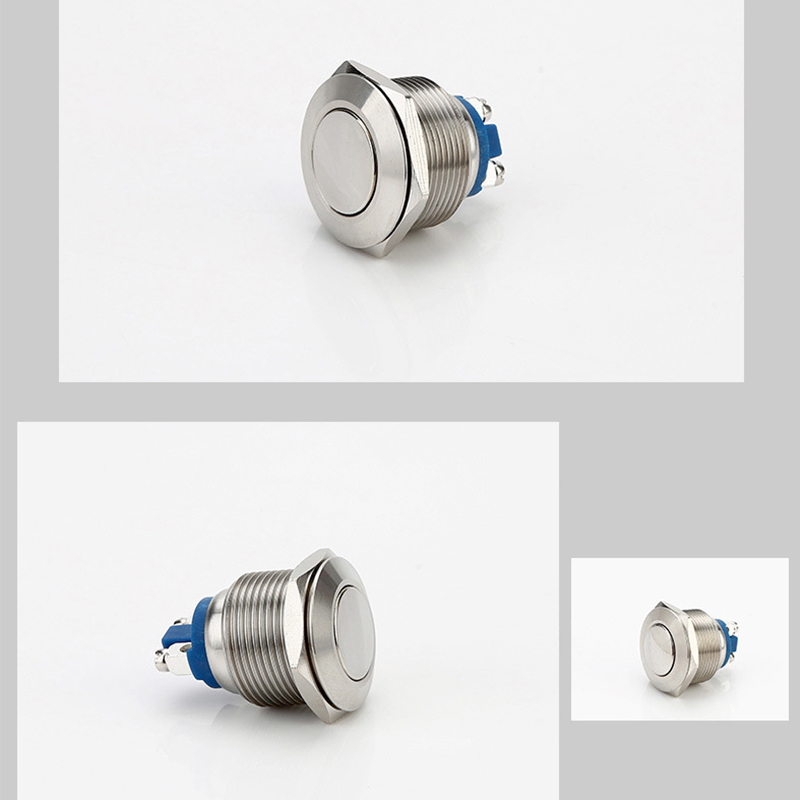

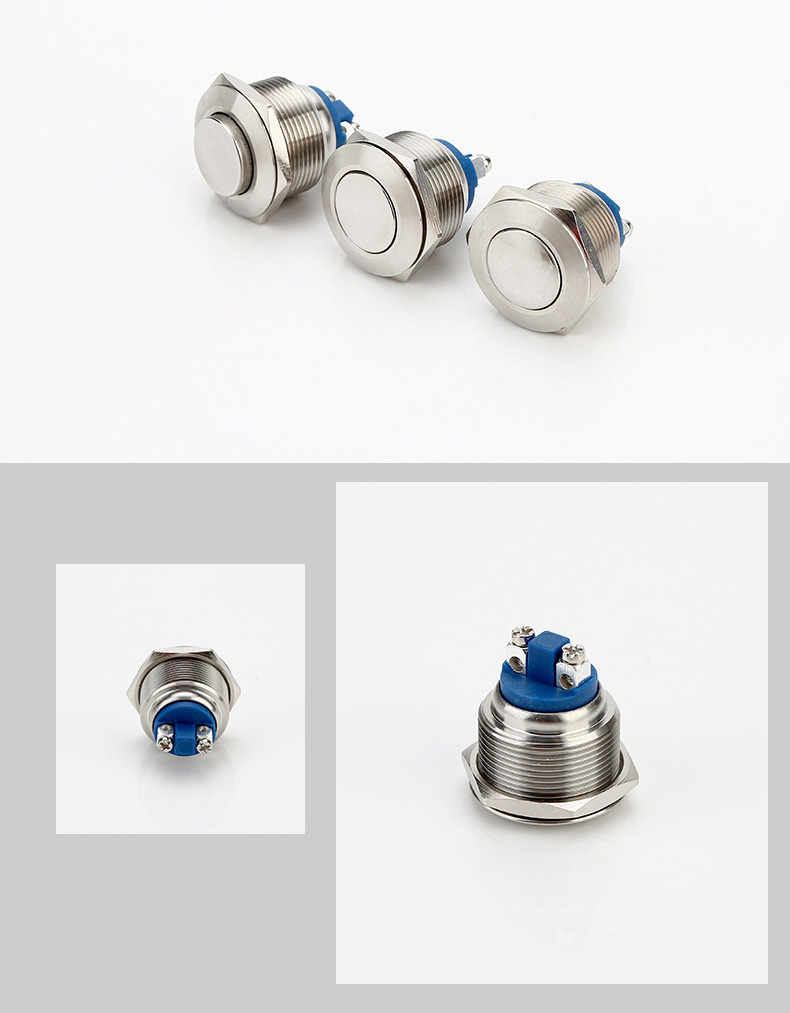

22mm momentary push button switch
Specification:
Product name: Illumination Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO

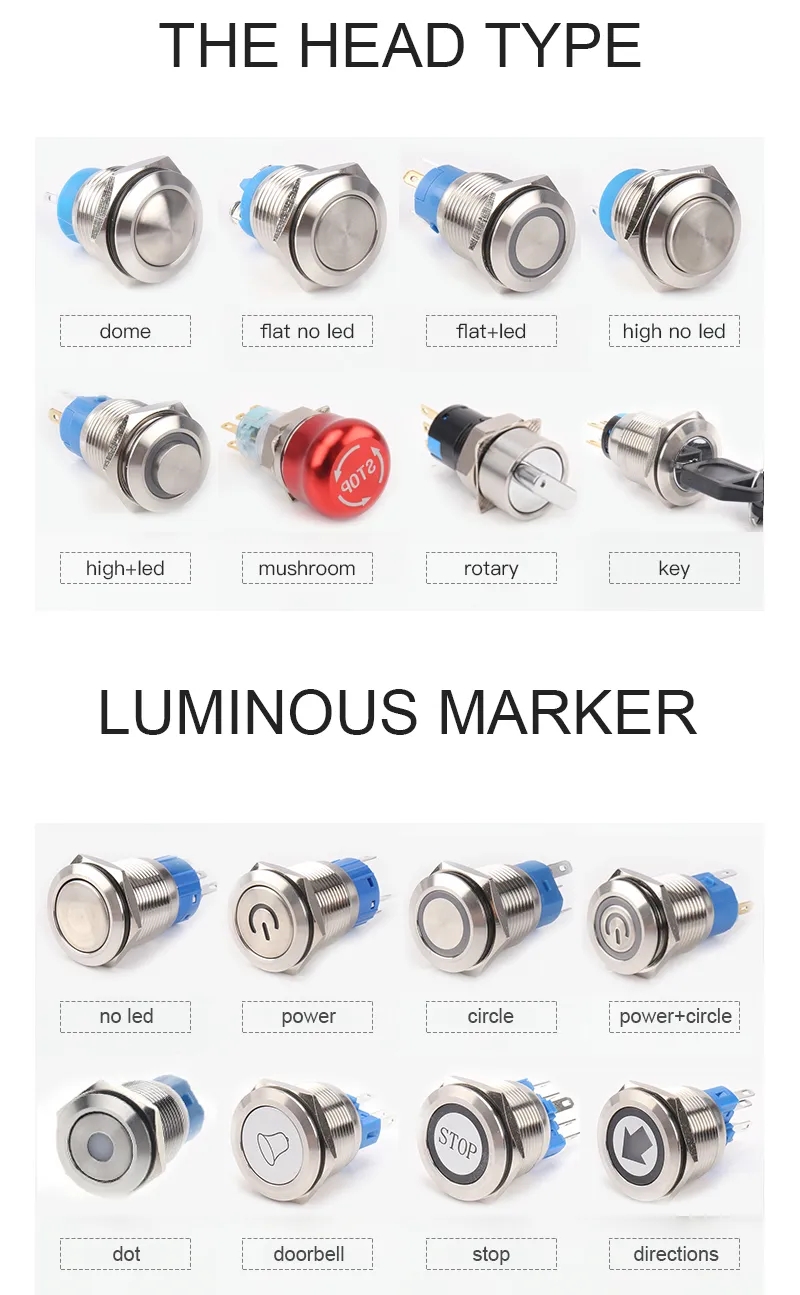

Head shape: Flat head Hole size: 22mm
| Product Name | Anti vandal switch |
| Model | YL22C-A10P |
| Mounting Hole | 22mm |
| Operation Type | Momentary |
| Switch Combination | 1NO |
| Head Type | Flat head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

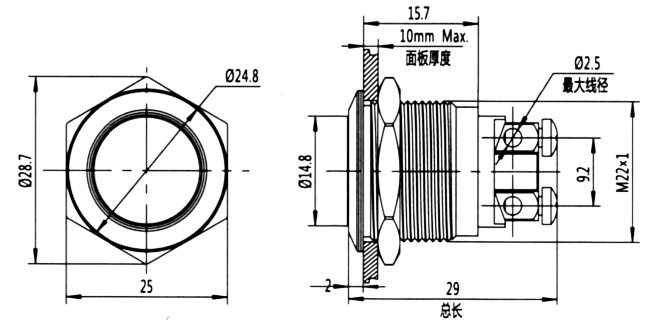

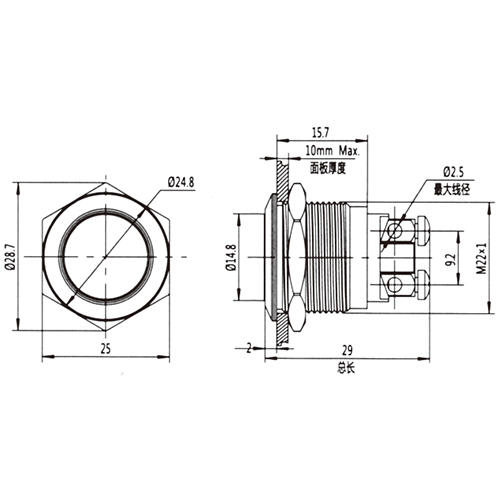

Drawing
Product introduction : Vandal-resistant metal push button switches are engineered to withstand intentional tampering and harsh conditions. It is ideal for public access control and security systems.
Application : Access Control: These switches are widely used in automatic doors, security doors and entrance systems in public facilities and commercial buildings to ensure safe and reliable operation.
