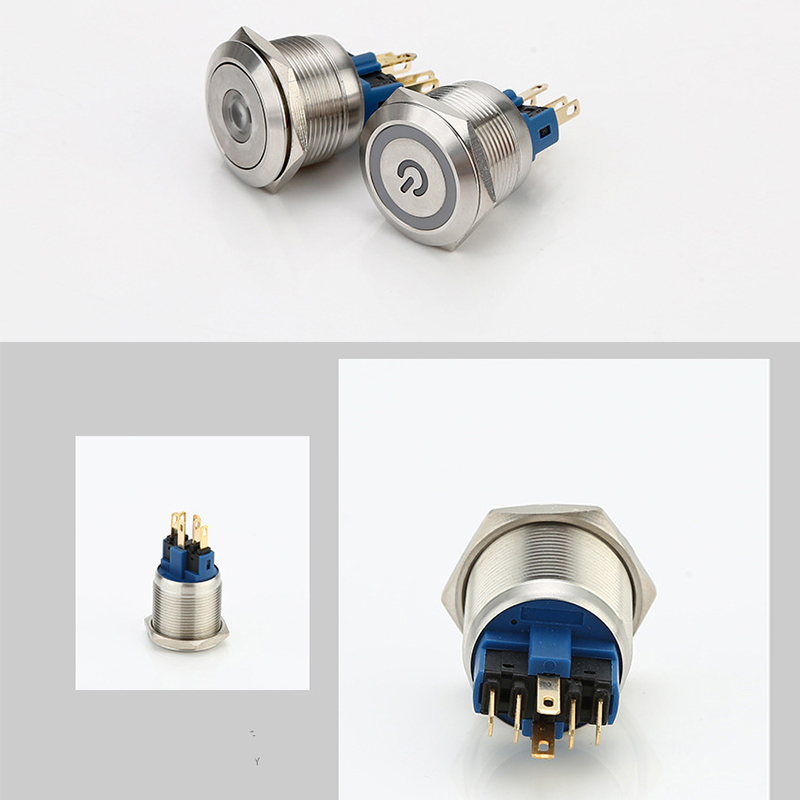

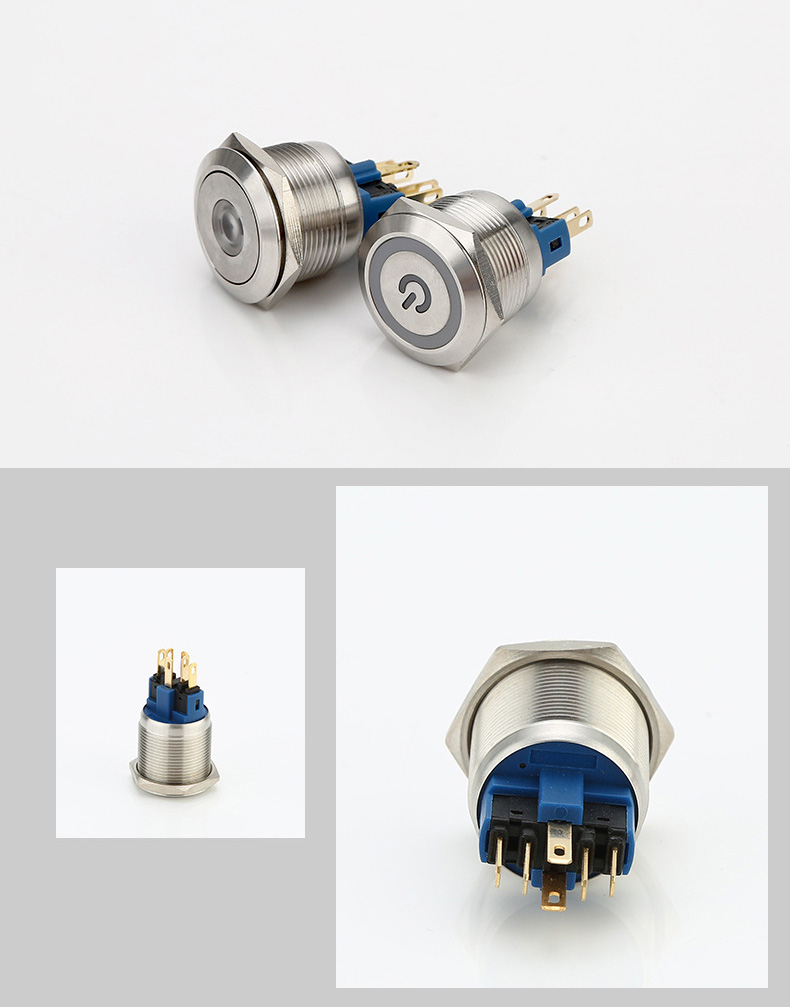

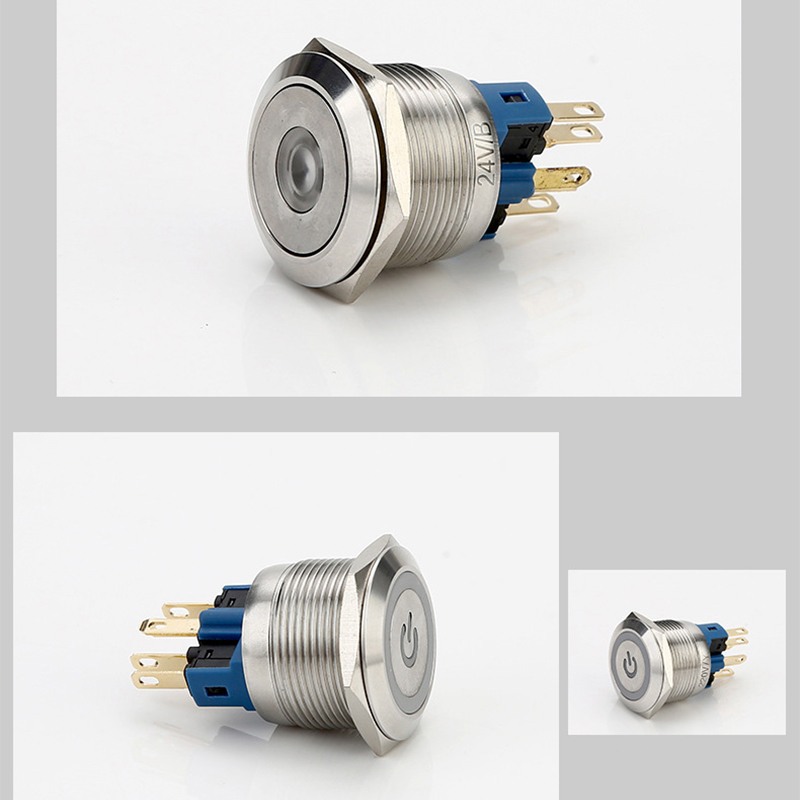

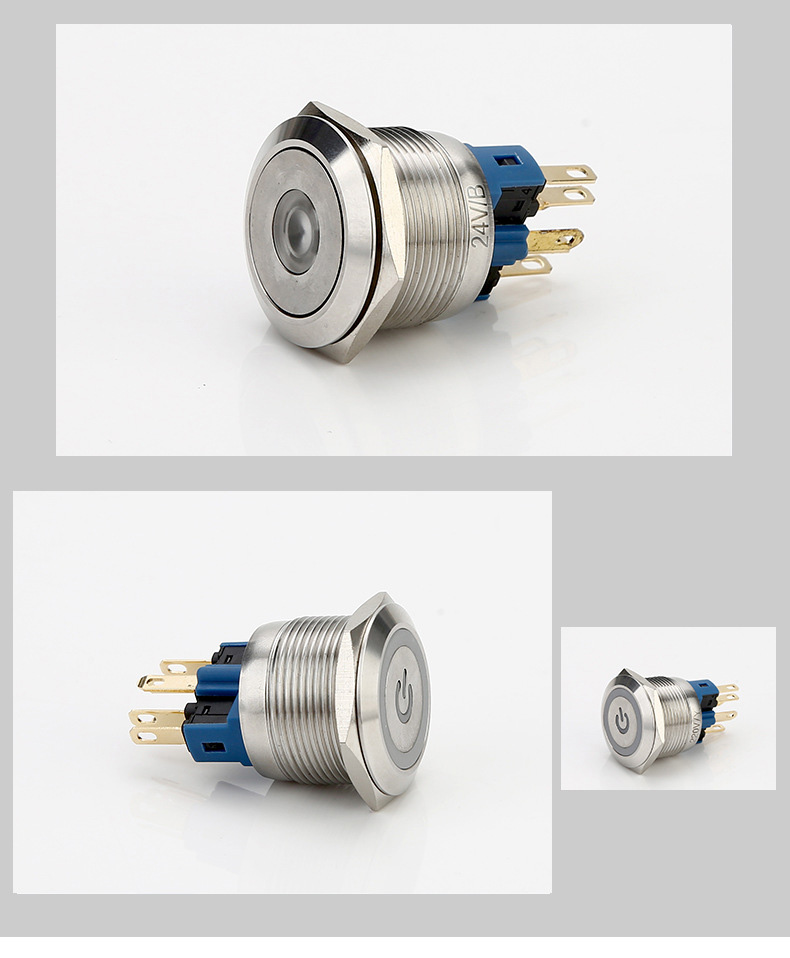

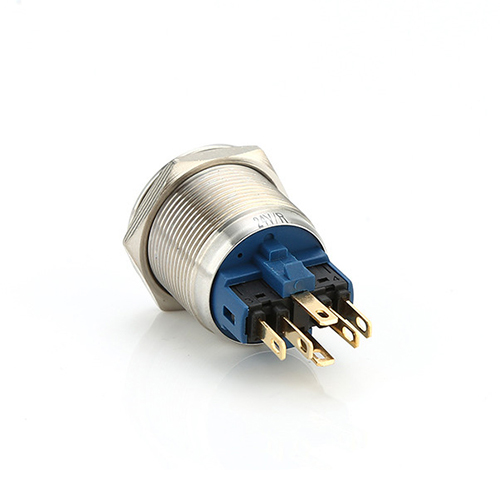

22mm anti vandal switch with dot illumination
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name:22mm anti vandal switch with dot illumination
Material: Brass nickel plated / Stainless steel
LED color: YES
Operation Type:Latching
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Flat head Hole size: 22mm
| Product Name | Push button switch |
| Model | YL22C-B11PDZ |
| Mounting Hole | 22mm |
| Operation Type | Latching |
| Switch Combination | 1NO |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

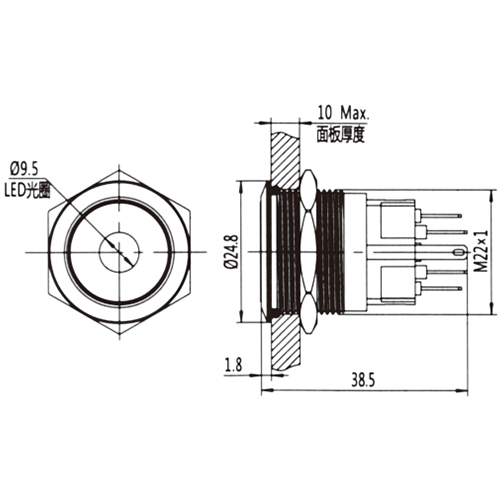

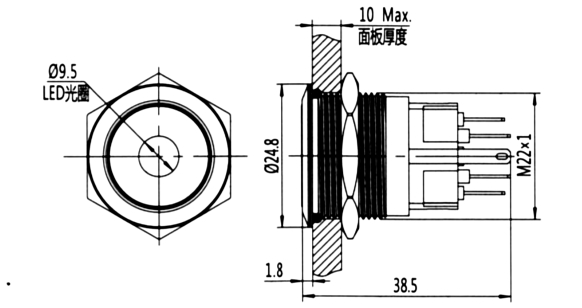

Drawing
Product introduction : Metal push button switches with IP-rated sealing are ideal for use in harsh industrial environments and outdoor enclosures, providing reliability in extreme conditions.
Application : Harsh Environments: These switches are commonly used in manufacturing plants, chemical processing facilities, and outdoor control systems where resistance to moisture, chemicals, and physical shock is critical to reliable operation.
