19mm latching Anti Vandal Swtich
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-B11GEZ |
| Mounting Hole | 19mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | High head |
| Terminal type | Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |

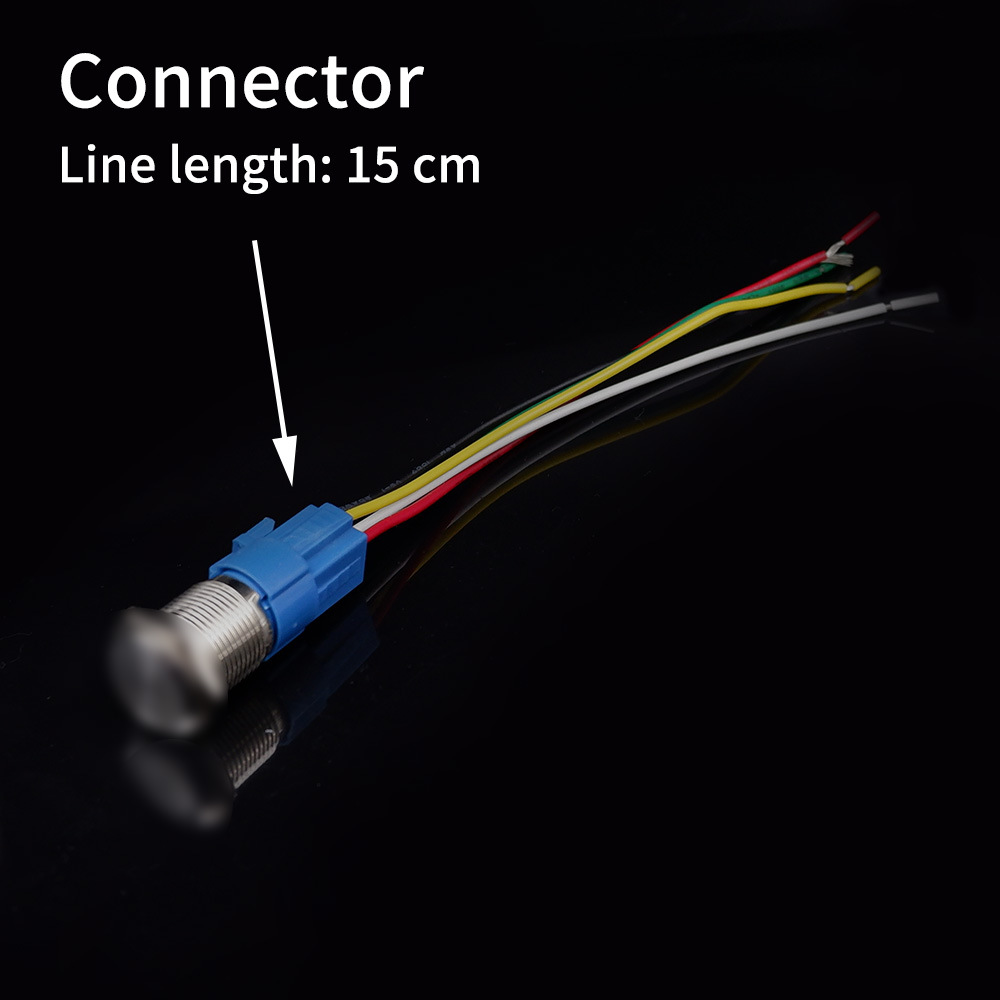

| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

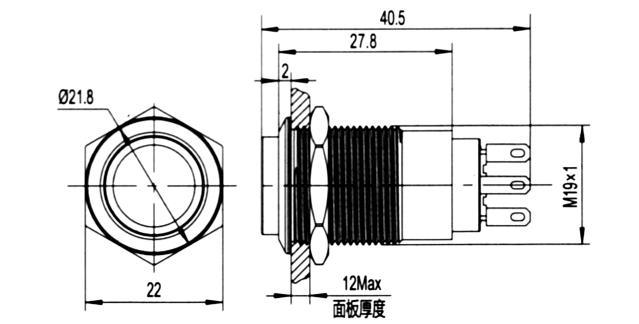

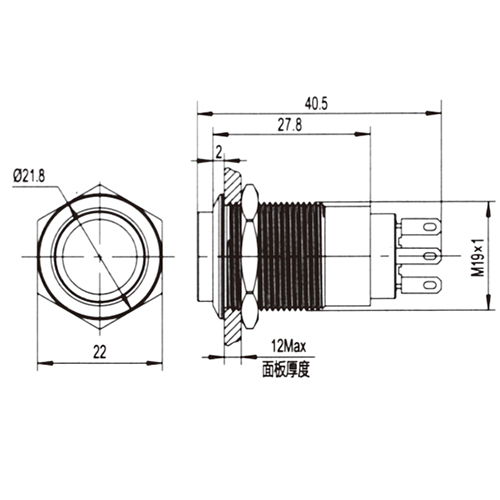

Drawing
product description:
Product introduction : Metal push button switches with IP-rated sealing are designed for reliable operation in harsh industrial environments and outdoor enclosures. It is commonly used in manufacturing plants, chemical processing facilities and outdoor control systems due to its resistance to moisture, chemicals and physical impact.
Application : Harsh Industrial Environments: These switches provide reliable control in manufacturing plants, chemical processing facilities, and outdoor control systems where resistance to extreme environmental conditions is critical for reliable operation.
