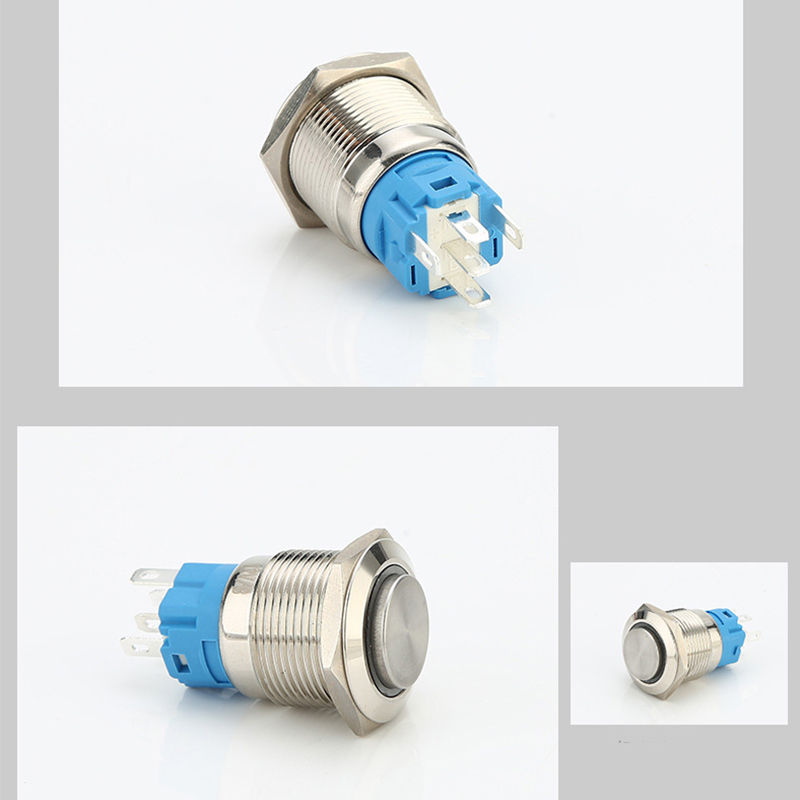

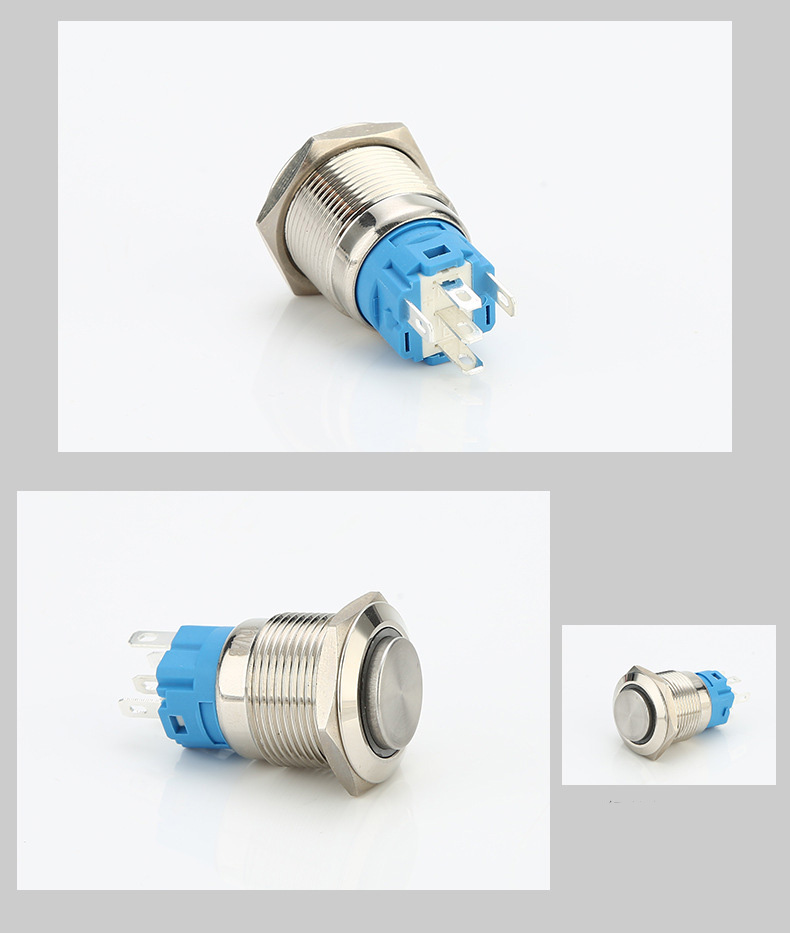

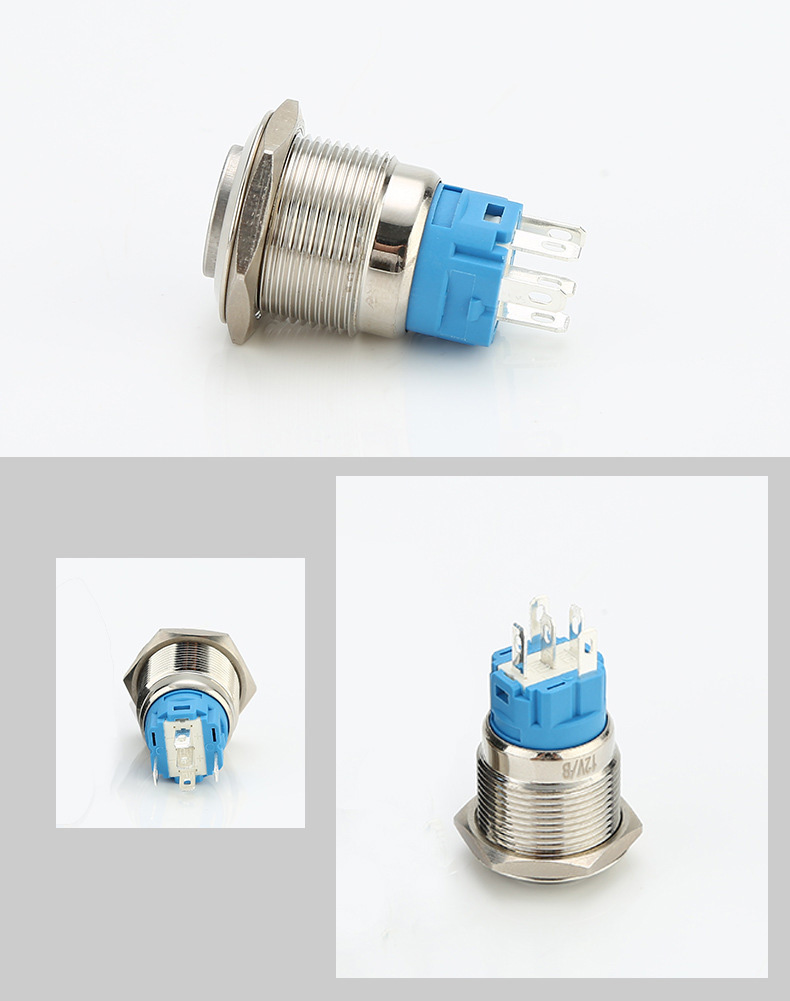

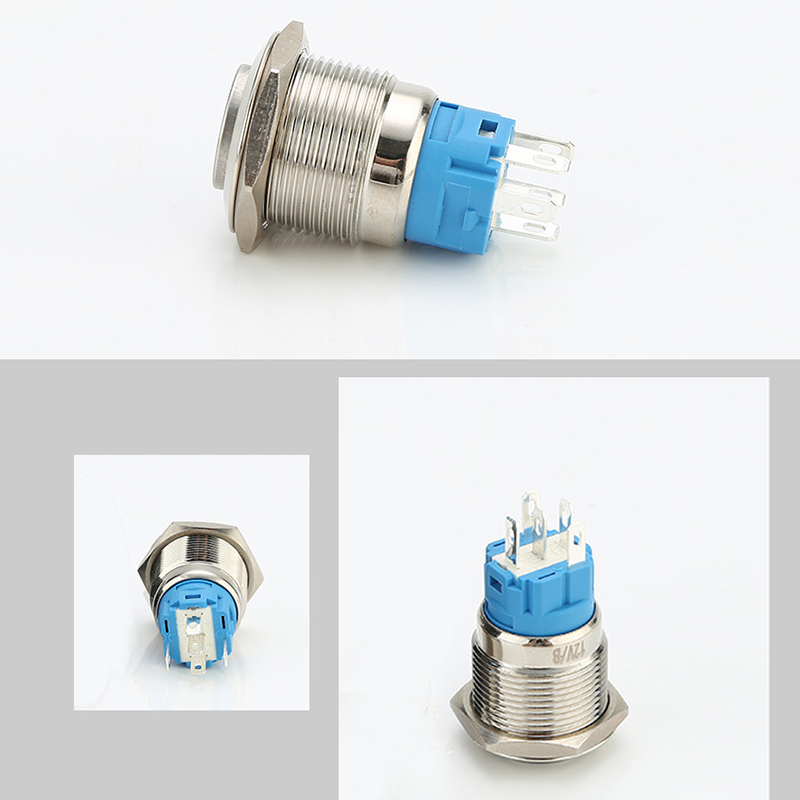

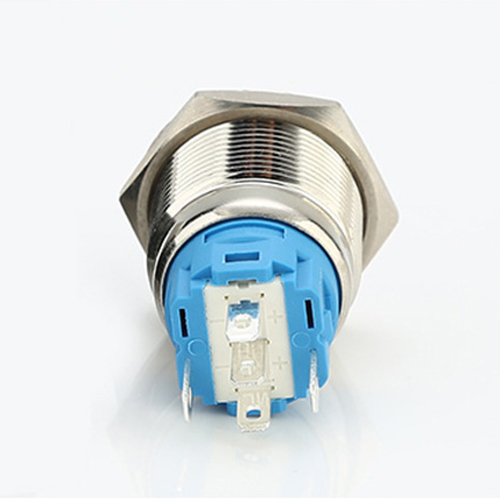

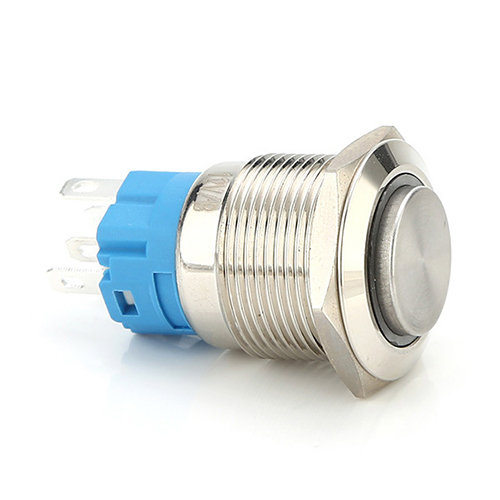

19mm anti vandal switch with led
Specification:
Product name:12mm anti vandal switch with led
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Latching type push it-on, push again it-off Switch
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: High head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-E11GEZ |
| Mounting Hole | 19mm |
| Operation Type | latching |
| Switch Combination | 1NO1NC |
| Head Type | HIGH head |
| Terminal type | Pins |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |
Drawing
Product introduction : This tamper-resistant switch is designed to withstand harsh environments and potential tampering, providing a safe and durable control solution for a variety of industrial and commercial environments. Its rugged construction and tamper-resistant properties make it a reliable choice for applications that require strong performance and protection from unauthorized access. The switch serves as a critical interface component, ensuring operational resiliency and user confidence in demanding environments.
Application : Electrical Enclosures: Vandal-resistant switches are integrated into electrical enclosures, electrical panels, and outdoor control boxes. Its anti-vandal properties and safe drive mechanism help protect against environmental factors and unauthorized interference, ensuring reliable and safe operation of electrical equipment under various conditions.
