16mm momentary push button
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: no
Operation Type: Momentary type push it-on, release it-off Switch
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Dome head Hole size: 16mm
| Product Name | Push button switch |
| Model | YL16C-A10Q |
| Mounting Hole | 16mm |
| Operation Type | momentary |
| Switch Combination | 1NO |
| Head Type | Dome head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

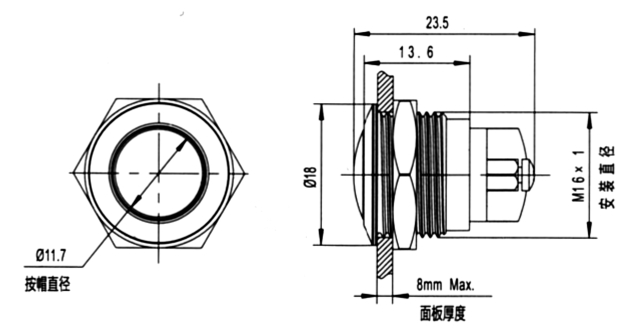

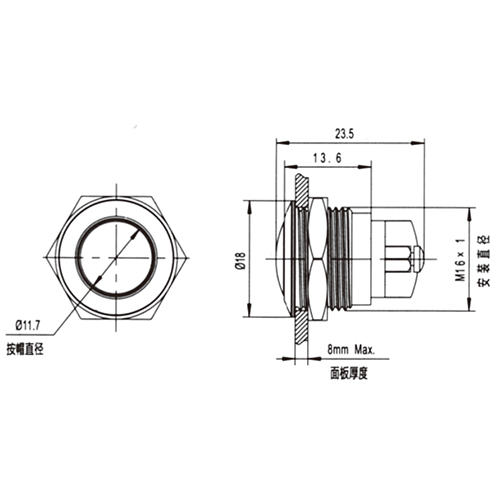

Drawing
Product introduction : This heavy-duty metal push button switch is designed to withstand high current applications, making it suitable for power distribution and industrial power control systems.
Application : Power Distribution: These switches are commonly used in power generation facilities, substations, and industrial power plants for high current switching and circuit protection.
