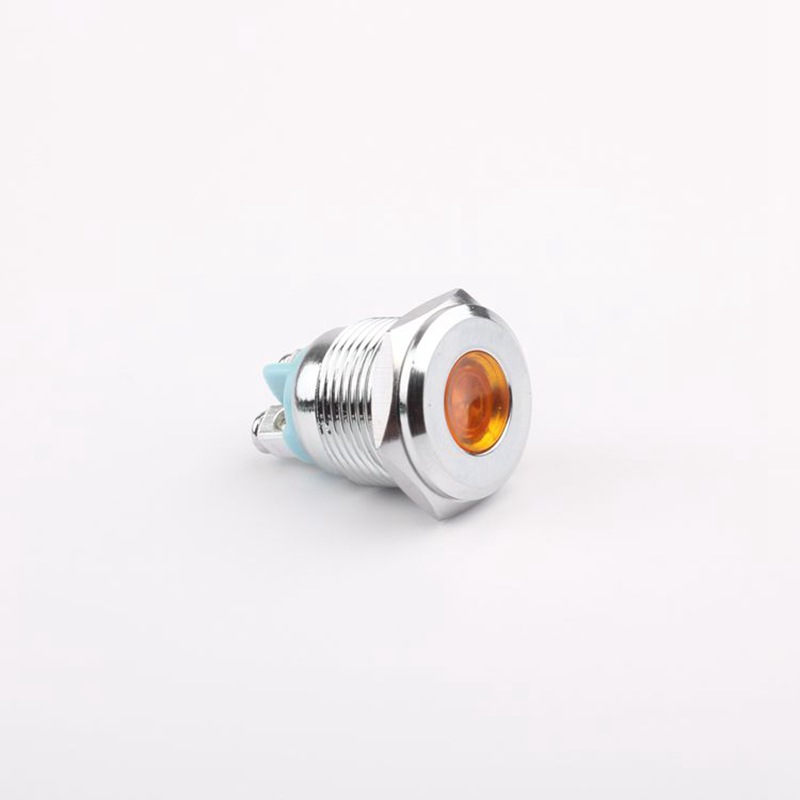

16mm metal indicator light flat power signal fault light LED luminous waterproof indicator light
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:16mm
| Product Name | Push button switch |
| Model | YL16C-XD10 |
| Mounting Hole | 16mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | Screw Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

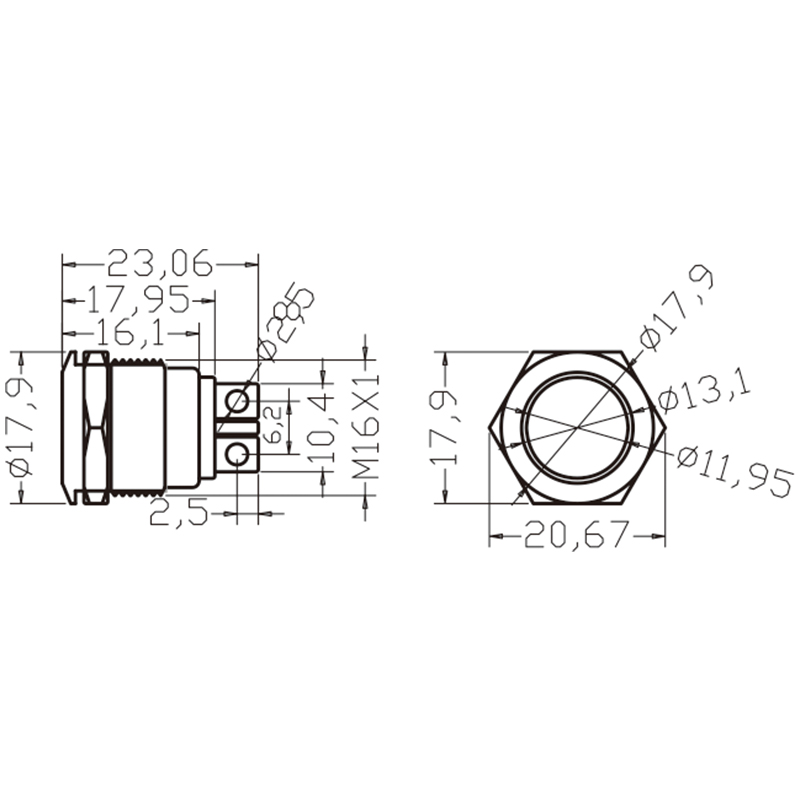

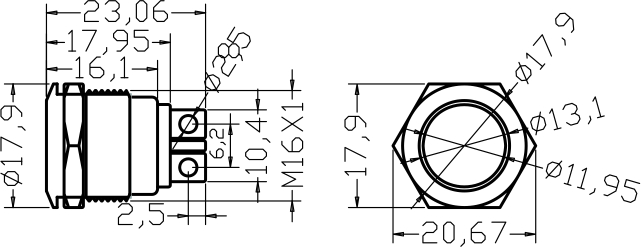

Drawing
Product features : Designed for versatility, metal pilot lights are available in a variety of mounting options, including panel mount, surface mount, and bracket mount. This flexibility allows for easy installation in a variety of applications.
Related Applications:
Marine vessels and ships
Offshore platforms
Marine equipment
Product Introduction: The metal indicator light is designed to meet the requirements of food and beverage processing facilities, where hygiene and cleanliness are paramount. Its stainless steel housing and sealed construction make it suitable for use in washdown areas, production lines, and equipment in the food industry.
