16MM flat metal indicator light with cable 12V 220V power signal light waterproof two-color indicator light
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:16mm
| Product Name | Push button switch |
| Model | YL16C-XD11 |
| Mounting Hole | 16mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | PINS |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

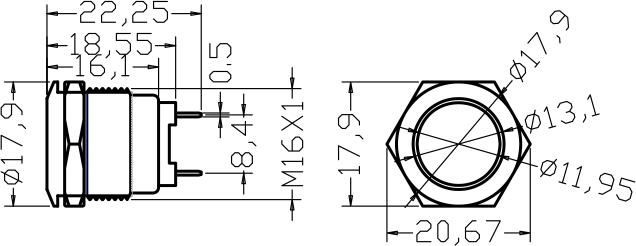

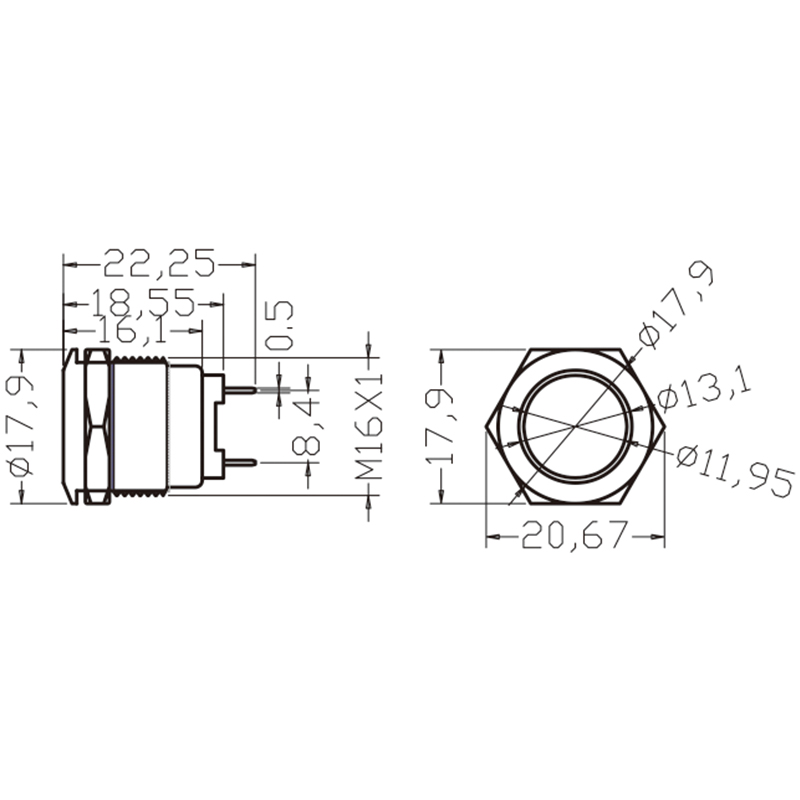

Drawing
Product features : Metal pilot lights are engineered to withstand harsh environmental conditions, including temperature changes, moisture and vibration. Its elasticity makes it suitable for outdoor use and challenging industrial environments.
Related Applications:
Food processing facilities
Wash down areas
Production lines in the food industry
Product Introduction: This metal indicator light is an essential component in transportation equipment, providing clear and reliable visual indication in vehicles, aircraft, and railway systems. Its robust construction and high-visibility indicators ensure safety and efficient operation in demanding transportation environments.
