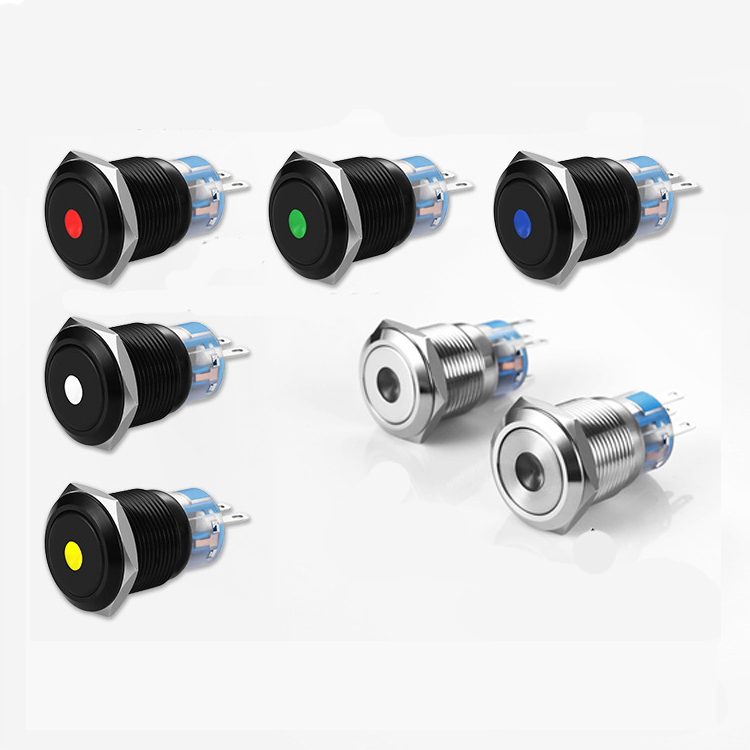

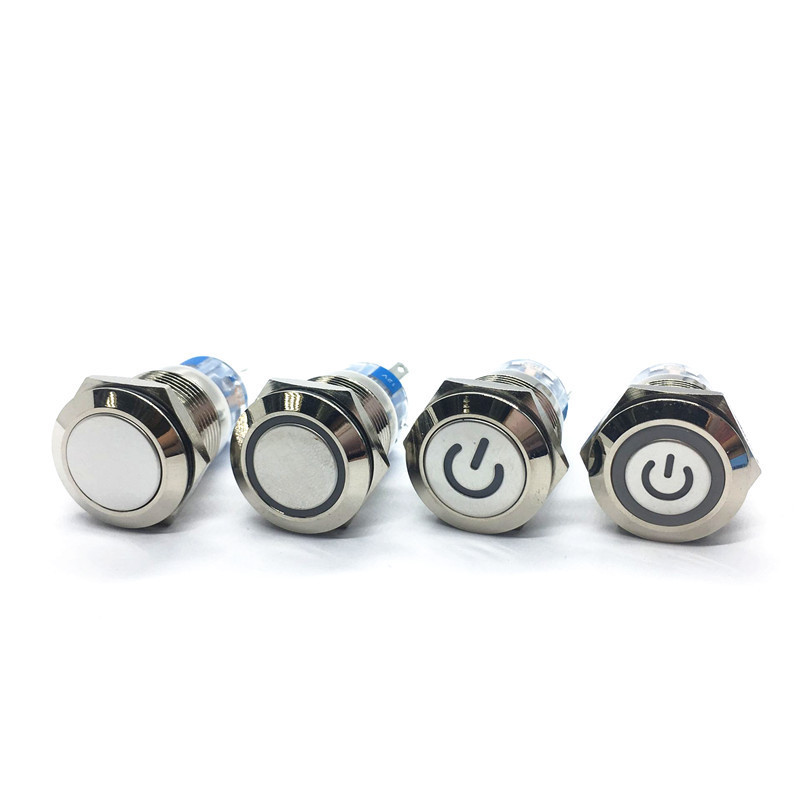

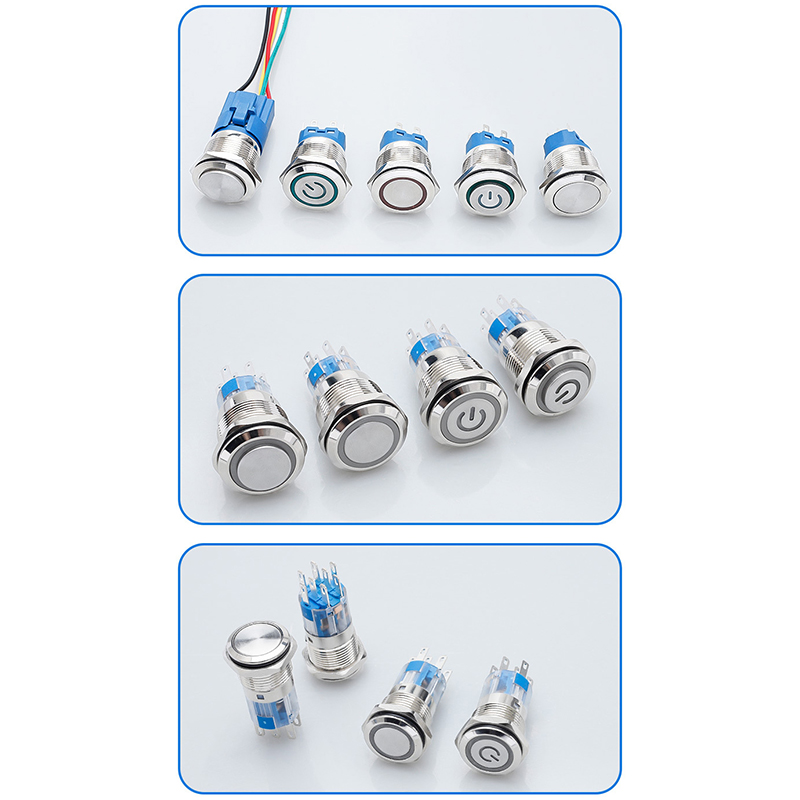

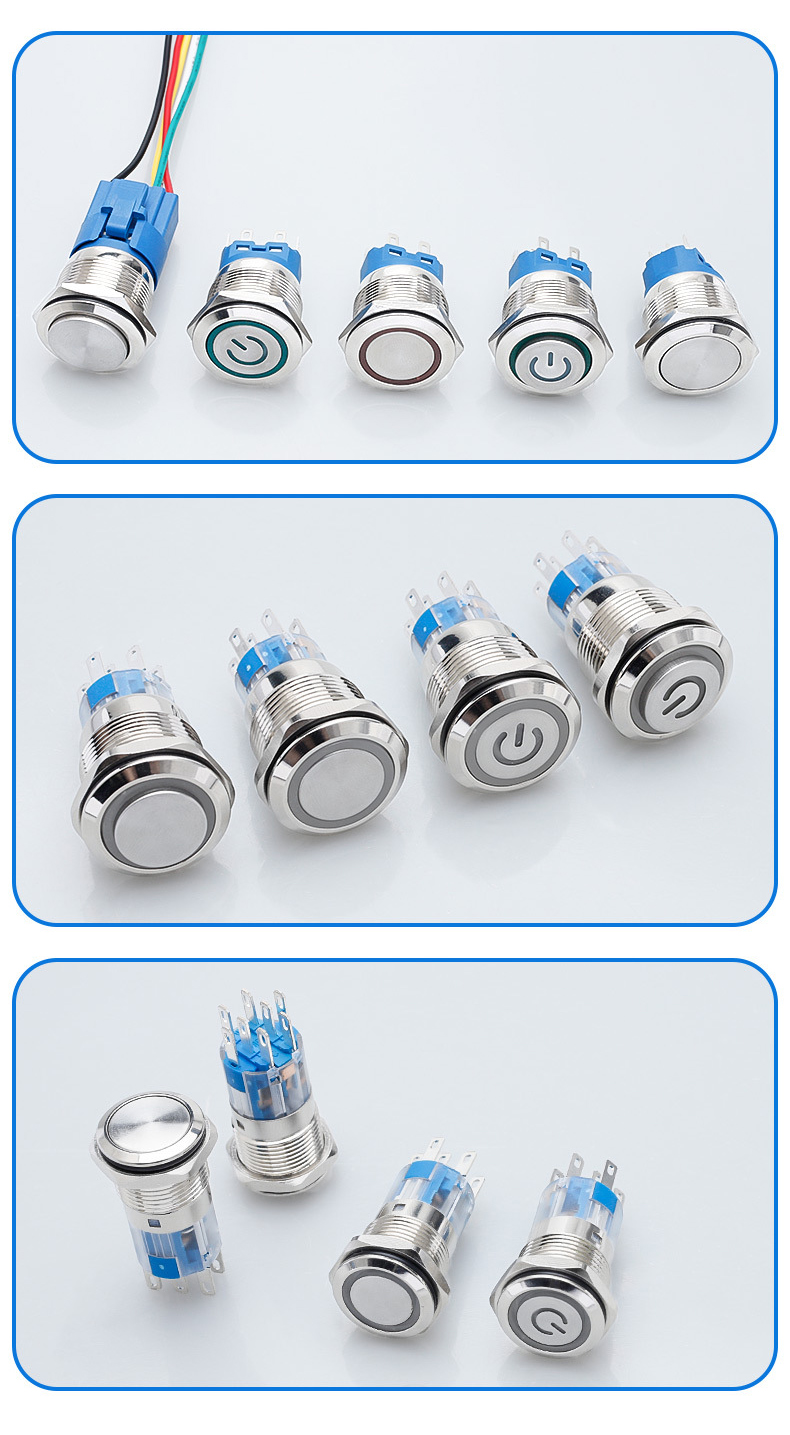

16mm 19mm anti vandal switch with dot illumination
Features:
Made of brass nickel plated material, strong and durable. High-grade appearance and nice touch feeling. Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use. Copper plating silver terminals for good conductive properties. Momentary type, push it-on, release it-off. Metal button head durable for longstanding press.
Specification:
Product name: Push Button Switch/ Anti-vandal switch
Material: Brass nickel plated / Stainless steel
LED color: YES
Operation Type:Latching
Rating: 5A/250VAC
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO
Head shape: Flat head Hole size: 19mm
| Product Name | Push button switch |
| Model | YL19C-B11PDZ |
| Mounting Hole | 19mm |
| Operation Type | Latching |
| Switch Combination | 1NO |
| Head Type | Flat head |
| Terminal type | Pins Terminal |
| Enclosure Material | Brass nickel |
| Delivery Days | 3-7 days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |

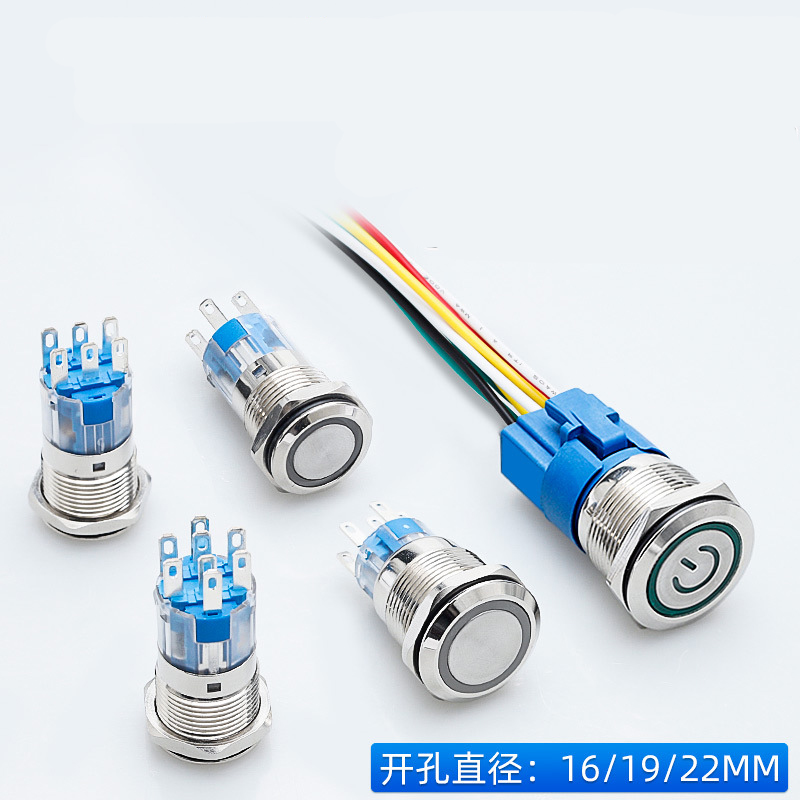

| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

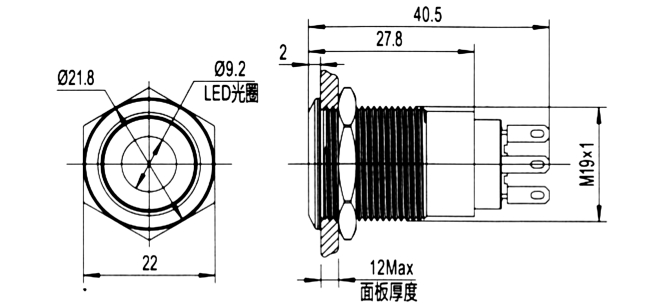

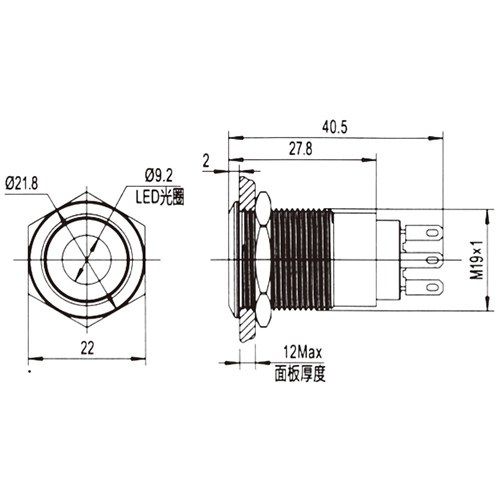

Drawing
Product introduction : The point-illuminated metal push button is a robust and versatile control device designed for a variety of industrial and commercial applications. The button’s durable metal construction and illuminated dot indicator provide tactile feedback and visual status indication for seamless control and monitoring. With its tactile and visual clarity, it is a reliable solution for improving control system operating efficiency and user experience.
Application : Control Panels: Metal push buttons with spot illumination are often integrated into control panels of machinery, equipment and process automation systems. Its tactile feedback and illuminated dot indicators allow operators to initiate specific functions or monitor status, helping to improve operational control and simplify user interaction in industrial and commercial environments.
