12mm metal indicator light concave power supply working signal fault light LED luminous waterproof indicator light
Features:
The metal indicator light features a durable metal housing and is designed for a wide range of industrial applications. With its robust construction and high visibility, this indicator light is ideal for use in control panels, machinery, and automation systems.
Specification:
Product name: metal indicator light
Material: Brass nickel plated / Stainless steel
LED color: Blue White Yellow Red Green Orange
Operation Type: Momentary
Rating: 5A/250VAC LED
voltage: 12V or 3V, 5V, 24V, 110V, 220V
Contact Configuration: 1NO1NC
Head shape: Flat head Hole size:12mm
| Product Name | Push button switch |
| Model | YL12C-XD11 |
| Mounting Hole | 12mm |
| Operation Type | momentary |
| Switch Combination | 1NO1NC |
| Head Type | Flat head |
| Terminal type | PINS |
| Enclosure Material | Brass nickel |
| Delivery Days | 7 -10days after payment received |
| Contact Resistance | 50 mΩ max |
| Insulation Resistance | 1000MΩ Min |
| Dielectric Intensity | 2000VAC |
| Operating Temperature | -20°C ~+55°C |
| Wire Connector / Wire soldering | Acceptable and with fast shipping |
| Accessories | Nut, Rubber ,Waterproof O-ring |

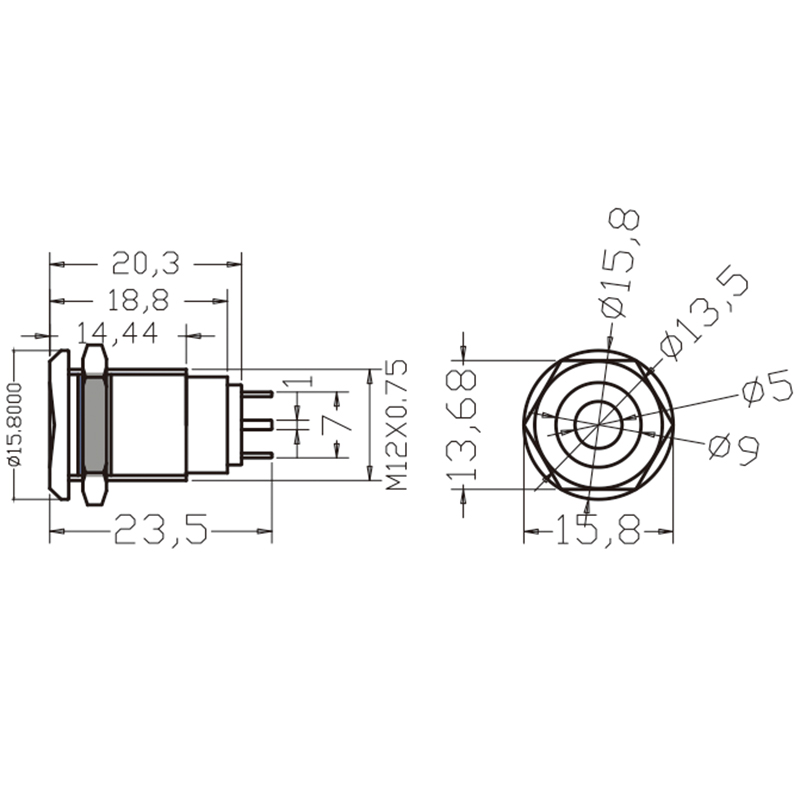

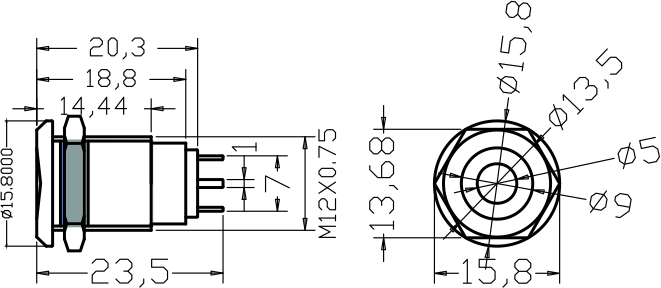

Drawing
Product features : Metal pilot lights feature a compact, space-saving design that can be seamlessly integrated into control panels and equipment where space is limited. Its sleek shape ensures it doesn’t get in the way of surrounding components.
Related Applications:
Control panels
Electrical enclosures
OEM equipment
Product Introduction: Engineered for reliability, the metal indicator light is an essential component in marine and offshore applications, where it withstands harsh conditions and provides clear visual signaling on ships, offshore platforms, and marine equipment. Its corrosion-resistant housing and high-impact lens ensure optimal performance in marine environments.
