12 volt momentary push button switch

Short Description:

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type


Product Detail

Product Tags

Specification:

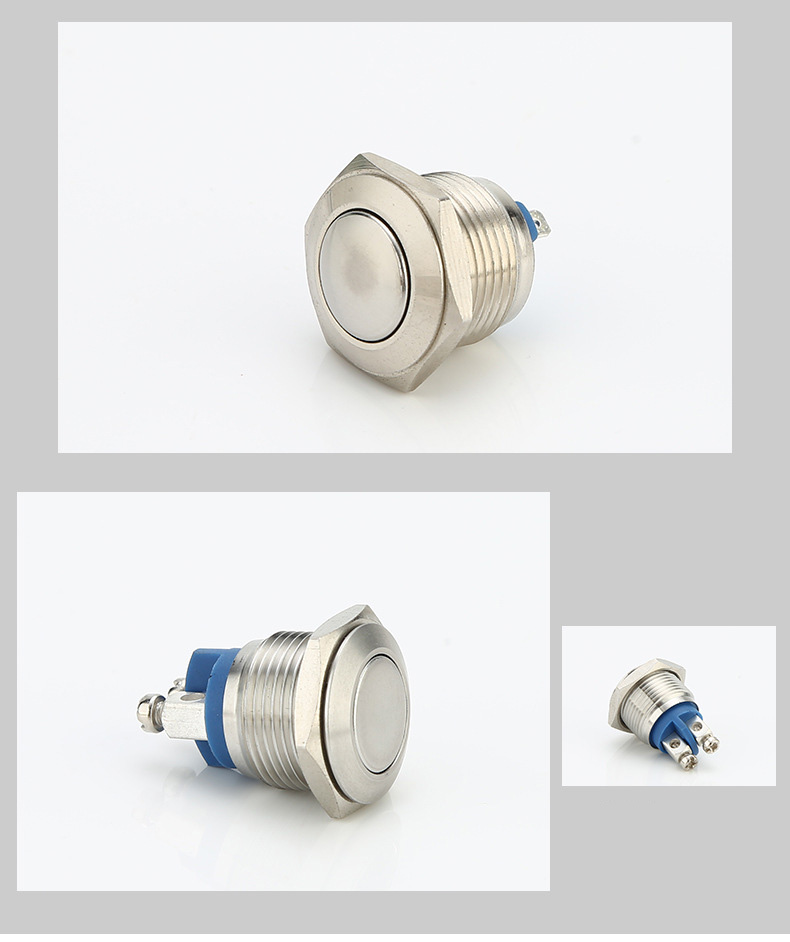

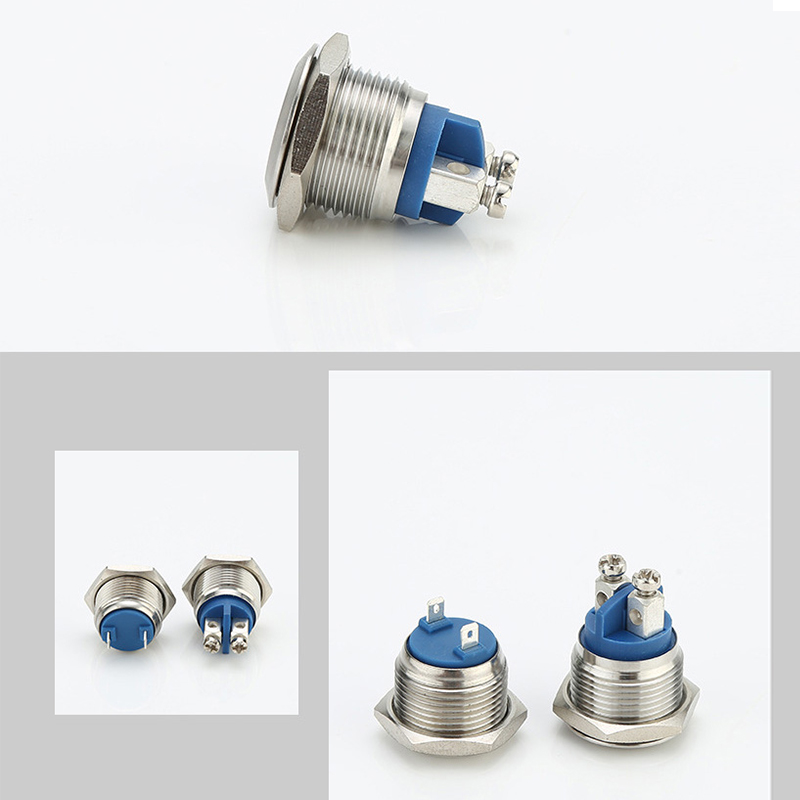

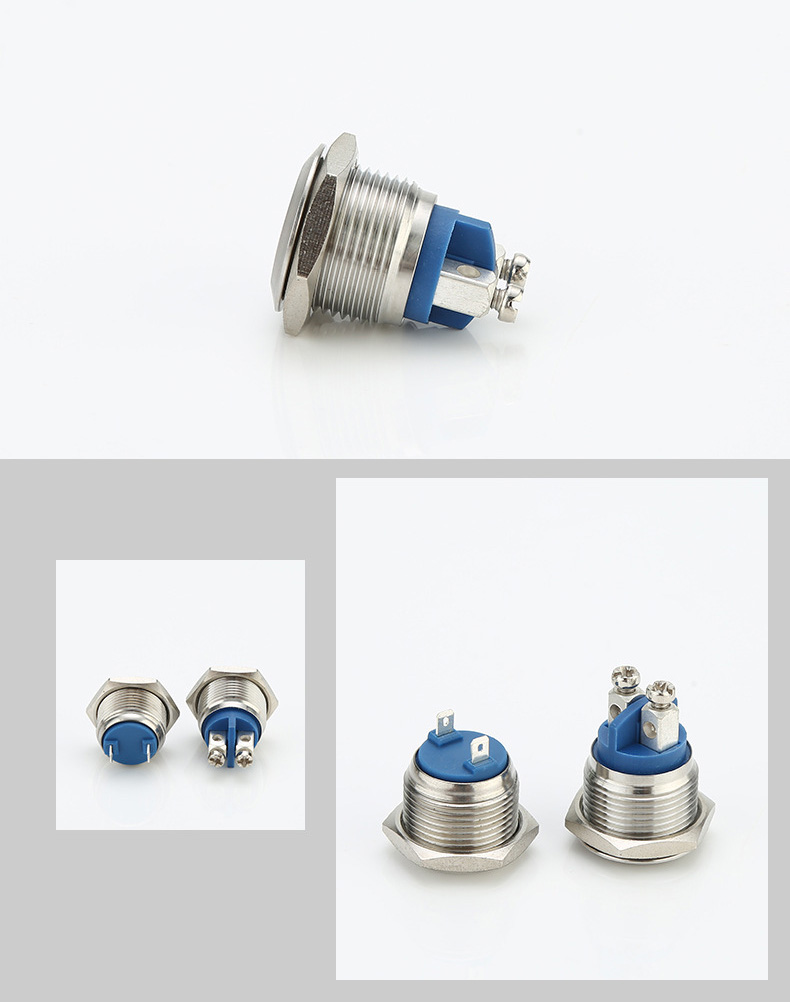

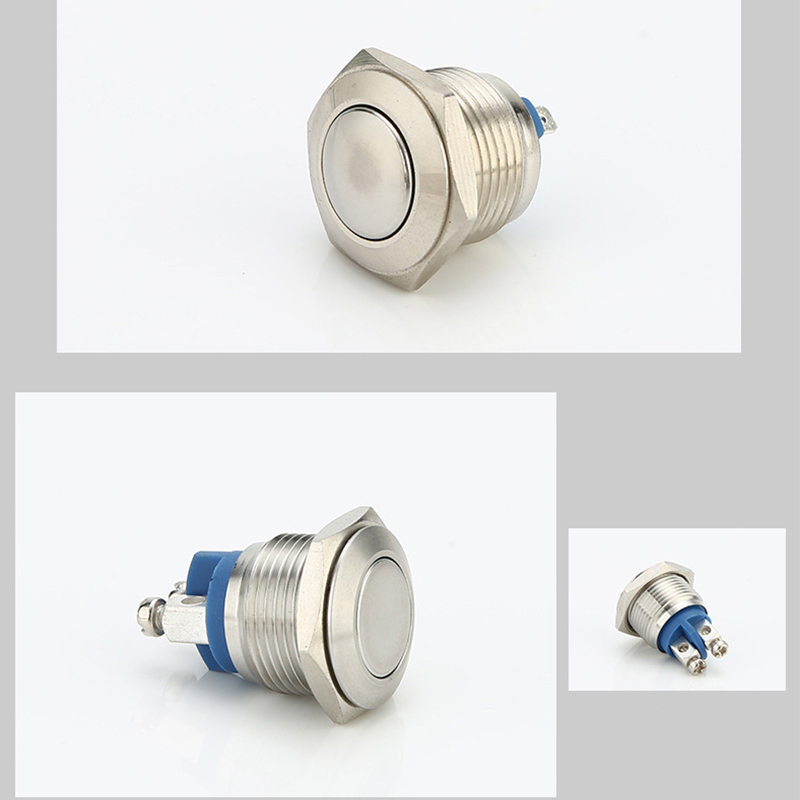

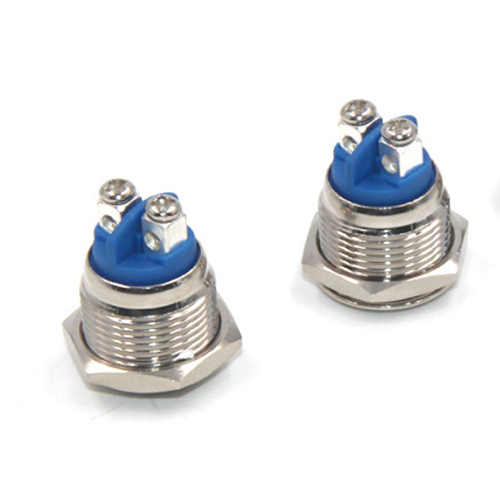

Product name: Illumination Push Button Switch/ Anti-vandal switch

Material: Brass nickel plated / Stainless steel

LED color: no

Operation Type: Momentary  type

Rating: 5A/250VAC

voltage: 12V or 3V, 5V, 24V, 110V, 220V

Contact Configuration: 1NO

Head shape:  Flat  head  Hole size: 16mm

Product Name Push button switch
Model YL16C-A10P
Mounting Hole 16mm
Operation Type Momentary
Switch Combination 1NO
Head Type Flat head

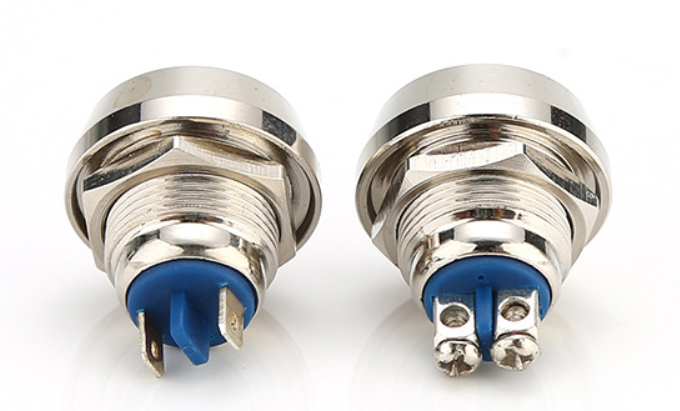

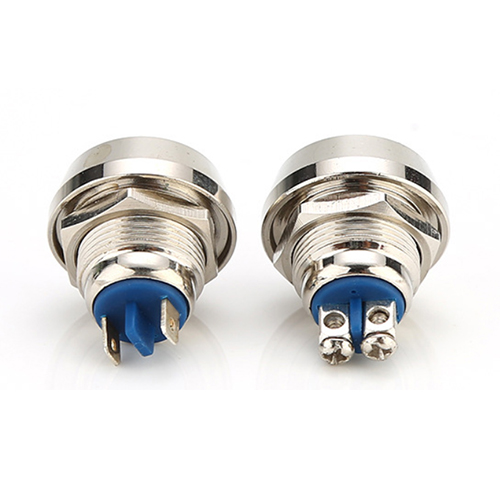

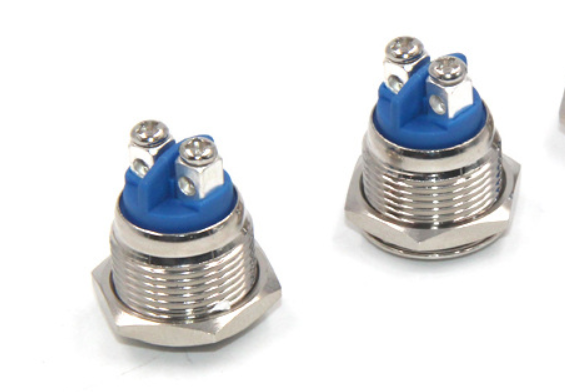

Terminal type Terminal
Enclosure Material Brass nickel
Delivery Days 3-7 days after payment received
Contact Resistance 50 mΩ max
Insulation Resistance 1000MΩ Min
Dielectric Intensity 2000VAC
Operating Temperature -20°C ~+55°C
Wire Connector / Wire soldering Acceptable and with fast shipping
Accessories Nut, Rubber ,Waterproof O-ring

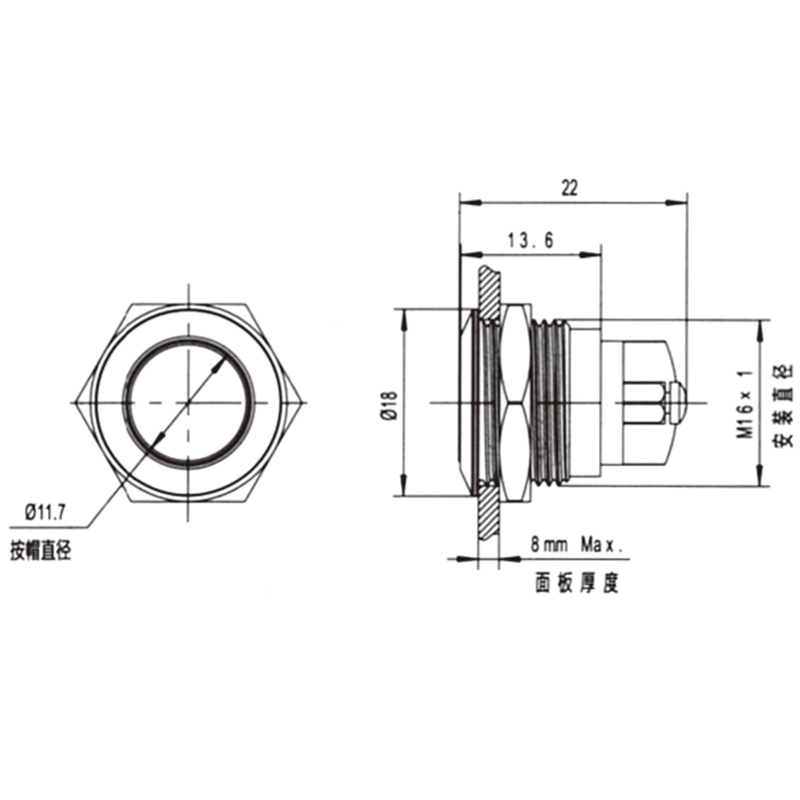

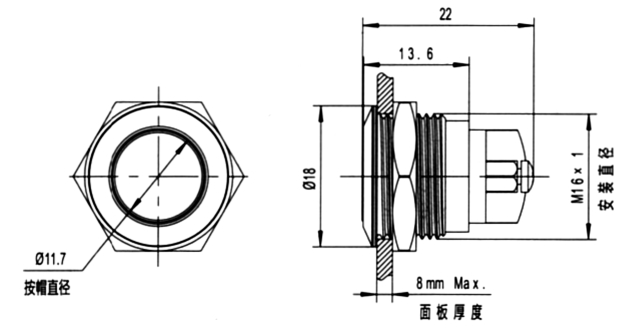

Drawing

YL16C-A10P

YL16C-A10P YL16C-A10PYL16C-A10P

YL16C-A10P YL16C-A10P YL16C-A10P

3.1 3.2 3.3

Product introduction : Vandal-resistant metal push button switches are designed to withstand intentional tampering and rough use, making them suitable for use in public access control and security systems. With its sturdy structure and tamper-proof design, it is widely used in automatic doors, security doors and access control systems in public facilities and commercial buildings.

Application : Access Control and Security: These switches play a vital role in access control systems, security gates, and automated entry systems to ensure the safe and secure operation of public and commercial facilities.
